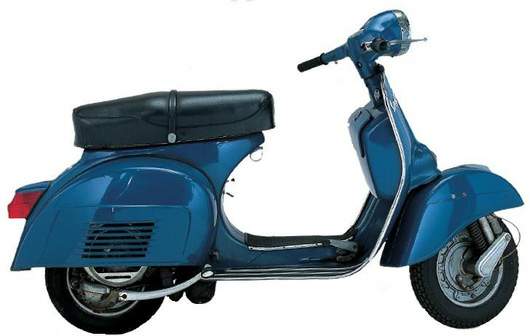

Vespa 180 Rally (1968-73) technical specifications
Vespa 180 Rally is produced in 1968-73. Engine is Four stroke, single cylinder, displacement 180.1 cc / 11 cub in , produces power 7.6 kW / 10.3 hp @ 5700 rpm. Vespa 180 Rally top speed is 100 km/h / 62 mph. Vespa 180 Rally weighs 102 kg / 225 lbs. Vespa 180 Rally has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | 180 Rally |
| Years: | 1968-73 |
| Production: | 26 405 units |
| Engine: | Four stroke, single cylinder |
| Capacity: | 180.1 cc / 11 cub in |
| Bore x Stroke: | 63.5 x 57 mm |
| Compression: | 8:1 |
| Carburetor: | Dell'Orto SI 20/20 D |
| Cooling: | Air cooled, forced |
| Fuel Mixture: | 1:50 |
| Ignition: | Contact breaker and coil, 35W |
| Starting: | Kick start |
| Battery: | 6V |
| Clutch: | Wet, multiplate |
| Max Power: | 7.6 kW / 10.3 hp @ 5700 rpm |
| Transmission: | 4 Speed, grip-shift, constant mesh |
| Gear Ratios: | 1st 14.47 / 2nd 9.84 / 3rd 6.81 / 4th 5.08:1 |
| Final Drive: | Direct drive |
| Frame: | Pressed sheet steel, streamlined monocoque structure |
| Front Suspension: | Helicoidal springs and hydraulic shock absorber |
| Rear Suspension: | Helicoidal springs and hydraulic shock absorber |
| Front Brakes: | 125 mm drum |
| Rear Brakes: | 127 mm drum |
| Wheels: | Cast with cooling fins |
| Front Tyre: | 3.5 x 10" |
| Rear Tyre: | 3.5 x 10" |
| Dimensions: | Length: 1770 mm / 70 in Width: 670 mm / 26 in Height: 1045 mm / 41 in |
| Wheelbase: | 1230 mm / 48 in |
| Dry Weight: | 102 kg / 225 lbs |
| Fuel Capacity: | 8.2 L / 2.2 US gal |
| Consumption average: | 2.7 L/100 km / 37 km/l / 87 US mpg |
| Top Speed: | 100 km/h / 62 mph |
