Triumph Trophy S.E. (2013) technical specifications

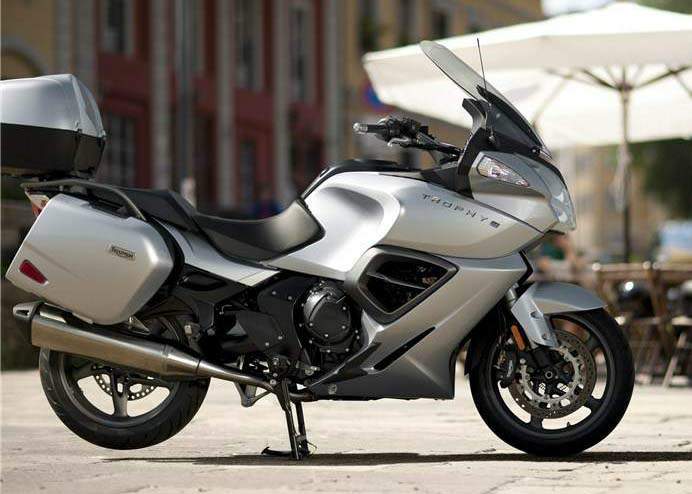

Triumph Trophy S.E. is produced in 2013. Engine is Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder, displacement 1215 cc / 74.1 cu in , produces power 99 kW / 134.6 hp @ 8900 rpm and 120 Nm / 12.24 kgf-m / 88.5 ft-lb @ 6450 rpm. Triumph Trophy S.E. wet weight is 301 kg / 662 lbs. Triumph Trophy S.E. has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Trophy S.E.
Years:	2013
Engine:	Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity:	1215 cc / 74.1 cu in
Bore x Stroke:	85 x 71.4 mm
Cooling System:	Liquid-cooled
Compression Ratio:	11.0:1
Oil Capacity:	4.0 Litres / 1.1 US gal . 0.9 Imp gal
Exhaust:	Stainless steel 3 into 1, side mounted stainless steel silencer
Induction:	Ride by wire, fuel injection
Ignition:	TCI (Transistor Controlled Ignition)
Spark Plug:	NGK, DPR8EA-9
Starting:	Electric
Battery:	12V, 18Ah
Max Power:	99 kW / 134.6 hp @ 8900 rpm
Max Torque:	120 Nm / 12.24 kgf-m / 88.5 ft-lb @ 6450 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	Shaft
Frame:	Aluminum beam twin-spar, swingarm single-sided, cast aluminum alloy with shaft drive
Front Suspension:	WP 43 mm upside down forks, manually adjustable rebound and damping
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	WP monoshock with remote oil reservoir, manually adjustable hydraulic preload, manually adjustable rebound damping
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2x 320 mm floating discs, Nissin 4-piston calipers, linked brakes (front brakes partially activated by rear), ABS (non-switchable), Front Brake Master Cylinder Nissin integrated reservoir master cylinder 14mm diameter
Rear Brakes:	Single 282mm disc, Nissin 2-piston sliding caliper, ABS (nonswitchable)
Front Tyre:	120/70 ZR17
Rear Tyre:	190/55 ZR17
Rake:	27.0º
Trail:	119 mm / 4.7 in
Dimensions:	Length 2235 mm / 87.7 in Width 975 mm / 38.3 in Heigh: 1435 mm / 56.4 in
Wheelbase:	1490 mm / 58.6 in
Seat Height:	770 mm / 30.3in - 790mm / 31.1in
Wet Weight:	301 kg / 662 lbs
GVWR:	481 kg / 1060 lbs
Fuel Capacity:	26 Litres / 6.9 US gals / 5.7 Imp gal
