Triumph Trophy 900 (1993-95) technical specifications

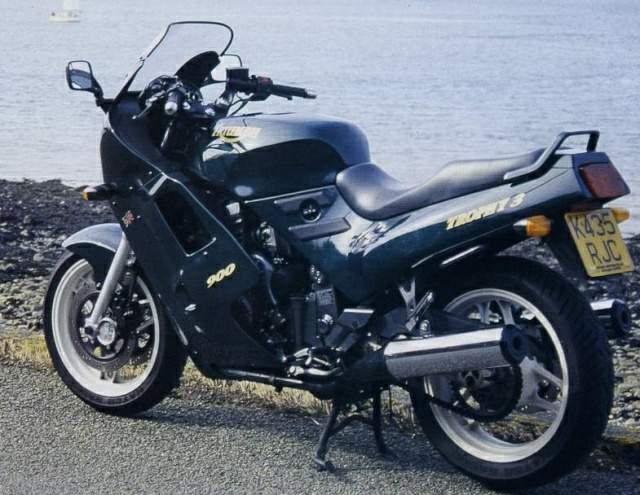

Triumph Trophy 900 is produced in 1993-95. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder., displacement 885 cc / 54 cu in , produces power 71.4 kW / 98 hp @ 9000 rpm and 83 Nm / 8.46 kgf-m / 61.2 ft/lb @ 6500 rpm. Triumph Trophy 900 top speed is 212.5 km/h / 132 mph. Triumph Trophy 900 weighs 217 kg / 478.4 lbs. Triumph Trophy 900 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Trophy 900 |
| Years: | 1993-95 |
| Engine: | Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder. |
| Capacity: | 885 cc / 54 cu in |
| Bore x Stroke: | 76 x 55 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 10.6:1 |
| Lubrication: | Wet sump |
| Engine Oil: | 10W/40 |
| Induction: | 3 x 36 mm Mikuni carburetors |
| Ignition: | TCI (Transistor Controlled Ignition) |
| Starting: | Electric |
| Spark Plug: | NGK, DPR8EA-9 |
| Max Power: | 71.4 kW / 98 hp @ 9000 rpm |
| Max Power Rear Wheel: | 68.1 kW / 91.3 hp @ 9000 rpm |
| Max Torque: | 83 Nm / 8.46 kgf-m / 61.2 ft/lb @ 6500 rpm |
| Clutch: | Wet, cable operated |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Frame: | Steel, trellis frame |
| Front Suspension: | 43 mm Telescopic forks |
| Rear Suspension: | Tri-link rising rate with adjustable preload. |
| Front Brakes: | 2 x 296 mm Floating discs, 4 piston Nissin calipers |
| Rear Brakes: | Single 255 mm disc, 2 piston Nissincaliper |
| Front Tyre: | 120/70 VR17 |
| Rear Tyre: | 160/60 VR18 |
| Rake: | 27o |
| Trail: | 4.1 in |
| Wheelbase: | 1490 mm / 58.7 in |
| Seat Height: | 780 mm / 30.7 in |
| Dry Weight: | 217 kg / 478.4 lbs |
| Wet Weight: | 250 kg / 551 lbs |
| Fuel Capacity: | 25 Litres / 6.6 US gal / 5.5 Imp gal |
| Consumption Average: | 6.8 L/100 km / 14.8 km/l / 34.8 US mpg / 41.8 Imp mpg |
| Braking 60 km/h - 0: | 14.5 m / 47.6 ft |
| Braking 100 km/h - 0: | 41.4 m / 135.8 ft |
| Standing ¼ Mile: | 12.4 sec / 176.0 km/h / 109 mph |
| Top Speed: | 212.5 km/h / 132 mph |
