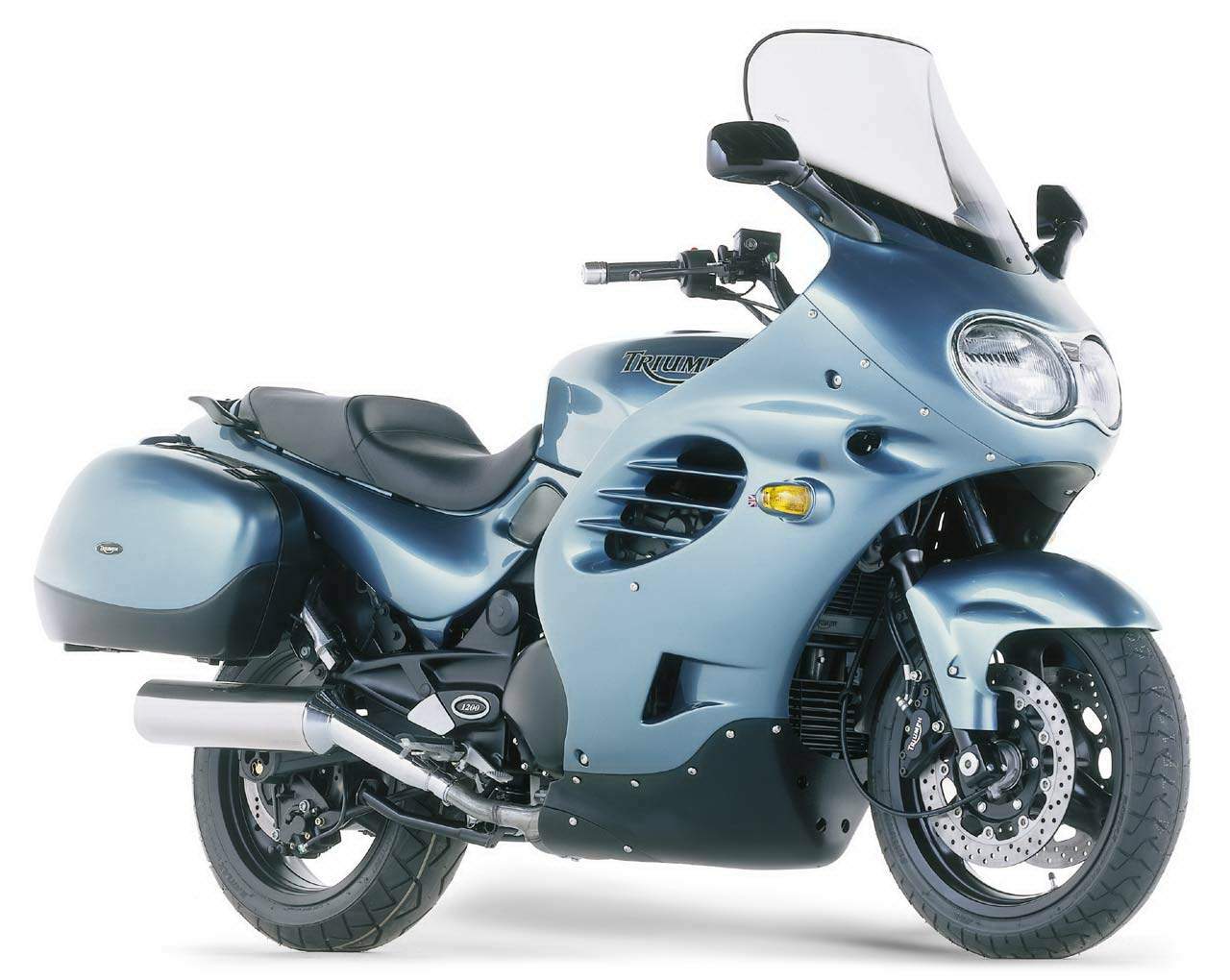

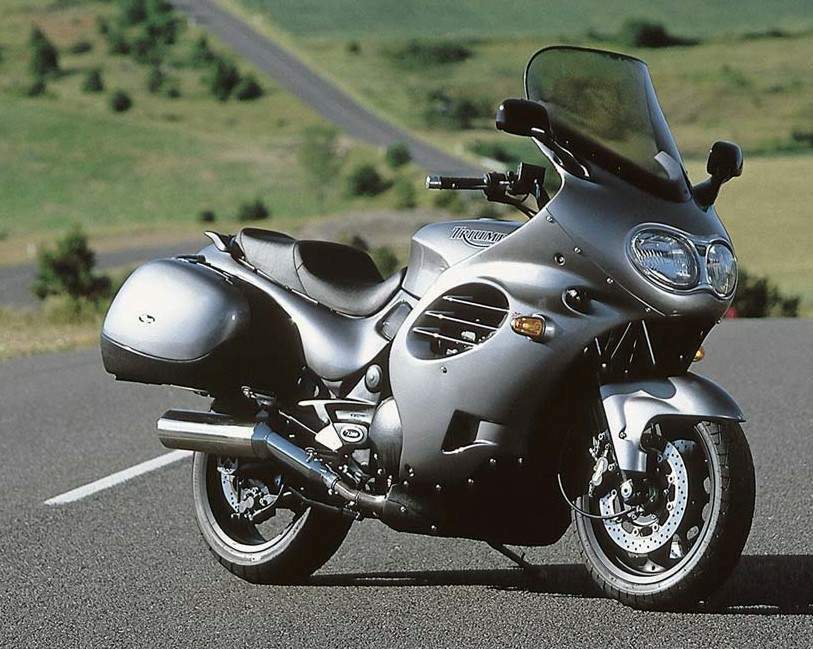

Triumph Trophy 1200 (2002-03) technical specifications
Triumph Trophy 1200 is produced in 2002-03. Engine is Four stroke, transverse four cylinder, DOHC, displacement 1180 cc / 72 cu in , produces power 78.7 kW / 108 hp @ 9000 rpm and 104 Nm / 10.6 kg-m / 76.7 ft-lb @ 5000 rpm. Triumph Trophy 1200 weighs 235 kg / 518 lbs. Triumph Trophy 1200 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Trophy 1200 |
| Years: | 2002-03 |
| Engine: | Four stroke, transverse four cylinder, DOHC |
| Capacity: | 1180 cc / 72 cu in |
| Bore x Stroke: | 76 x 65 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 10.6:1 |
| Lubrication: | Wet sump |
| Engine Oil: | 10W/40 |
| Induction: | 4 x 36 mm Flat side CV carburetors |
| Ignition: | Digital Inductive type |
| Spark Plug: | NGK, DPR8EA-9 |
| Starting: | Electric |
| Max Power: | 78.7 kW / 108 hp @ 9000 rpm |
| Max Torque: | 104 Nm / 10.6 kg-m / 76.7 ft-lb @ 5000 rpm |
| Clutch: | Wet, multiple discs, cable operated |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Frame: | Steel trellis frame |
| Front Suspension: | 43mm Forks with triple rate springs adjustable for compression, rebound damping and spring preload |
| Rear Suspension: | Monoshock with adjustable preload and rebound damping |
| Front Brakes: | 2 x 310 mm Discs. 4 piston calipers |
| Rear Brakes: | Single 255 mm disc, 2 piston caliper |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 170/60 ZR17 |
| Rake: | 27º |
| Trail: | 105 mm / 4.1 in |
| Dimensions: | Length 2152 mm / 84.7in Width (handlebars) 790 mm / 31.1 in Height 1430 mm / 56.3 in |
| Seat Height: | 790 mm / 31.1 in |
| Wheelbase: | 1490 mm / 58.7 in |
| Dry Weight: | 235 kg / 518 lbs |
| Fuel Capacity: | 25 Litres / 6.6 US gal / 5.5 Imp gal |
