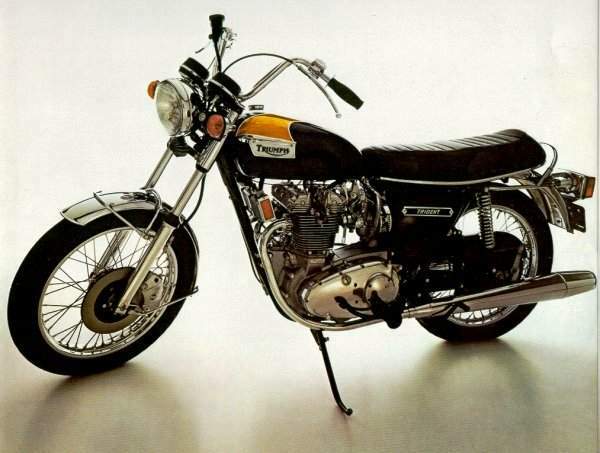

Triumph Trident T150V 750 (1974) technical specifications
Triumph Trident T150V 750 is produced in 1974. Engine is Tansverse three cylinder, pushrod OHV, 2 valves per cylinder, displacement 741 cc / 45.2 cu in , produces power 43.8 kW / 60 hp @ 7250 rpm. Triumph Trident T150V 750 top speed is 194 km/h / 121 mph. Triumph Trident T150V 750 weighs 209 kg / 460 lbs. Triumph Trident T150V 750 has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Trident T150V 750 |
| Years: | 1974 |
| Engine: | Tansverse three cylinder, pushrod OHV, 2 valves per cylinder |
| Capacity: | 741 cc / 45.2 cu in |
| Bore x Stroke: | 67 x 70.5 mm |
| Compression Ratio: | 9.1:1 |
| Cooling System: | Air cooled |
| Lubrication: | Dry sump |
| Induction: | 3 x 27 mm Amal concentric carburetors |
| Ignition: | Individual points & coils |
| Starting: | Kick |
| Max Power: | 43.8 kW / 60 hp @ 7250 rpm |
| Clutch: | Single plate, dry, diaphragm type |
| Transmission: | 5-Speed, constant mesh |
| Final Drive: | Chain, 104 links |
| Gear Ratios: | 1st 12.90 / 2nd 9.21 / 3rd 6.97 / 4th 5.93 / 5th 4.98:1 |
| Frame: | Dual downtube steel cradle |
| Front Suspension: | Telescopic fork, hydraulic, oil damped |
| Rear Suspension: | Swingarm, dual shocks, hydraulic dampers, adjustable preload |
| Front Brakes: | 10 in Hydraulic disc |
| Rear Brakes: | 8 in SLS drum in conical hub |
| Front Wheel: | WM 2-19 |
| Reart Wheel: | WM 3-19 |
| Front Tyre: | 3.25-19, Dunlop K70 |
| Rear Tyre: | 4.10-19, Dunlop K70 |
| Dimensions: | Length: 2184 mm / 86.0 in Width: 840 mm / 33.0 in Height: 1005 mm / 43.5 in |
| Wheelbase: | 1448 mm / 57 in |
| Ground Clearance: | 160 mm / 6.4 in |
| Seat Height: | 813 mm / 32 in |
| Dry Weight: | 209 kg / 460 lbs |
| Wet Weight: | 228 kg / 503 lbs |
| Fuel Capacity: | 9 L / 5.0 US gal / 4.2 Imp gal |
| Top Speed: | 194 km/h / 121 mph |
