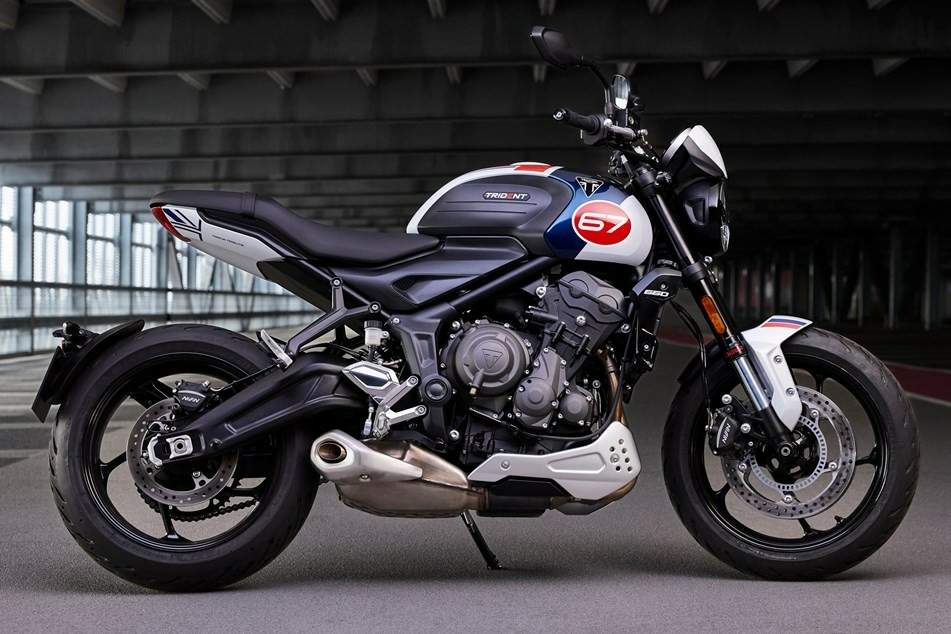

Triumph Trident 660 "Slippery Sam" Tribute Special Edition (2024) technical specifications

Triumph Trident 660 "Slippery Sam" Tribute Special Edition technical specifications

Triumph Trident 660 "Slippery Sam" Tribute Special Edition is produced in 2024. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, displacement 660 cc / 40.2 cu-in , produces power 80 hp / 60 kW @ 10250 rpm and 64 Nm / 47 lb-ft @ 6250 rpm. Triumph Trident 660 "Slippery Sam" Tribute Special Edition wet weight is 189 kg / 417 lbs. Triumph Trident 660 "Slippery Sam" Tribute Special Edition has 6 photos.

Technical specifications

+ Add to 'Compare list'
Model: Trident 660 "Slippery Sam" Tribute Special Edition
Years: 2024
Engine: Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Capacity: 660 cc / 40.2 cu-in
Bore x Stroke: 74.0 x 51.1mm
Compression Ratio: 11.95:1
Cooling System: Liquid cooled
Exhaust: Stainless steel 3 into 1 header system with low single sided stainless steel silencer
Emission: Euro-5
Induction: Multipoint sequential electronic fuel injection with electronic throttle control
Starting: Electric
Max Power: 80 hp / 60 kW @ 10250 rpm
Max Power A2 Restriction: 46 hp / 35 kW @ 8750 rpm
Max Torque: 64 Nm / 47 lb-ft @ 6250 rpm
Max Torque A2 Restriction: 59 Nm / 43.5 lb-ft @ 5250 rpm
Clutch: Wet, multi-plate, slip and assist
Transmission: 6 Speed
Final Drive: X-ring chain
Frame: Tubular steel perimeter frame, twin-sided, fabricated steel Swingarm
Front Suspension: 41mm Showa upside down separate function forks (SFF)
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Showa monoshock RSU, with preload adjustment
Rear Wheel Travel: 134 mm / 5.3 in
Front Brakes: 2x 310mm discs Nissin 2-piston calipers
Rear Brakes: Single 255mm disc Nissin single-piston sliding caliper
ABS System: Standard
Wheels: 5 Spoke cast aluminum
Front Rim: 3.5 x 17
Rear Rim: 5.5 x 17
Front Tyre: 120/70 - R17
Rear Tyre: 180/55 - R17
Rake: 24.6?
Trail: 107.3 mm / 4.2 in
Dimensions: Length 2020 mm / 79.5 in Width 795 mm / 31.3 in (incl Handlebars) Height 1089 mm / 42.9 in (excl Mirrors)
Wheelbase: 1401 mm / 55.2 in
Seat Height: 805 mm / 31.7 in
Wet Weight: 189 kg / 417 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
Instruments: Multi-function instruments with colour TFT screen
