Technical specifications
|
| Model: |

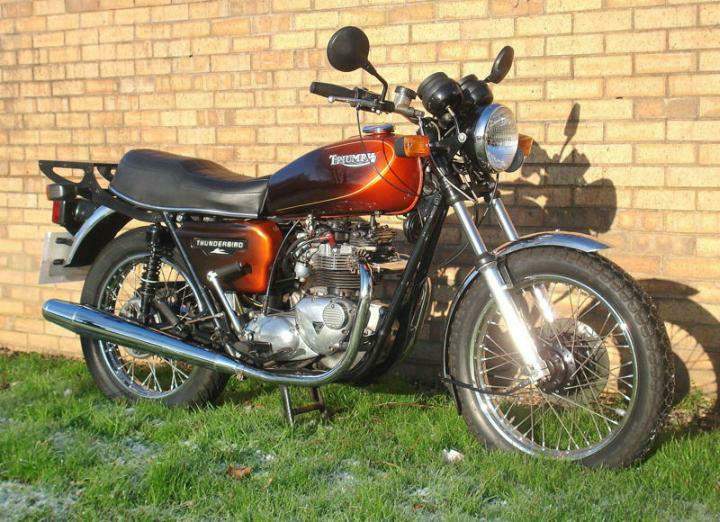

TR65 Thunderbird |
| Years: |
1982-83 |
|
Engine:
|
Four stroke, parallel twin cylinder, OHV
|
|
Capacity:
|
649 cc / 39.6 cu in
|
|
Bore x Stroke:
|
76 x 71.5 mm
|
|
Compression Ratio:
|
8.6:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
Single 30 mm Amal carburetor
|
|
Starting:
|
Kick
|
|
Max Power:
|
31.3 kW / 42 hp @ 6500 rpm
|
|
Max Torque:
|
50.1 Nm / 5.1 kgf-m / 37 ft-lb @ 5500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Telescopic fork
|
|
Rear Suspension:
|
Dual Girling shocks, 5-way preload adjustment
|
|
Front Brakes:
|
Single 250 mm disc
|
|
Rear Brakes:
|
178 mm Drum
|
|
Front Tyre:
|
3.25-19
|
|
Rear Tyre:
|
4.00-18
|
|
Wet Weight:
|
185 kg / 408 lbs
|
|
Dimensions:
|
Length: 2220 mm / 87.4 in
|
|
Wheelbase:
|
1422 mm / 60.0 in
|
|
Seat Height:
|
787 mm / 31.0 in
|
|
Fuel Capacity:
|
18.2 L / 4.8 US gal / 4.0 Imp gal
|
|
Consumption Average:
|
5.2 L/100 km / 45 US mpg / 54 Imp mpg
|
