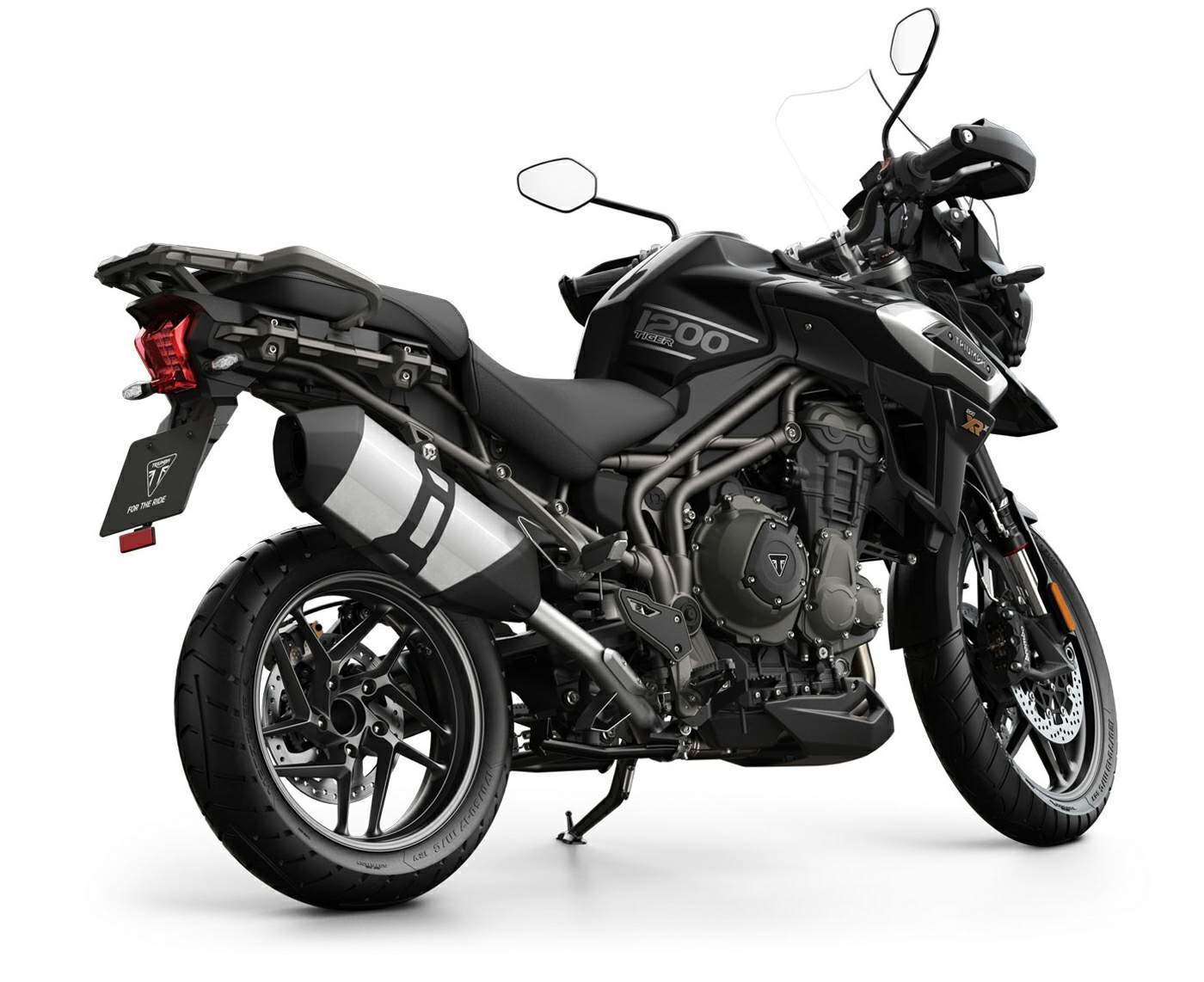

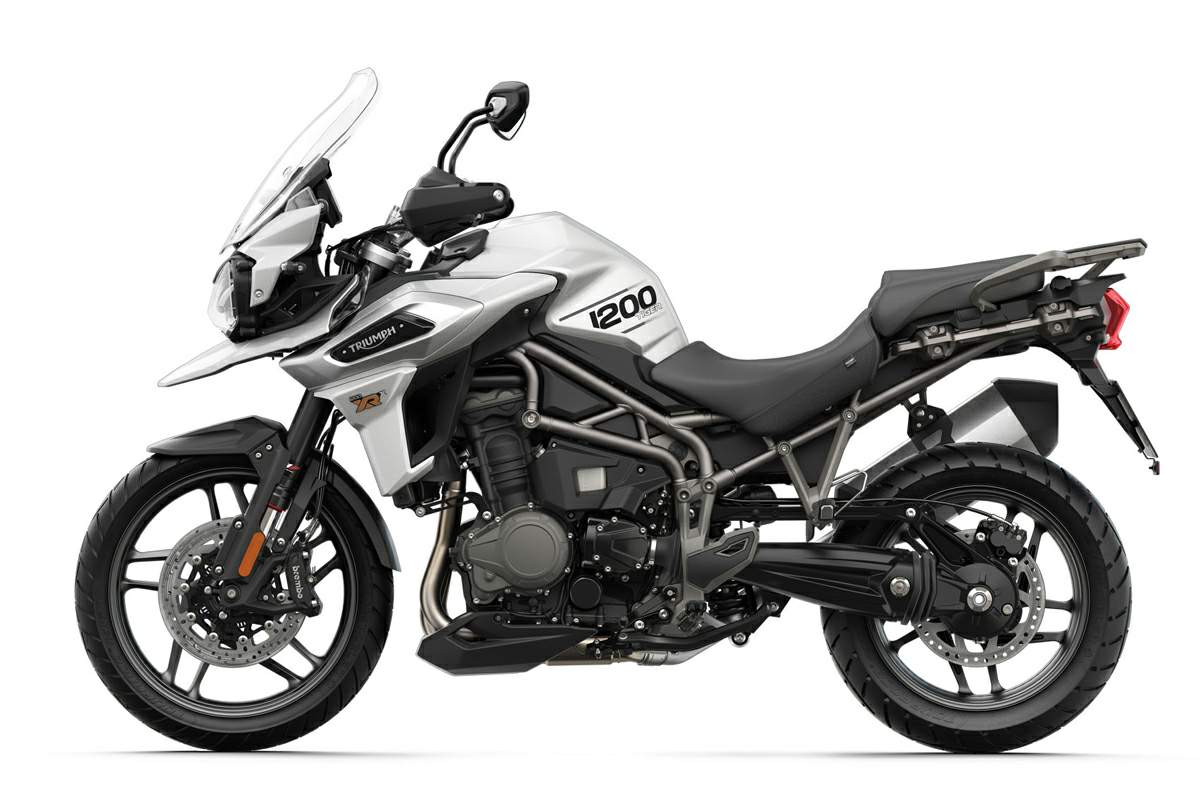

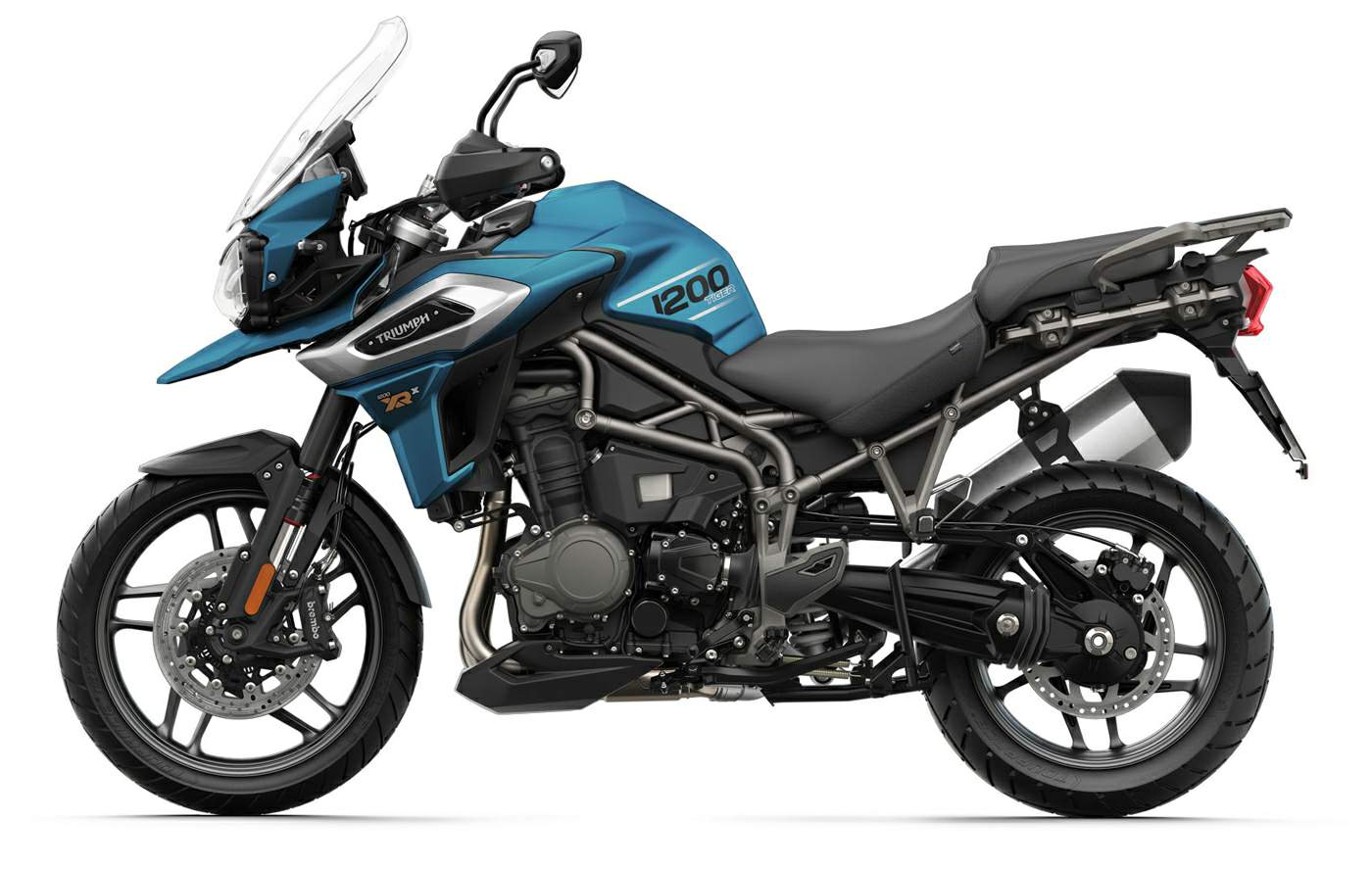

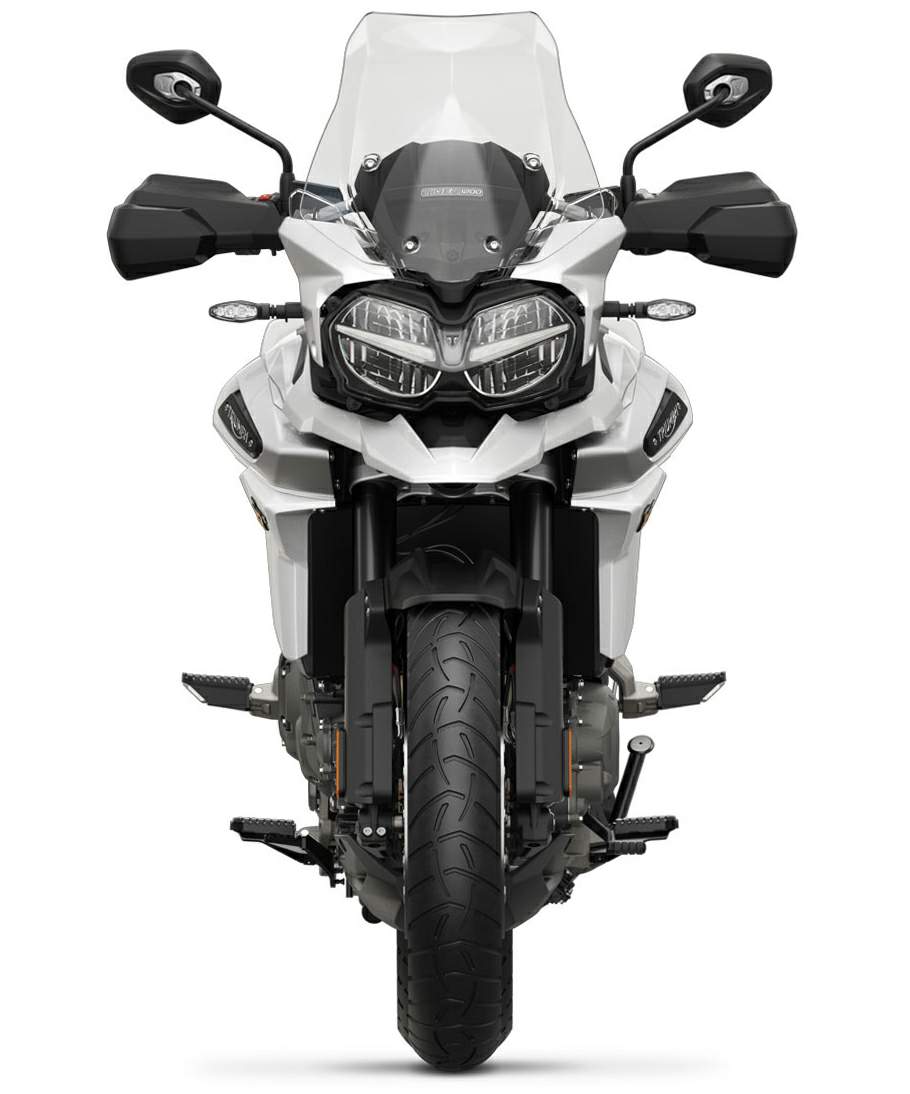

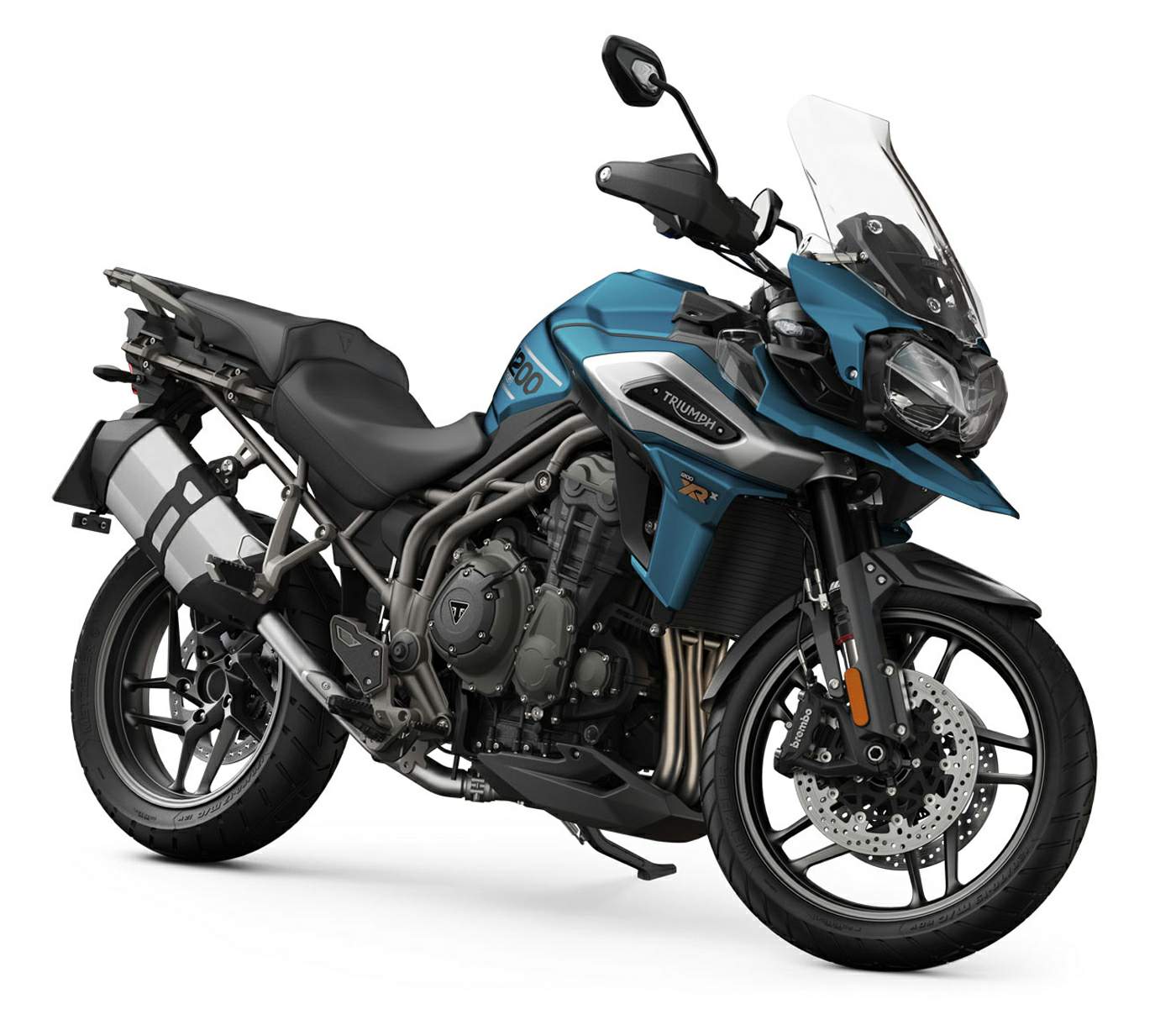

Triumph Tiger Explorer 1200 XRx / Low (2018-19) technical specifications

Triumph Tiger Explorer 1200 XRx / Low is produced in 2018-19. Engine is Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder, displacement 1215 cc / 74.1 cub in , produces power 101 kW / 137 hp / 139 PS @ 9300rpm and 123 Nm / 12.5 kgf-m / 90.7 lb-ft / @ 6200 rpm. Triumph Tiger Explorer 1200 XRx / Low weighs 242 kg / 530lbs. Triumph Tiger Explorer 1200 XRx / Low has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tiger Explorer 1200 XRx / Low
Years:	2018-19
Engine:	Four stroke, transverse three cylinder. DOHC, 4 valves per cylinder
Capacity:	1215 cc / 74.1 cub in
Bore x Stroke:	85 x 71.4mm
Cooling System:	Liquid-cooled
Compression Ratio:	11.0:1
Induction:	Ride by wire, fuel injection
Ignition:	Digital
Starting:	Electric
Exhaust:	3 into 1 header system, side mounted stainless steel silencer
Oil Capacity:	4.0 Litres / 1.1 US gals / 0.88 Imp gal
Max Power:	101 kW / 137 hp / 139 PS @ 9300rpm
Max Torque:	123 Nm / 12.5 kgf-m / 90.7 lb-ft / @ 6200 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	Shaft
Frame:	Tubular steel trellis frame, swingarm single-sided, cast aluminium alloy with shaft drive
Front Suspension:	WP 48 mm upside down forks, adjustable rebound and compression damping
Front Wheel Travel:	190 mm / 7.5 in (XRx low: 168 mm / 6.6 in)
Rear Suspension:	WP monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
Rear Wheel Travel:	193 mm / 7.6 in (XRx low: 158 mm / 6.2 in)
Front Brakes:	2 x 305 mm Floating discs, radially mounted monobloc Brembo 4-piston calipers, switchable ABS
Rear Brakes:	Single 282 mm disc, Nissin 2-piston sliding caliper, switchable ABS
Front Wheel:	10-Spoke, cast aluminium alloy, 19 x 3.0 in
Rear Wheel:	10-Spoke, casr aluminium alloy, 17 x 4.5 in
Front Tyre:	120/70 R19
Rear Tyre:	170/60 R17
Rake:	23.1º
Trail:	99.2 mm / 3.9 in
Dimensions:	Width 830 mm / 32.7 in (with handlebars) Height 1400 mm / 55.1 in (without mirrors)
Wheelbase:	1520 mm / 59.8 in
Seat Height:	837 - 857 mm / 32.9 - 33.7 in (XRx low: 785 - 805 mm / 30.9 in - 31.7 in)
Dry Weight:	242 kg / 530lbs
Fuel Capacity:	20 Litres / 5.3 US gal / 4.4 Imp gal
