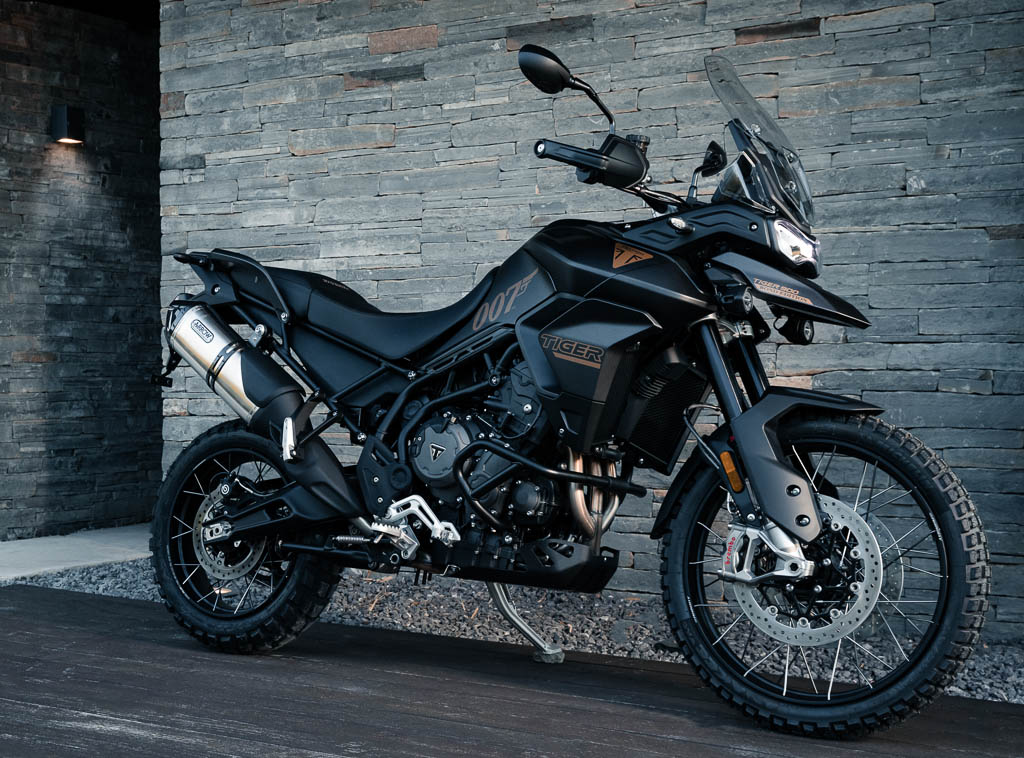

Triumph Tiger 900 Rally / Rally Pro (2022) technical specifications

Triumph Tiger 900 Rally / Rally Pro is produced in 2022. Engine is Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder., displacement 888 cc / 54.1 cu-in , produces power 95.2 PS / 93.9 hp / 70 kW @ 8750 rpm and 87 Nm / 64.1 lb-ft @ 7250 rpm. Triumph Tiger 900 Rally / Rally Pro weighs 201 kg / 443.1 lbs. Triumph Tiger 900 Rally / Rally Pro has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tiger 900 Rally / Rally Pro
Years:	2022
Production:	250 Units
Engine:	Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Capacity:	888 cc / 54.1 cu-in
Bore x Stroke:	78 x 61.9 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.27:1
Exhaust:	Stainless steel 3 into 1 header system, side mounted stainless steel silencer
Emission:	Euro 5
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection
Ignition:	Digital CDI
Starting:	Electric
Max Power:	95.2 PS / 93.9 hp / 70 kW @ 8750 rpm
Max Torque:	87 Nm / 64.1 lb-ft @ 7250 rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	O-ring chain
Frame:	Tubular steel frame, bolt on sub frame
Swingarm:	Twin-sided, cast aluminium alloy
Front Suspension:	Showa 45mm upside down forks, manual preload, rebound damping and compression damping adjustment
Front Wheel Travel:	240 mm / 9.4 in
Rear Suspension:	Showa rear suspension unit, manual preload and rebound damping adjustment
Rear Wheel Travel:	230 mm / 9.0 in
Front Brakes:	2x 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder
Rear Brakes:	Single 255mm disc, Brembo single piston sliding caliper
ABS System:	Optimised Cornering ABS
Wheels:	Spoked Tubeless
Front Wheel:	21 x 2.15 in
Rear Wheel:	17 x 4.25 in
Front Tyre:	90/90-21
Rear Tyre:	150/70R17
Rake:	24.4°
Trail:	145.8 mm / 5.7 in
Dimensions:	Width 935 mm / 36.8 in Height 1452 - 1502 mm / 57.1 - 59.1 in
Wheelbase:	1556 mm / 61.2 in
Seat Height:	850 - 870 mm / 33.4 - 34.2 in
Dry Weight:	201 kg / 443.1 lbs
Fuel Capacity:	20 Litres / 5.28 US gal
