Triumph Tiger 650 TR6R (1973) technical specifications

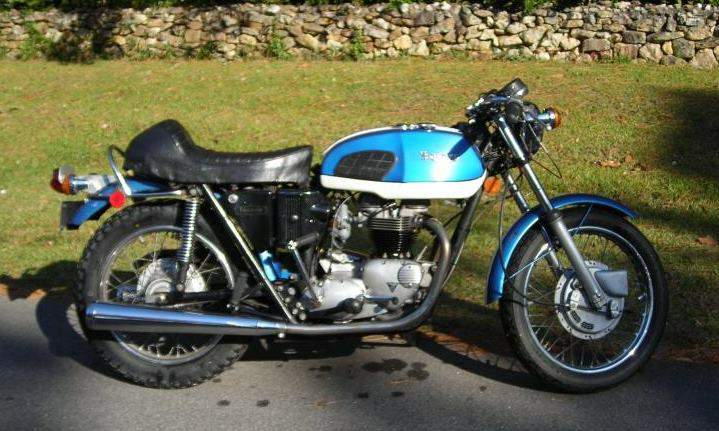

Triumph Tiger 650 TR6R is produced in 1973. Engine is Four stroke, parallel twin cylinder, OHV, displacement 649 cc / 39.6 cu in , produces power 31.3 kW / 42 hp @ 6500 rpm and 50.1 Nm / 5.1 kgf-m / 37 ft-lb @ 5500 rpm. Triumph Tiger 650 TR6R weighs 175 kg / 385 lbs. Triumph Tiger 650 TR6R has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Tiger 650 TR6R |
| Years: | 1973 |
| Engine: | Four stroke, parallel twin cylinder, OHV |
| Capacity: | 649 cc / 39.6 cu in |
| Bore x Stroke: | 76 x 71.5 mm |
| Compression Ratio: | 9.0:1 |
| Induction: | 30 mm Amal concentric carburetor, R930 |
| Ignition: | 12V Battery and coil, Lucas |
| Starting: | Kick |
| Max Power: | 31.3 kW / 42 hp @ 6500 rpm |
| Max Torque: | 50.1 Nm / 5.1 kgf-m / 37 ft-lb @ 5500 rpm |
| Clutch: | Wet, multiplate |
| Transmission: | 4-Speed |
| Final Drive: | Chain |
| Gear Ratios: | 1st 12.08 / 2nd 8.36 / 3rd 6.15 / 4th 4.66:1 |
| Frame: | Welded frame with large diameter oil-containing main tube |
| Front Suspension: | Telescopic fork, 2-way hydraulic damping |
| Rear Suspension: | Swingarm, dual shocks, hydraulically damped, adjustable preload |
| Front Brakes: | Drum, 2LS, 200 mm / 8" |
| Rear Brakes: | Drum, 1LS, 180 mm / 7" |
| Front Tyre: | 3.25 x 19 K70 |
| Rear Tyre: | 4.00 x 18 K70 |
| Dimensions: | Length: 2220 mm / 87.5 in Width: 736 mm / 29.0 in |
| Wheelbase: | 1420 mm / 56 in |
| Ground Clearance: | 178 mm / 7 in |
| Seat Height: | 790 mm / 31 in |
| Dry Weight: | 175 kg / 385 lbs |
| Fuel Capacity: | 18.2 L / 4.8 US gal / 4.0 Imp gal |
