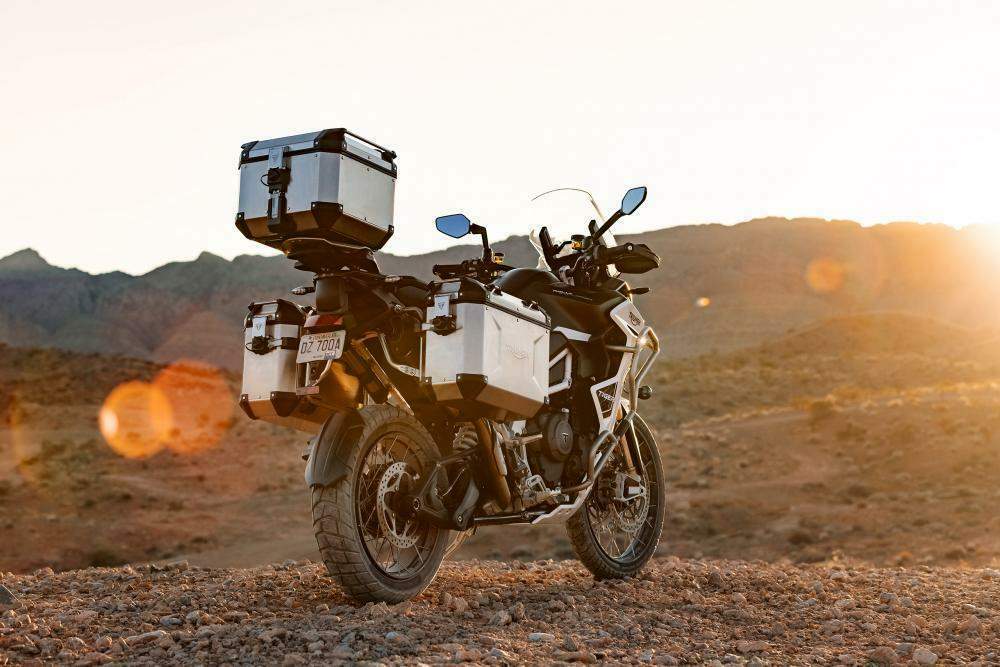

Triumph Tiger 1200 Rally Explorer (2022) technical specifications

Triumph Tiger 1200 Rally Explorer is produced in 2022. Engine is Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder, displacement 1160 cc / 70.7 cub-in , produces power 148 hp / 110.4 kW @ 9,000 rpm and 130 Nm / 96 lb-ft @ 7,000 rpm. Triumph Tiger 1200 Rally Explorer wet weight is 261 kg / 575.4 lbs. Triumph Tiger 1200 Rally Explorer has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Tiger 1200 Rally Explorer
Years:	2022
Engine:	Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder
Capacity:	1160 cc / 70.7 cub-in
Bore x Stroke:	90 x 60.7 mm
Cooling System:	Liquid-cooled
Compression Ratio:	13.2:1
Exhaust:	Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
Induction:	Multipoint sequential electronic fuel injection with electronic throttle control
Emission:	Euro 5
Ignition:	Digital
Starting:	Electric
Max Power:	148 hp / 110.4 kW @ 9,000 rpm
Max Torque:	130 Nm / 96 lb-ft @ 7,000 rpm
Clutch:	Hydraulic, wet, multi-plate, slip & assist
Transmission:	6 Speed
Final Drive:	Shaft
Frame:	Tubular steel frame, with forged aluminium outriggers. Fabricated, bolt-on aluminium rear subframe
Swingarm:	Twin sided "Tri-Link" aluminium swingarm with twin aluminium torque arms
Front Suspension:	Showa 49mm USD forks with semi-active damping
Front Wheel Travel:	220 mm / 8.6 in
Rear Suspension:	Showa monoshock with semi-active damping and automatic electronic preload adjustment
Rear Wheel Travel:	220 mm / 8.6 in
Front Brakes:	2 x 320 mm floating discs, Brembo M4.30 Stylema monoblock radial calipers, Magura HC1 span adjustable radial master cylinder with separate reservoir
Rear Brakes:	Single 282 mm disc, Brembo single piston caliper, rear master cylinder with remote reservoir
ABS:	OC-ABS
Wheels:	Spoked
Front Wheel:	21 x 2.15
Rear Wheel:	18 x 4.25
Front Tyre:	Metzeler Karoo Street 90/90-21 (M/C 54V TL)
Rear Tyre:	Metzeler Karoo Street 150/70R18 (M/C 70V TL)
Rake:	23.7°
Trail:	112 mm / 4.4 in
Dimensions:	Length: 2296 mm / 90.3 in Width: 849 mm / 33.4 in (with handlebars) Height: 1487 1547 mm / in (adjustable screen)
Wheelbase:	1560 mm / 61.4 in
Seat Height:	875-895 mm / 34.4-35.2 in (adjustable)
Wet Weight:	261 kg / 575.4 lbs
Fuel Capacity:	30 Litres / 7.9 US gal
Instuments:	Full-colour 7 TFT instrument pack with My Triumph Connectivity System
