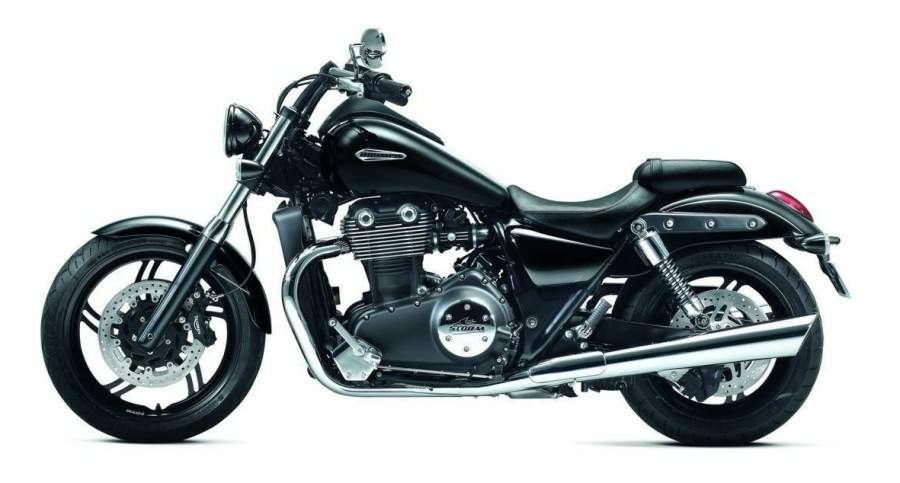

Triumph Thunderbird Storm (2012) technical specifications

Triumph Thunderbird Storm is produced in 2012. Engine is Four stroke, parallel twin, DOHC, 4 valves per cylinder, 270° firing interval., displacement 1699 cc / 103.7 cub in , produces power 73 kW / 98 hp @ 5200 rpm and 156 Nm / 19.9 kgf-m / 115.4 ft-lb @ 2950rpm. Triumph Thunderbird Storm weighs 308 kg / 679 lbs. Triumph Thunderbird Storm has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Thunderbird Storm
Years:	2012
Engine:	Four stroke, parallel twin, DOHC, 4 valves per cylinder, 270° firing interval.
Capacity:	1699 cc / 103.7 cub in
Bore x Stroke:	107.1 x 94.3 mm
Cooling System:	Liquid cooled
Oil Capacity:	4.2 L / 1.1 US gal / 0.92 Imp gal
Exhaust:	Chromed twin-skin stainless steel 2 into 1 into 2, tandem large-volume catalysts in centralized catbox, chrome-plated exhaust
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection with SAI , progressive linkage on throttle
Ignition:	Digital, inductive type via electronic engine management
Starting:	Electric
Max Power:	73 kW / 98 hp @ 5200 rpm
Max Torque:	156 Nm / 19.9 kgf-m / 115.4 ft-lb @ 2950rpm
Clutch:	Wet, multi-plate
Transmission:	6 Speed
Final Drive:	Toothed belt
Frame:	Tubular steel, twin spine, swingarm twin sided, steel
Front Suspension:	Showa 47mm forks with black lowers
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Showa black spring twin shocks with 5 position adjustable preload
Rear Wheel Travel:	95 mm / 3.7 in
Front Brakes:	2 x 310 mm floating discs, Nissin 4 piston fixed calipers, ABS
Rear Brakes:	Single 310 mm fixed disc, Brembo 2 piston floating caliper, ABS
Front Wheel:	Cast aluminium alloy 5-spoke 19 x 3.5 in
Rear Wheel:	Cast aluminium alloy 5-spoke 17 x 6.0 in
Front Tyre:	120/70 R19
Rear Tyre:	200/50 R17 75W
Rake:	32°
Trail:	151 mm / 5.9 in
Dimensions:	Length 2340 mm / 92.1 in Width 880 mm / 34.6 in (Handlebars) Height 1120 mm / 44.1 in (without mirrors)
Wheelbase:	1615 mm / 63.5 in
Seat Height:	702 mm / 27.6 in
Dry Weight:	308 kg / 679 lbs
Wet Weight:	339 kg / 747 lbs
Fuel Capacity:	22 Litres / 5.8 gal
Consumption Average:	@ 90 km/h / 56 mph: 4.2 L/100 km / 23.8 km/l / 56 US mpg / 66.7 Imp mpg
Colours:	Jet Black, Matt graphite
