Technical specifications
|
| Model: |

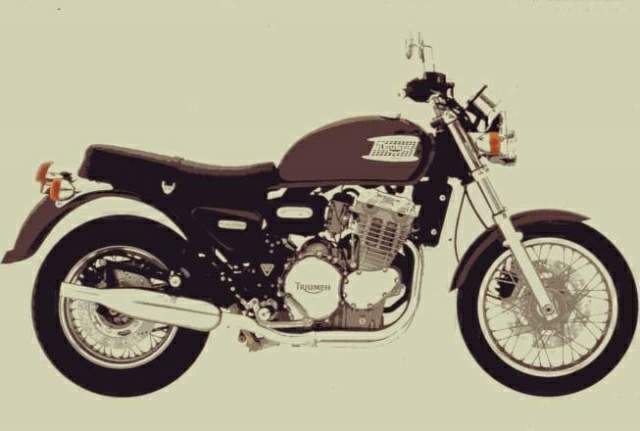

Thunderbird 900 |
| Years: |
1995-04 |
|
Engine:
|
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
|
|
Capacity:
|
885 cc / 54 cu in
|
|
Bore x Stroke:
|
76 x 65 mm
|
|
Compression Ratio:
|
10.0:1
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
3 x 36 mm Mikuni carburetors
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
51 kW / 70 hp @ 8000 rpm (rear tyre 50 kW / 66.9 hp @ 7300 rpm)
|
|
Max Torque:
|
72 Nm / 7.34 kgf-m / 53.1 lb-ft@ 4800 rpm
|
|
Clutch:
|
Wet, multi-plate
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain, O-ring
|
|
Frame:
|
High tensile steel spine
|
|
Front Suspension:
|
43 mm Telescopic forks
|
|
Rear Suspension:
|
Monoshock, preload adjustable.
|
|
Front Brakes:
|
Single 320 mm disc, 2 piston caliper
|
|
Rear Brakes:
|
Single 285 mm disc, 2 piston caliper
|
|
Front Wheel:
|
3.50 x 18", 36 spoke
|
|
Rear Wheel:
|
3.50 x 16", 40 spoke
|
|
Front Tyre:
|
110/80-18
|
|
Rear Tyre:
|
150/80-16
|
|
Rake:
|
27o
|
|
Trail:
|
106 mm / 4.2 in
|
|
Dimensions:
|
Length: 2250 mm / 88.6 in Width: 860 mm / 33.8 in Height: 1105 mm / 43.5 in
|
|
Wheelbase:
|
1580 mm / 62.2 in
|
|
Seat Hieght:
|
776 mm / 30.5 in
|
|
Dry Weight:
|
220 kg / 485 lbs
|
|
Fuel Capacity:
|
15 Litres / 4.0 US gal / 3.3 Imp gal
|
|
Braking 60 km/h- 0:
|
14.7 m / 48.2 ft
|
|
Braking 100 km/h- 0:
|
42.3 m / 138.8 ft
|
|
Standing ¼ Mile:
|
12.9 sec / 163.5 km/h / 101.6 mph
|
|
Top Speed:
|
191.1 km/h / 118.7 mph
|
