Technical specifications
|
| Model: |

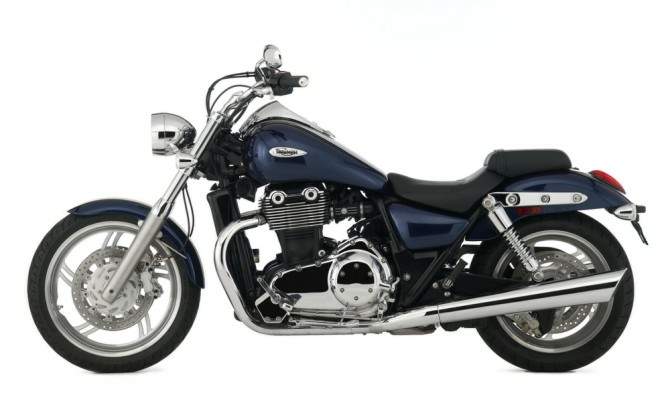

Thunderbird 1600 |
| Years: |
2010 |
|
Engine:
|
Four stroke, parallel twin, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
1597 cc / 97.5 cu in
|
|
Bore x Stroke:
|
103.8 x 94.3mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
9.7:1
|
|
Lubrication:
|
Wet sump
|
|
Oil Capacity:
|
4.2 L / 1.1 US gal . 0.92 Imp gal
|
|
Induction:
|
Multipoint sequential electronic fuel injection with SAI , progressive linkage on throttle
|
|
Ignition:
|
Digital, inductive type via electronic engine management
|
|
Starting:
|
Electric
|
|
Clutch:
|
Wet, multi-plate
|
|
Max Power:
|
63 kW / 85.6 hp @ 4850 rpm
|
|
Max Torque:
|
146 Nm / 14.89 kgf-m / 107.7 lb-ft @ 2750 rpm
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Toothed belt
|
|
Gear Ratio:
|
1st 2.9875:1 / 2nd 1.958:1 / 3rd 1.536:1 / 4th 1.219:1 / 5th 1.029:1 / 6th 0.909:1
|
|
Frame:
|
Tubular steel, twin spine Swingarm Twin sided, steel
|
|
Front Suspension:
|
Showa 47 mm forks.
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Showa chromed spring twin shocks with 5 position adjustable preload.
|
|
Rear Wheel Travel:
|
95 mm / 3.7 in
|
|
Front Brakes:
|
2 x 310 mm Discs, 4 piston calipers
|
|
Rear Brakes:
|
Single 310 mm disc, 2 piston caliper
|
|
Front Tyre:
|
120/70 R19
|
|
Rear Tyre:
|
200/50 R17
|
|
Rake/:
|
32°
|
|
Trail:
|
151.3 mm / 5.96 in
|
|
Dimensions:
|
Length 2350mm / 92.5 in Width 947mm / 37.2 in (Handlebars) Height 1216mm / 47.9 in
|
|
Seat Height:
|
702 mm / 27.6 in
|
|
Wheelbase:
|
1641 mm / 64.6in
|
|
Dry Weight:
|
308 kg / 678 lbs
|
|
Fuel Capacity:
|
22 Litres / 5.8 US gal / 4.8 Imp gal
|
|
Consumption Average:
|
7.0 L/100 km / 14.2 km/l / 33.4 US mpg / 40.1 Imp mpg
|
|
Standing ¼ Mile:
|
13.1 sec
|
|
Top Speed:
|
188.5 km/h / 117.1 mph
|
