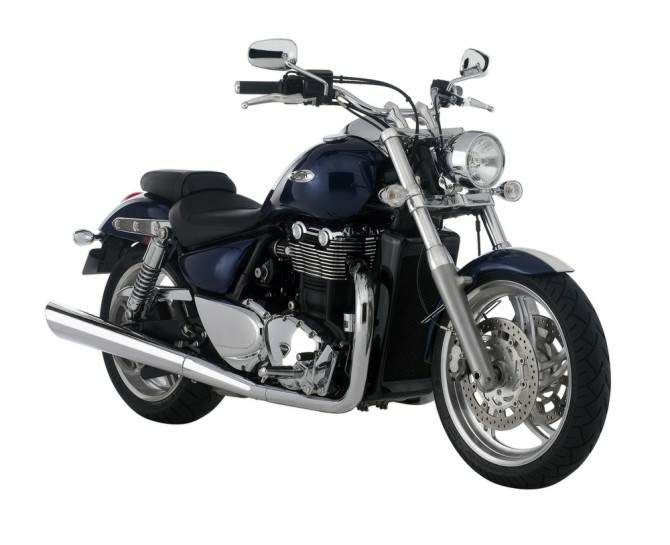

Triumph Thunderbird 1600 (2009) technical specifications
Triumph Thunderbird 1600 is produced in 2009. Engine is Four stroke, parallel twin, DOHC, 4 valves per cylinder., displacement 1597 cc / 97.5 cu in , produces power 63 kW / 85.6 hp @ 4850 rpm and 146 Nm / 14.89 kgf-m / 107.7 lb-ft @ 2750 rpm. Triumph Thunderbird 1600 top speed is 188.5 km/h / 117.1 mph. Triumph Thunderbird 1600 weighs 308 kg / 678 lbs. Triumph Thunderbird 1600 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Thunderbird 1600 |
| Years: | 2009 |
| Engine: | Four stroke, parallel twin, DOHC, 4 valves per cylinder. |
| Capacity: | 1597 cc / 97.5 cu in |
| Bore x Stroke: | 103.8 x 94.3mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.7:1 |
| Lubrication: | Wet sump |
| Oil Capacity: | 4.2 L / 1.1 US gal . 0.92 Imp gal |
| Induction: | Multipoint sequential electronic fuel injection with SAI , progressive linkage on throttle |
| Ignition: | Digital, inductive type via electronic engine management |
| Starting: | Electric |
| Clutch: | Wet, multi-plate |
| Max Power: | 63 kW / 85.6 hp @ 4850 rpm |
| Max Torque: | 146 Nm / 14.89 kgf-m / 107.7 lb-ft @ 2750 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Toothed belt |
| Gear Ratio: | 1st 2.9875:1 / 2nd 1.958:1 / 3rd 1.536:1 / 4th 1.219:1 / 5th 1.029:1 / 6th 0.909:1 |
| Frame: | Tubular steel, twin spine Swingarm Twin sided, steel |
| Front Suspension: | Showa 47 mm forks. |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Showa chromed spring twin shocks with 5 position adjustable preload. |
| Rear Wheel Travel: | 95 mm / 3.7 in |
| Front Brakes: | 2 x 310 mm Discs, 4 piston calipers |
| Rear Brakes: | Single 310 mm disc, 2 piston caliper |
| Front Tyre: | 120/70 R19 |
| Rear Tyre: | 200/50 R17 |
| Rake/: | 32° |
| Trail: | 151.3 mm / 5.96 in |
| Dimensions: | Length 2350mm / 92.5 in Width 947mm / 37.2 in (Handlebars) Height 1216mm / 47.9 in |
| Seat Height: | 702 mm / 27.6 in |
| Wheelbase: | 1641 mm / 64.6in |
| Dry Weight: | 308 kg / 678 lbs |
| Fuel Capacity: | 22 Litres / 5.8 US gal / 4.8 Imp gal |
| Consumption Average: | 7.0 L/100 km / 14.2 km/l / 33.4 US mpg / 40.1 Imp mpg |
| Standing ¼ Mile: | 13.1 sec |
| Top Speed: | 188.5 km/h / 117.1 mph |
