Technical specifications
|

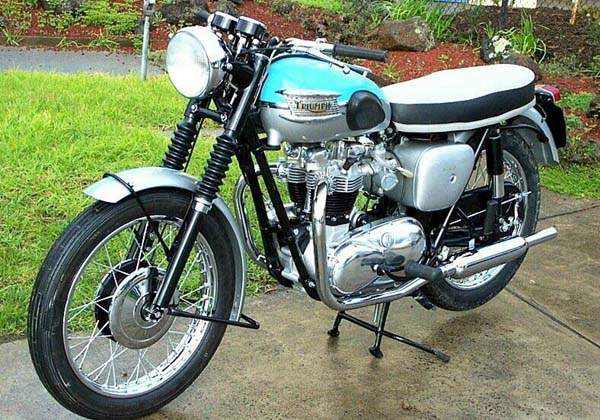

| Model: |
T120 Bonneville 650 |
| Years: |
1960-61 |
|
Engine:
|
Four stroke, parallel twin, OHV
|
|
Capacity:
|
649 cc / 39.6 cu in
|
|
Bore x Stroke:
|
71 x 82 mm
|
|
Compression Ratio:
|
8.5:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
2 x Amal 1 - 1/6" carburetors
|
|
Ignition:
|
Lucas magneto
|
|
Starting:
|
Kick
|
|
Max Power:
|
34 kW / 46 hp @ 6700 rpm
|
|
Clutch:
|
Wet, multiplate
|
|
Transmission:
|
4 Speed, constant mesh
|
|
Final Drive:
|
Chain, 101 links
|
|
Gear Ratios:
|
1st 11.90 / 2nd 8.25 / 3rd 5.81 / 4th 4.88:1
|
|
Frame:
|
Twin steel downtubes
|
|
Front Suspension:
|
Telescopic forks, hydraulic damping
|
|
Rear Suspension:
|
Swingarm, twin Girling dampers
|
|
Front Brakes:
|
8" SLS drum
|
|
Rear Brakes:
|
7" SLS drum
|
|
Front Tyre:
|
3.25 x 19, Dunlop
|
|
Rear Tyre:
|
4.00 x 18, Dunlop
|
|
Wheelbase:
|
1400 mm / 55.25 in
|
|
Seat Height:
|
770 mm / 30.5 in
|
|
Ground Clearance:
|
127 mm / 5.0 in
|
|
Dry Weight:
|
183 kg / 403 lbs
|
|
Fuel Capacity:
|
US: 13.6 L / 3.6 US gal / 3 Imp gal / UK and other Export: 18 L / 4.8 US gal / 4 Imp gal
|
