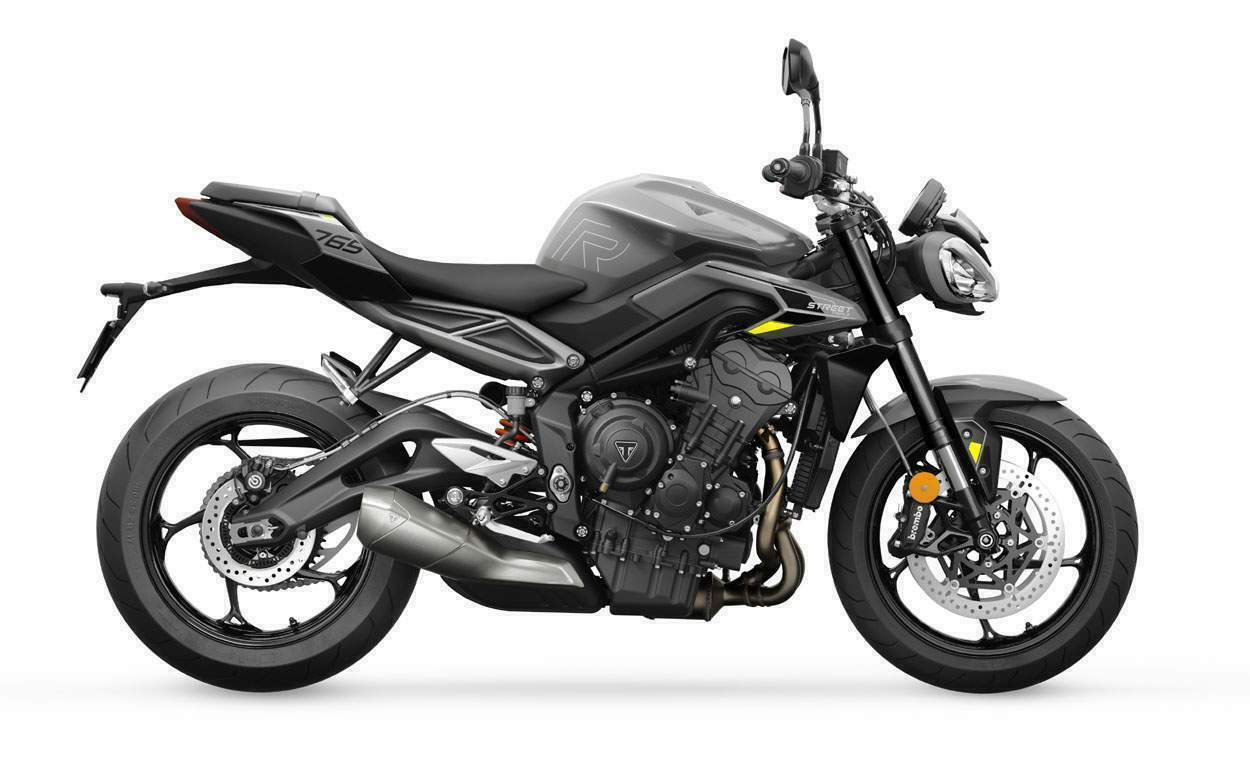

Triumph Street Triple R (2023) technical specifications

Triumph Street Triple R is produced in 2023. Engine is Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder, displacement 765 cc / 46.6 cu-in , produces power 118.4 hp / 88.3 kW @ 11500 rpm and 80 Nm / 59 lb-ft @ 9500 rpm. Triumph Street Triple R wet weight is 189 kg / 416.6 lbs. Triumph Street Triple R has 9 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Street Triple R
Years:	2023
Engine:	Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder
Capacity:	765 cc / 46.6 cu-in
Bore x Stroke:	78 x 53.4 mm
Cooling System:	Liquid-cooled
Compression Ratio:	13.25:1
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection with electronic throttle control
Exhaust:	Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
Emission:	Euro 5
Ignition:	Digital - inductive type
Starting:	Electric
Max Power:	118.4 hp / 88.3 kW @ 11500 rpm
Max Torque:	80 Nm / 59 lb-ft @ 9500 rpm
Clutch:	Wet, multi-plate, slip-assisted
Transmission:	6 Speed with Triumph Shift Assist
Final Drive:	X ring chain
Frame:	Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
Swingarm:	Twin-sided, cast aluminum alloy
Front Suspension:	Showa 41 mm upside down Separate Function Forks - Big Piston (SFF-BP), adjustable compression and rebound damping, and preload adjustment
Front Wheel Travel:	115 mm / 4.5 in
Rear Suspension:	Showa piggyback reservoir monoshock, adjustable compression, rebound and preload adjustment
Rear Wheel Travel:	133 mm / 5.2 in
Front Brakes:	2 x 310 mm floating discs, Brembo M4.32 4-piston radial monobloc calipers
Rear Brakes:	Single 220mm disc, Brembo single-piston caliper
ABS:	Adjustable ABS
Wheels:	5-spoke cast aluminum alloy
Front Wheels:	3.5 x 17
Rear Wheels:	5.5 x 17
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	23.7°
Trail:	97.8 mm / 3.8 in
Dimensions:	Length 2055 mm / 80.9 in Width 792 mm / 31.1 in Height 1047 mm / 41.2 in
Wheelbase:	1402 mm / 55.1 in
Seat Height:	826 mm / 32.5 in
Wet Weight:	189 kg / 416.6 lbs
Fuel Capacity:	15 Litres / 3.9 US gal
