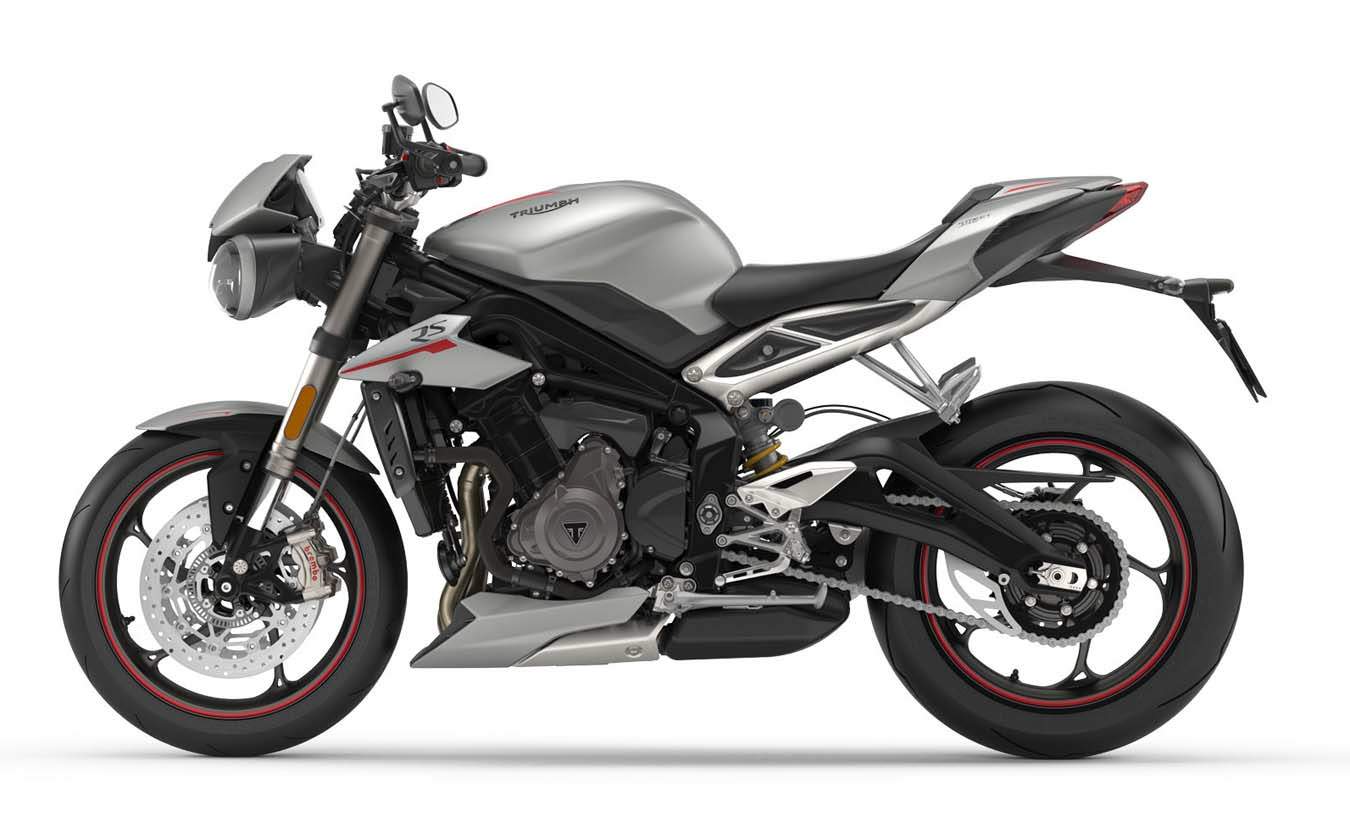

Triumph Street Triple 765RS (2019) technical specifications
Triumph Street Triple 765RS is produced in 2019. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder, displacement 765 cc / 46.6 cu-in , produces power 121 hp / 90 kW @ 11,700rpm and 56.8 lb-ft / 77 Nm @ 10,800 rpm. Triumph Street Triple 765RS weighs 165.5 kg / 365 lbs. Triumph Street Triple 765RS has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Street Triple 765RS |
| Years: | 2019 |
| Engine: | Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder |
| Capacity: | 765 cc / 46.6 cu-in |
| Bore x Stroke: | 78 x 53.4 mm |
| Cooling System: | Liquid-cooled |
| Compression Ratio: | 12.65:1 |
| Lubrication: | Wet sump |
| Induction: | Multipoint sequential electronic fuel injection with SAI. Electronic throttle control |
| Exhaust: | Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer |
| Ignition: | Digital - inductive type |
| Starting: | Electric |
| Max Power: | 121 hp / 90 kW @ 11,700rpm |
| Max Torque: | 56.8 lb-ft / 77 Nm @ 10,800 rpm |
| Clutch: | Wet, multi-plate, slip and assist clutch |
| Transmission: | 6 Speed, close ratio |
| Final Drive: | O ring chain |
| Frame: | Front – Aluminium beam twin spar. Rear – 2 piece high pressure die cast |
| Front Suspension: | Showa 41 mm upside down big piston forks (BPF). Adjustable compression damping, rebound damping and preload. |
| Front Wheel Travel: | 115 mm / 4.5 in |
| Rear Suspension: | Öhlins STX40 piggyback reservoir monoshock. Adjustable spring preload (lock-rings), compression damping and rebound damping |
| Rear Wheel Travel: | 131 mm / 5.1 in |
| Front Brakes: | 2 x 310 mm floating discs, Brembo M50 4-piston radial monobloc calipers |
| Rear Brakes: | Single 220 mm fixed disc, Brembo single piston sliding calliper |
| Front Wheels: | 3.5 x 17 in cast |
| Rear Wheels: | 5.5 x 17 in cast |
| Front Tyre: | 120/70 ZR17 Pirelli Diablo Supercorsa SP |
| Rear Tyre: | 180/55 ZR17 Pirelli Diablo Supercorsa SP |
| Rake: | 23.9º |
| Trail: | 100 mm / 3.9 in |
| Dimensions: | Length 2065 mm / 81.2 in Height 1085 mm / 42.7 in (without mirrors) |
| Wheelbase: | 1410 mm / 55.5 in |
| Seat Height: | 825 mm / 32.4 in |
| Dry Weight: | 165.5 kg / 365 lbs |
| Fuel Capacity: | 17.4 Litres / 4.6 US gal / 3.8 Imp gal |
