Technical specifications
|
| Model: |

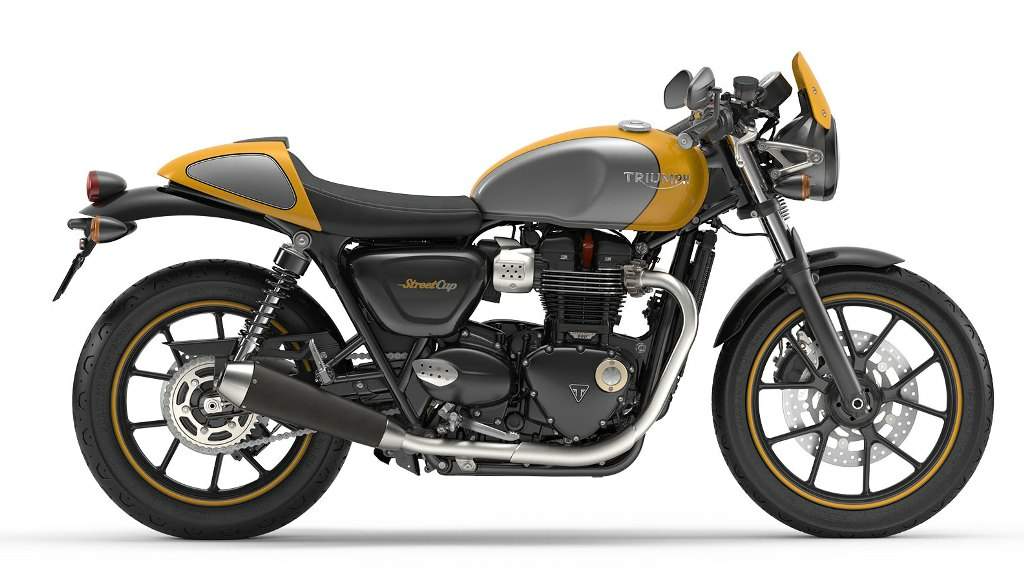

Street Cup |
| Years: |
2019 |
|
Engine:
|
270° Crank angle parallel twin, DOHC, 8 valves
|
|
Capacity:
|
900 cc / 54.9 cu in
|
|
Bore x Stroke:
|
84.6 x 80 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.55:1
|
|
Lubrication:
|
Wet sump
|
|
Exhaust:
|
Brushed stainless steel, 2 into 2 exhaust system with twin silencers
|
|
Emissions Standard:
|
Euro 4
|
|
Induction:
|
Multipoint sequential electronic fuel injection
|
|
Ignition:
|
Digital
|
|
Starting:
|
Electric
|
|
Max Power:
|
40.5 kW / 55 hp @ 5900 rpm
|
|
Max Torque:
|
80 Nm / 8.16 kgf-m / 59 ft-lb @ 3230 rpm
|
|
Clutch:
|
Wet, multi-plate, torque assist
|
|
Transmission:
|
5-Speed
|
|
Final Drive:
|
Chain, X-ring
|
|
Frame:
|
Tubular steel cradle, twin-sided tubular steel swing-arm
|
|
Front Suspension:
|
Kayaba 41 mm cartridge fork
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Kayaba twin shocks with adjustable preload
|
|
Rear Wheel Travel:
|
120 mm / 4.7 in
|
|
Front Brakes:
|
Single 310mm disc, Nissin 2 piston floating caliper, ABS
|
|
Rear Brakes:
|
Single 255mm disc, Nissin 2 piston floating caliper, ABS
|
|
Wheels Front:
|
2.75 x 18, Cast aluminium alloy, multi-spoke
|
|
Wheels Rear:
|
4.25 x 17, Cast aluminium alloy, multi-spoke
|
|
Front Tyre:
|
100/90-R18
|
|
Rear Tyre:
|
150/70-R17
|
|
Rake:
|
24.3°
|
|
Trail:
|
98.7 mm / 3.9 in
|
|
Dimensions:
|
Width: 740 mm / 29.1 in Height: 1105 mm / 43.5 in (without mirrors)
|
|
Wheelbase:
|
1435 mm / 56.5 in
|
|
Seat Height:
|
780 mm / 30.7 in
|
|
Dry Weight:
|
200 kg / 441 lbs
|
|
Fuel Capacity:
|
12 L / 3.2 US gal / 2.7 Imp gal
|
