Technical specifications
|
| Model: |

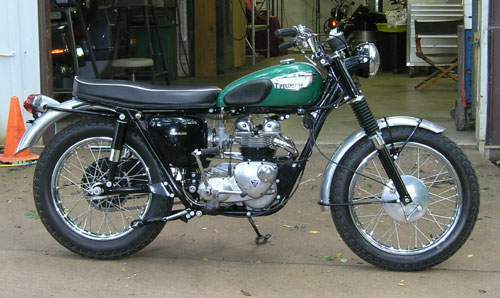

Sport Tiger T100SC |
| Years: |
1959-74 |
|
Engine:
|
Four stroke, parallel twin, OHV
|
|
Capacity:
|
490 cc / 29.9 cub in.
|
|
Bore x Stroke:
|
69 x 65.5mm
|
|
Compression Ratio:
|
9.1:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
Single Amal 25 mm carburetor
|
|
Ignition:
|
AC Magneto
|
|
Starting:
|
Kick
|
|
Max Power:
|
28.3 kW / 38 hp @7000 rpm
|
|
Clutch:
|
Wet, 6 plate
|
|
Transmission:
|
4 Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratio:
|
1st 14.14 / 2nd 9.18 / 3rd 6.95 / 4th 5.70
|
|
Frame:
|
Steal twin downtubes
|
|
Front Suspension:
|
Telescopic forks
|
|
Rear Suspension:
|
Swing arm, adjustable shocks
|
|
Front Brakes:
|
7 in Drum
|
|
Rear Brakes:
|
7 in Drum
|
|
Front Tyre:
|
3.25 -19
|
|
Rear Tyre:
|
4.00 -18
|
|
Wheelbase:
|
1359 mm / 53.5 in
|
|
Ground Clearance:
|
229 mm / 9.0 in
|
|
Seat Height:
|
838 mm / 33 in
|
|
Dry Weight:
|
152 kg / 335 lbs
|
|
Wet Weight:
|
168 kg / 371 lbs
|
|
Oil Capacity:
|
3.4 L / 7.2 US pt / 6.0 Imp pt
|
|
Fuel Capacity:
|
13 7L / 3.6 US gal. gal. 2.9 Imp gal
|
|
Top Speed:
|
169 km/h / 105 mph
|
