Triumph Scrambler Chrome Limited Edition (2023) technical specifications

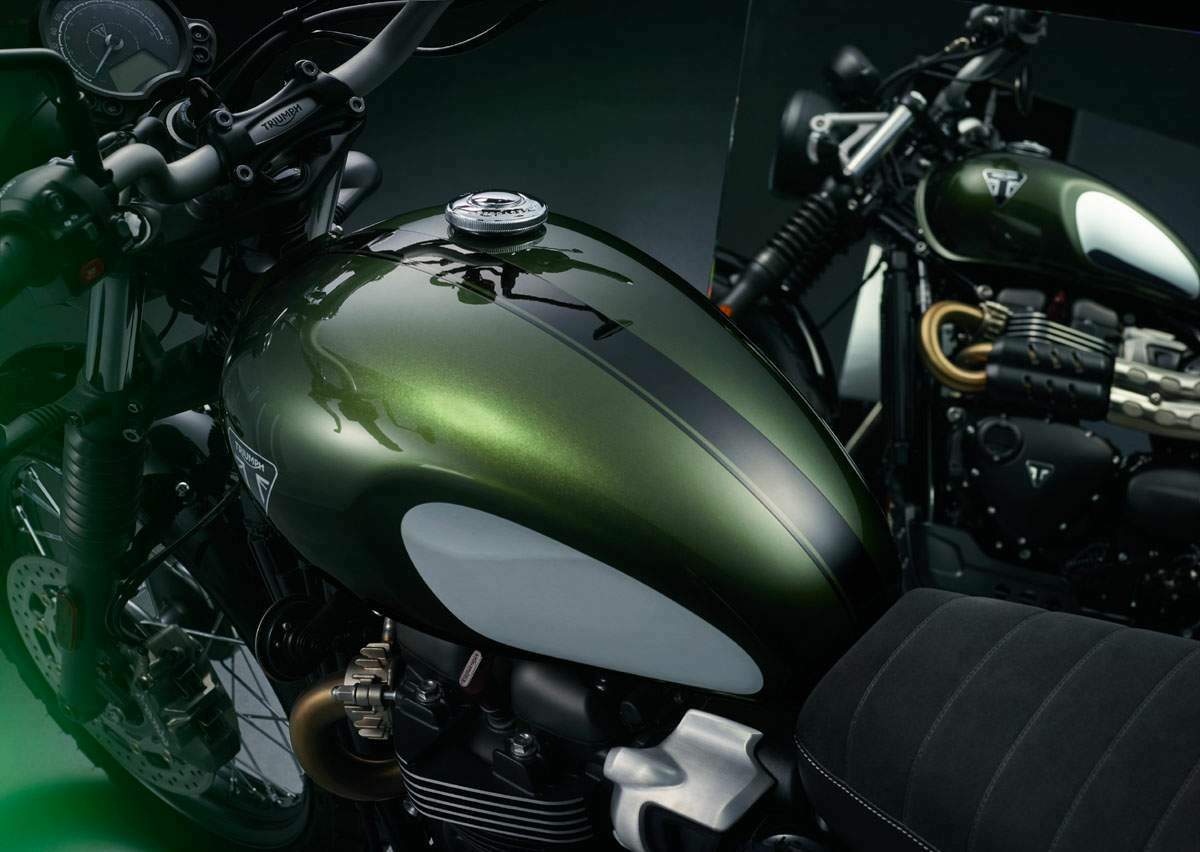

Triumph Scrambler Chrome Limited Edition is produced in 2023. Engine is Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder, displacement 900 cc / 54.9 cu-in , produces power 47.8 kW / 64.1 hp @ 7250 rpm and 80 Nm / 59 lb-ft @ 3250 rpm. Triumph Scrambler Chrome Limited Edition wet weight is 223 kg / 491.6 lbs. Triumph Scrambler Chrome Limited Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Scrambler Chrome Limited Edition
Years:	2023
Engine:	Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder
Capacity:	900 cc / 54.9 cu-in
Bore x Stroke:	84.6 x 80 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Lubrication:	Wet sump
Exhaust:	Brushed stainless steel 2-into-2 exhaust system with twin brushed silencers
Induction:	Multipoint sequential electronic fuel injection, Ride by wire
Emission:	EURO 5
Ignition:	Digital
Starting:	Electric
Max Power:	47.8 kW / 64.1 hp @ 7250 rpm
Max Torque:	80 Nm / 59 lb-ft @ 3250 rpm
Clutch:	Wet, multi-plate torque assist clutch
Transmission:	5-Speed
Final Drive:	O ring chain
Frame:	Tubular steel with twin cradles
Swingarm:	Twin-sided steel fabrication
Front Suspension:	41mm forks with cartridge damping
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Twin shocks with adjustable preload
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	Single 310mm floating disc, Brembo 4 piston fixed axial caliper
Rear Brakes:	Single 255mm disc, Nissin 2-piston floating caliper
ABS:	Standard
Wheels:	Spoked steel rims
Front Rim:	2.5 x 19
Rear Rim:	4.25 x 17
Front Tyre:	100/90-19 Metzeler Tourance
Rear Tyre:	150/70 R17 Metzeler Tourance
Rake:	25.6°
Trail:	109 mm
Dimensions:	Length: 2125 mm / 83.6 in Width: 835 mm / 32.8 in Height: 1180 mm / 46.4 in (without mirrors)
Wheelbase:	1445 mm / 56.8 in
Seat Height:	790 mm / 31.1 in
Wet Weight:	223 kg / 491.6 lbs
Fuel Capacity:	12 Litres / 3.2 US gal
Instruments:	Analogue speedometer with LCD multi-functional display
