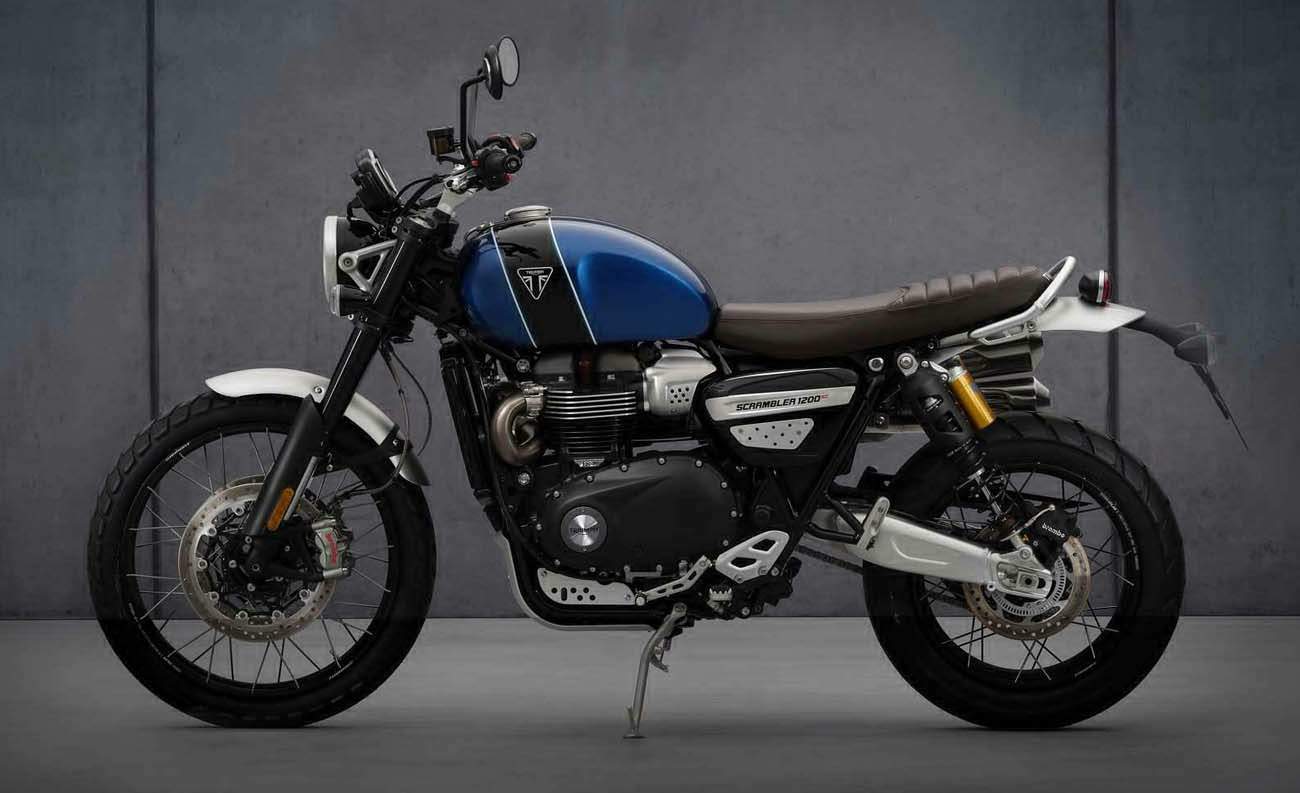

Triumph Scrambler 1200 XC (2021) technical specifications

Triumph Scrambler 1200 XC is produced in 2021. Engine is Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder, displacement 1200 cc / 73.2 cu-in , produces power 89 hp / 66.2 kW @ 7250 rpm and 110 Nm / 81.1 lb-ft @ 4500 rpm. Triumph Scrambler 1200 XC wet weight is 230 kg / 507 lbs. Triumph Scrambler 1200 XC has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Scrambler 1200 XC
Years:	2021
Engine:	Four stroke, 270° crank angle parallel twin, SOHC, 4 valves per cylinder
Capacity:	1200 cc / 73.2 cu-in
Bore x Stroke:	97.6 x 80.0 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Exhaust:	Brushed 2 into 2 exhaust system with brushed high level silencers
Emission:	EURO5
Lubrication:	Wet sump
Induction:	Multipoint sequential electronic fuel injection
Ignition:	Digital – inductive type
Starting:	Electric
Max Power:	89 hp / 66.2 kW @ 7250 rpm
Max Torque:	110 Nm / 81.1 lb-ft @ 4500 rpm
Clutch:	Wet, multi-plate assist
Transmission:	6 Speed
Final Drive:	X ring chain
Frame:	Tubular steel with aluminum cradles, Twin-sided, aluminum, 547 mm long swingarm
Front Suspension:	45mm Showa fully adjustable USD forks
Front Wheel Travel:	200 mm / 7.9 in
Rear Suspension:	Öhlins fully adjustable piggy-back RSUs with twin springs
Rear Wheel Travel:	200 mm / 7.9 in
Front Brakes:	2x 320mm discs, Brembo M50 monoblock calipers, radial master cylinder
Rear Brakes:	Single 255mm disc, Brembo 2-piston floating caliper
ABS:	Switchable ABS
Wheel Front:	36-spoke 21 x 2.15, aluminum rims
Wheel Rear:	32-spoke 17 x 4.25, aluminum rims
Front Tyre:	90/90-21
Rear Tyre:	150/70 R17
Rake:	25.8°
Trail:	121 mm / 4.8 in
Dimensions:	Length 2286 mm / 90.0 in Width 840.7 mm / 33.1 in handlebars Height 1200 mm / 47.2 in without mirrors
Wheelbase:	1530 mm / 60.2 in
Seat Height:	840 mm / 33.1 in
Wet Weight:	230 kg / 507 lbs
Fuel Capacity:	16 Litres / 4.2 US gal
Instruments:	Full-colour TFT instruments
