Triumph Rocket 3 GT (2024) technical specifications

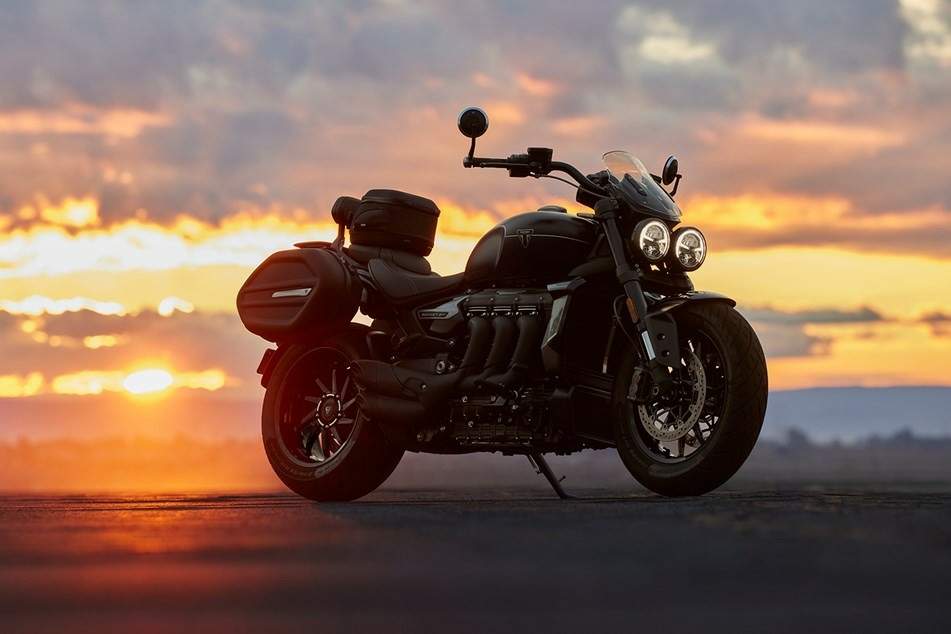

Triumph Rocket 3 GT technical specifications

Triumph Rocket 3 GT is produced in 2024. Engine is Four stroke, inline 3-cylinder, DOHC, displacement 2458 cc / 150 cu-in , produces power 134 kW / 180 hp @ 7000 rpm and 225 Nm / 166 ft-lb @ 4000 rpm. Triumph Rocket 3 GT wet weight is 320kg / 705 lbs. Triumph Rocket 3 GT has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: Rocket 3 GT
Years: 2024
Engine: Four stroke, inline 3-cylinder, DOHC
Capacity: 2458 cc / 150 cu-in
Bore x Stroke: 110.2 x 85.9 mm
Cooling System: Liquid cooled
Compression Ratio: 10.8:1
Induction: Ride-by-Wire, fuel injected
Lubrication: Wet sump
Exhaust: Stainless 3-into-1 headers with 3 exit silencer / CAT box
Emission: EURO 5+
Ignition: Digital inductive type via electronic engine management
Starting: Electric
Max Power: 134 kW / 180 hp @ 7000 rpm
Max Torque: 225 Nm / 166 ft-lb @ 4000 rpm
Clutch: Wet, multi-plate hydraulically operated, torque assist
Transmission: 6 Speed
Final Drive: Shaft, bevel box
Frame: Full aluminum frame
Swingarm: Single-sided, cast aluminum
Front Suspension: Showa 47mm upside-down 1+1 cartridge front forks, compression and rebound adjustement
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjustement
Rear Wheel Travel: 107 mm / 4.2 in
Front Brakes: 2x 320 mm discs with Brembo M4.30 Stylema 4-piston radial monobloc calipers
Rear Brakes: Single 300mm disc, Brembo M4.32 4-piston monobloc caliper
ABS: Cornering ABS
Front Wheel: 17 x 3.5 in cast aluminium
Rear Wheel: 16 x 7.5 in cast aluminium
Front Tyre: 150/80 R17 V
Rear Tyre: 240/50 R16 V
Rake: 27.9?
Trail: 134.9 mm / 5.3 in
Dimensions: Length: 2365 mm / 93.1 in Width: 920 mm / 36 in (with handlebars) Height: 1183 mm / 46.6 in (with mirrors
Wheelbase: 1677 mm / 66 in
Seat Height: 750 mm / 29.5 in
Wet Weight: 320kg / 705 lbs
Fuel Capacity: 18 Litres / 4.76 US gal
Instruments: TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
