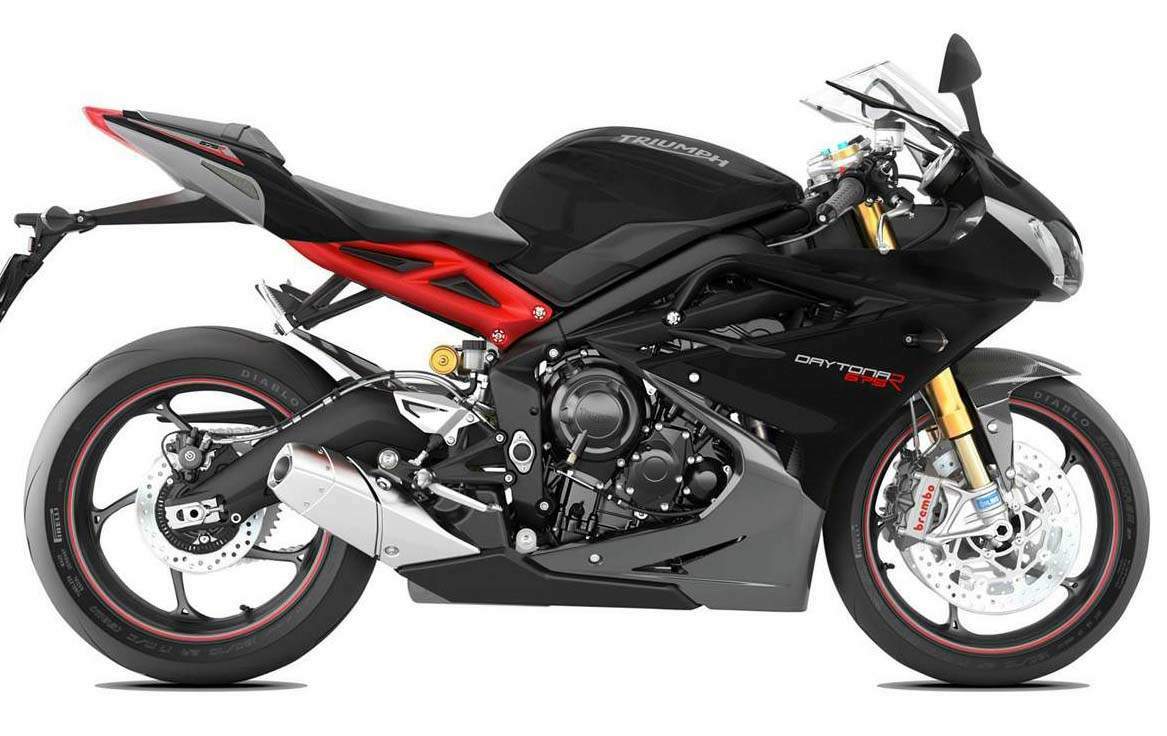

Triumph Daytona 675R (2015-16) technical specifications
![Triumph Daytona 675R technical specifications Triumph Daytona 675R technical specifications](https://www.moto-data.net/media/triumph/pics/triumph-daytona-675r-2015-2016[1].jpg)
Triumph Daytona 675R is produced in 2015-16. Engine is Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder., displacement 675 cc / 41.2 cu in , produces power 95.4 kW / 128 hp @ 12500rpm and 74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm. Triumph Daytona 675R weighs 167 kg / 368lbs. Triumph Daytona 675R has 3 photos.
Technical specifications
+ Add to 'Compare list'Model: | Daytona 675R |
Years: | 2015-16 |
Engine: | Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder. |
Capacity: | 675 cc / 41.2 cu in |
Bore x Stroke: | 76 x 49.6 mm |
Cooling System: | Liquid-cooled |
Compression Ratio: | 13.1:1 |
Lubrication: | Wet sump |
Oil Capacity: | 3.6 Litres / 1.0 US gal / 0.8 Imp gal |
Induction: | Multipoint sequential electronic fuel injection with forced air induction and SAI |
Exhaust: | Stainless steel 3 into 1 system with valve in secondary and under engine silencer |
Ignition: | Digital - inductive type |
Starting: | Electric |
Max Power: | 95.4 kW / 128 hp @ 12500rpm |
Max Torque: | 74 Nm / 7.5 kgf-m / 55 ft.lbs @ 11900rpm |
Clutch: | Wet, multi-plate, slipper. |
Transmission: | 6 Speed |
Final Drive: | O-ring chain |
Frame: | Aluminium beam twin spar. Rear - 2 piece high pressure die cast swingarm braced, twin-sided, aluminium alloy with adjustable pivot position |
Front Suspension: | Öhlins 43mm upside down NIX30 forks with adjustable preload, rebound and compression damping |
Front Wheel Travel: | 120 mm / 4.7 in |
Rear Suspension: | Öhlins TTX36 twin tube monoshock with piggy back reservoir, adjustable preload, rebound and compression damping |
Rear Wheel Travel: | 133 mm / 5.2 in |
Front Wheel: | Front Cast aluminium alloy 5-spoke 17 x 3.5in |
Rear Wheel: | Rear Cast aluminium alloy 5-spoke 17 x 5.5in |
Front Brakes: | 2 x 308 mm Discs, 4 piston calipers, Brembo, switchable ABS |
Rear Brakes: | Single 220 mm disc, 1 piston caliper, Brembo, swotchable ABS |
Front Tyre: | 120/70 ZR 17 |
Rear Tyre: | 180/55 ZR 17 |
Rake: | 23.0º |
Trail: | 87.9 mm / 3.5 in |
Dimensions: | Length 2045 mm / 80.4 in Width (handlebars) 695 mm / 27.3 in Height without mirrors 1112 mm / 43.7 in |
Wheelbase: | 1375 mm / 54.1 in |
Seat Height: | 830 mm / 32.7 in |
Dry Weight: | 167 kg / 368lbs |
Wet Weight: | 184 kg / 406 lbs |
Fuel Capacity: | 17.5 Litres / 4.6 US gal / 3.8 Imp gal |
Consumption Average: | 4.5 L/100 km / 22.3 km/l / 52.4 US mpg / 62.8 Imp mpg |
