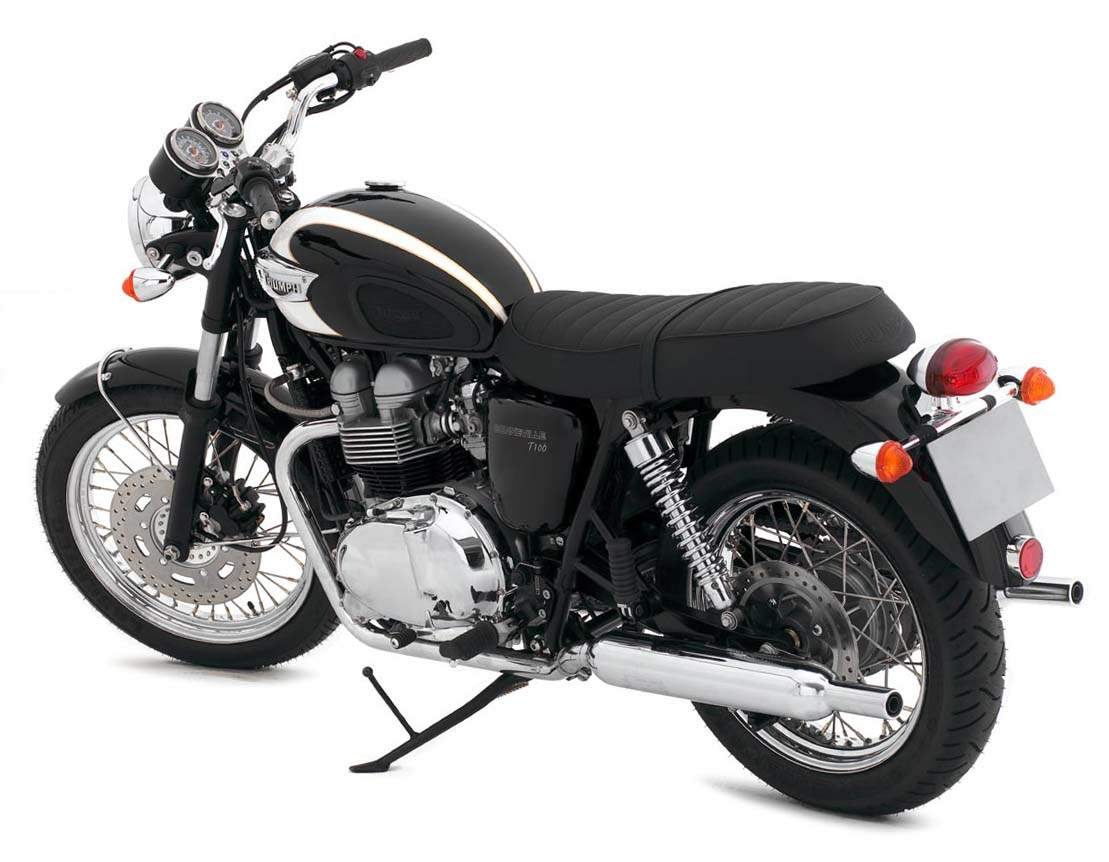

Triumph Bonneville T100 (2007-08) technical specifications
Triumph Bonneville T100 is produced in 2007-08. Engine is Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder, displacement 865 cc / 52.8 cu in , produces power 50 kW / 67 hp @ 7500 rpm and 69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm. Triumph Bonneville T100 weighs 205 kg / 451 lbs. Triumph Bonneville T100 has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Bonneville T100 |
| Years: | 2007-08 |
| Engine: | Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder |
| Capacity: | 865 cc / 52.8 cu in |
| Bore x Stroke: | 90 x 68 mm |
| Cooling System: | Air-cooled |
| Compression Ratio: | 9.2:1 |
| Lubrication: | Wet sump |
| Engine Oil: | Synthetic, 15W/50 |
| Induction: | Twin carburetors, electrically heated |
| Ignition: | Digital |
| Starting: | Electric |
| Max Power: | 50 kW / 67 hp @ 7500 rpm |
| Max Torque: | 69 Nm / 7.04 kgf-m / 51 ft-lb @ 5800 rpm |
| Clutch: | Wet, multi plate |
| Transmission: | 5 Speed |
| Final Drive: | Chain, X-ring |
| Frame: | Tubular steel cradle, swing arm: twin-sided, tubular steel |
| Front Suspension: | 41mm Kayaba telescopic forks |
| Rear Suspension: | Kayaba chrome spring twin shocks with adjustable preload |
| Front Brakes: | Single 310 mm disc, 2 piston calipers |
| Rear Brakes: | Single 255 mm disc, 2 piston calipers |
| Wheels Front: | 36 Spokes, 19 x 2.5 in |
| Wheels Rear: | 36 Spokes, 17 x 3.5 in |
| Front Tyre: | 100/90 19 |
| Rear Tyre: | 130/80 17 |
| Rake: | 28° |
| Trail: | 110 mm / 4.3 in |
| Dimensions: | Length 2250 mm / 88.6 in Width 860 mm / 33.8 in Height 1105 mm / 43.5 in |
| Wheelbase: | 1493 mm / 58.8 in |
| Seat Height: | 775 mm / 30.5 in |
| Dry Weight: | 205 kg / 451 lbs |
| Wet Weight: | 226 kg / 499 lbs |
| Fuel Capacity: | 16.6 Litres / 4.4 US gal / 3.7 Imp gal |
