Triumph Bonneville Bobber Gold Line Edition (2022) technical specifications

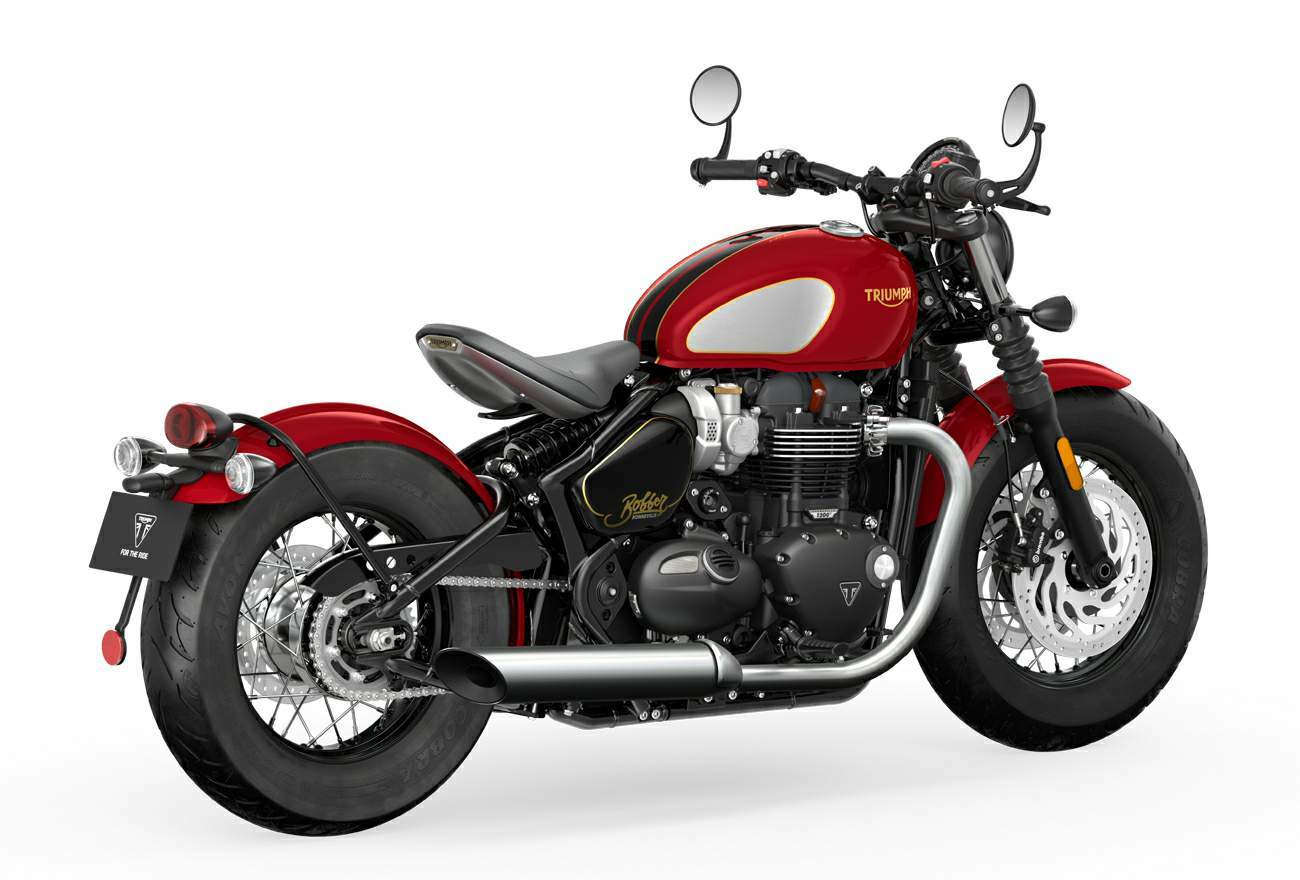

Triumph Bonneville Bobber Gold Line Edition is produced in 2022. Engine is Four stoke, parallel twin, 270° crank angle, SOHC, 4 valve per cylinder, displacement 1198 cc / 73.1 cu in , produces power 57.5 kW / 76.9 hp @ 6100 rpm and 106 Nm / 78.2 lb-ft @ 4000 rpm. Triumph Bonneville Bobber Gold Line Edition wet weight is 251 kg / 553 lbs. Triumph Bonneville Bobber Gold Line Edition has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Bonneville Bobber Gold Line Edition
Years:	2022
Engine:	Four stoke, parallel twin, 270° crank angle, SOHC, 4 valve per cylinder
Capacity:	1198 cc / 73.1 cu in
Bore x Stroke:	97.6 x 80 mm
Compression Ratio:	10.0:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Exhaust:	Brushed stainless steel 2 into 2 twin-skin exhaust system with brushed stainless silencers
Emission:	EURO5
Induction:	Multipoint sequential electronic fuel injection
Ignition:	Digital
Starting:	Electric
Max Power:	57.5 kW / 76.9 hp @ 6100 rpm
Max Torque:	106 Nm / 78.2 lb-ft @ 4000 rpm
Clutch:	Wet, multi-plate, torque assist clutch
Transmission:	6-Speed
Final Drive:	Chain
Frame:	Tubular steel, twin cradle frame
Swingarm:	Twin sided fabrication
Front Suspension:	47 mm Showa cartridge forks
Front Wheel Travel:	90 mm / 3.5 in
Rear Suspension:	Mono-shock RSU with linkage
Rear Wheel Travel:	73 mm / 2.8 in
Front Brakes:	2x 310mm disc, Brembo 2-piston sliding axial calipers
Rear Brakes:	Single 255mm disc, Nissin single piston sliding axial caliper
ABS:	Standard
Front Wheels:	Wire 32-spoke, 16 x 2.5 in
Rear Wheels:	Wire 32-spoke, 16 x 3.5 in
Front Tyre:	130/90 B16
Rear Tyre:	150/80 R16
Rake:	25.4°
Trail:	92.0 mm / 3.6 in
Dimensions:	Length: 2220 mm / 87.4 in Width: 800 mm / 31.5 in Height: 1024 - 1055 mm / 40.3 - 41.5 in
Wheelbase:	1500 mm / 59.1 in
Seat Height:	690 - 700 mm / 27.2 27.6 in
Wet Weight:	251 kg / 553 lbs
Fuel Capacity:	12 Litres / 3.2 US gal
