Technical specifications
|
| Model: |

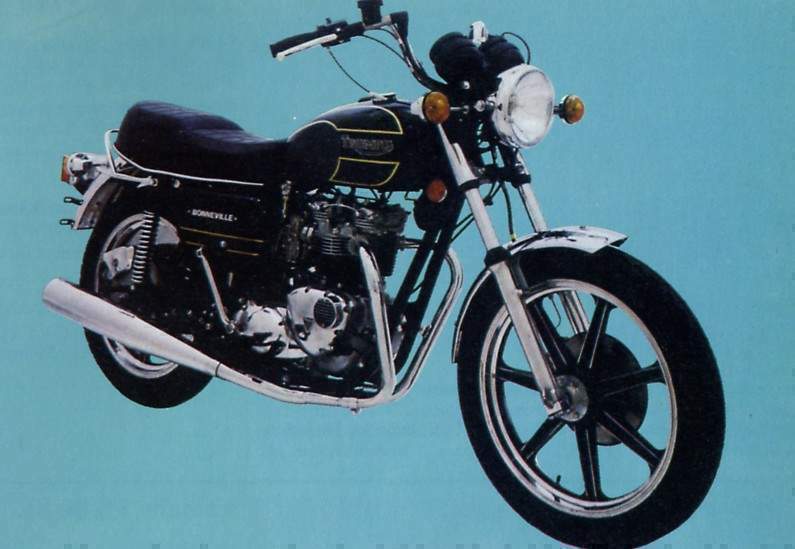

Bonneville 750 T140E Final Edition |
| Years: |
1981 |
|
Engine:
|
Four stroke, parallel twin, OHV, 2 valves per cylinder
|
|
Capacity:
|
744 cc / 45.4 cu in
|
|
Bore x Stroke:
|
76 x 82 mm
|
|
Compression Ratio:
|
8.6:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
2 x 30 mm Amal carburetors
|
|
Ignition:
|
Battery / dual coil / dual points / Lucas
|
|
Starting:
|
Electric and kick
|
|
Max Power:
|
40.3 kW / 54 hp @ 6200 rpm
|
|
Max Torque:
|
56.6 Nm / 5.77 kgf-m / 41.8 ft-lb @5500 rpm
|
|
Clutch:
|
Wet, multiplate
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain, 106 links
|
|
Gear Ratios:
|
1st 12.25 / 2nd 8.63 / 3rd 6.58 / 4th 5.59 / 5th 4.70:1
|
|
Frame:
|
Tubular steel, double front downtubes, oil bearing large tube backbone
|
|
Front Suspension:
|
Telescopic forks
|
|
Rear Suspension:
|
Swingarm, Girling shocks, 3-way spring preload adjustable
|
|
Front Brakes:
|
Single 254 mm disc, 1 piston caliper
|
|
Rear Brakes:
|
Single 254 mm disc, 1 piston caliper
|
|
Front Tyre:
|
3.25-19
|
|
Rear Tyre:
|
4.00-18
|
|
Rake:
|
28o
|
|
Trail:
|
109 mm / 4.3 in
|
|
Wheelbase:
|
1422 mm / 56 in
|
|
Dimensions:
|
Length: 2220 mm / 87.5 in Width: 840 mm / 33.0 in
|
|
Seat Height:
|
813 mm / 32.0 in
|
|
Dry Weight:
|
200 kg / 441 lbs
|
|
Fuel Capacity:
|
18.2 Litres / 4.8 US gal / 4.0 Imp gal
|
|
Consumption:
|
5.5 L/100 km / 18 km/l / 42 US mpg / 51 Imp mpg
|
|
Top Speed:
|
190 km/h / 118 mph
|
|
Road Test:
|
Cycle World 1981
|
