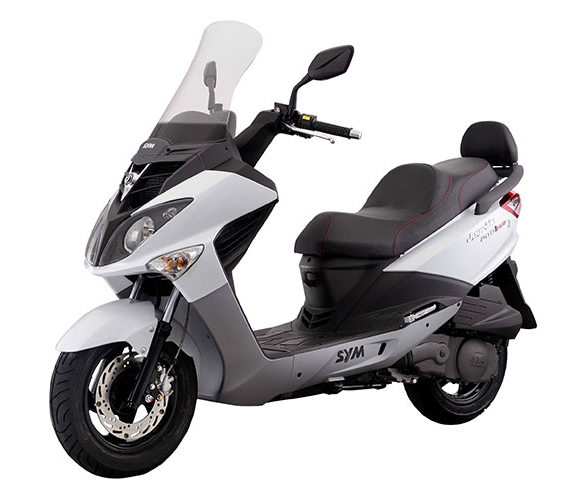

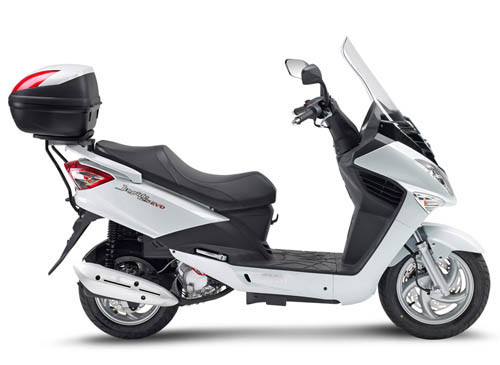

SYM Joyride/RV 125 evo (2014) technical specifications

SYM Joyride/RV 125 evo is produced in 2014. Engine is Single cylinder, 4-stroke, 4V, SOHC, displacement 124.5 cc / 7.6 cub in. SYM Joyride/RV 125 evo top speed is 100 km/h / 63 mph. SYM Joyride/RV 125 evo wet weight is 156 kg / 344 lbs. SYM Joyride/RV 125 evo has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Joyride/RV 125 evo
Years:	2014
Engine:	Single cylinder, 4-stroke, 4V, SOHC
Capacity:	124.5 cc / 7.6 cub in.
Compression Ratio:	10:5:1
Cooling System:	Air cooled, forced air
Engine Oil Capacity:	1.0 L / 2.1 US pints
Transmission Oil Capacity:	0.11 L / 0.23 US pints
Lubrication:	Dry sump
Exhaust:	Single
Fuel System:	Carburetor (CVK)
Induction:	Electronic
Ignition:	CDI
Battery:	12V, 8 Ah (MF)
Starting:	Electric and kick
Spark Plug:	NGK CR 8E
Clutch:	Centrifugal
Maximum Power:	9.2 kW / 12.5 hp @ 8500 rpm
Maximum Torque:	11.2 Nm / 1.14 kgf-m / 8.27 ft/lb @ 6500 rpm
Transmission:	CVT
Final Drive:	Belt
Frame:	Steel, monocuna split steel tube
Front Suspension:	Telescopic fork
Rear Suspension:	Twin sided swing arm, adjustable dampers
Front Brakes:	Single hydraulic disc, 273 mm
Rear Brakes:	Single disc, 200 mm
Wheels:	Aluminium alloy
Front Tyre:	100/90-12 56P
Rear Tyre:	130/70-12 64L
Dimensions:	Length: 2100 mm / 82.7 in. Width: 760 mm / 29.9 in. Height: 1390 mm / 54.7 in.
Wheelbase:	1440 mm / 56.7 in.
Ground Clearance:	140 mm / 5.5 in.
Seat Height:	760 mm / 29.9 in.
Wet Weight:	156 kg / 344 lbs
Fuel Capacity:	7.6 L / 2.0 US gal
Average Fuel Consumption:	2.3 L /100 km / 43 km/l / 101 US mpg
Top Speed:	100 km/h / 63 mph
Climbing Capacity:	28°
