Technical specifications
|

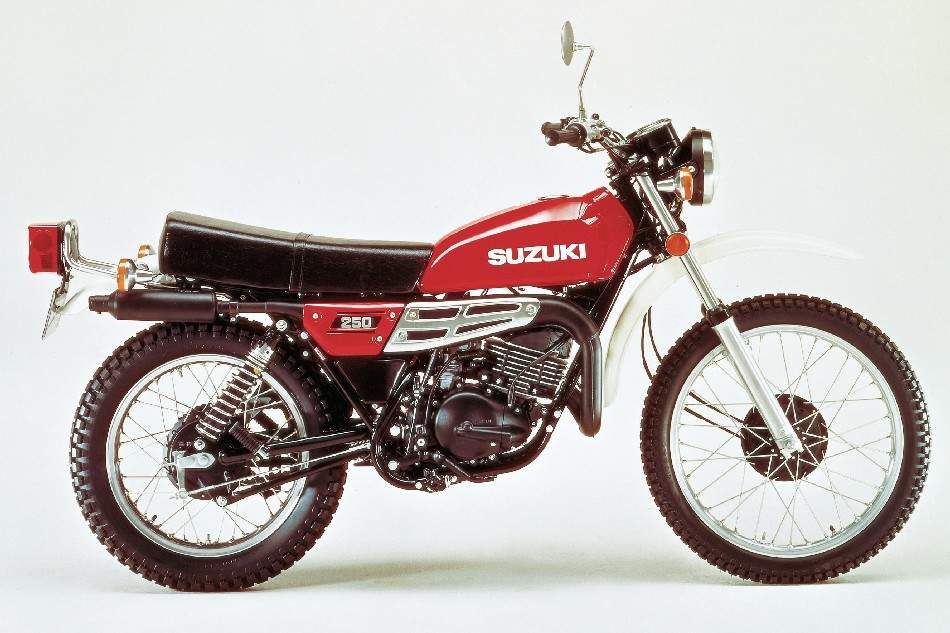

| Model: |
TS 250 |
| Years: |
1976-77 |
|
Engine:
|
Two stroke, single cylinder, reed valve
|
|
Capacity:
|
246 cc / 15.0 cu in
|
|
Bore x Stroke:
|
72 x 64 mm
|
|
Compression Ratio:
|
6.5:1
|
|
Cooling System:
|
Air cooled
|
|
Lubrication System:
|
Fuel/oil mix, Posi-force, CCI
|
|
Exhaust:
|
Single, high drawn
|
|
Induction:
|
Mikuni VN28SS carburetor
|
|
Ignition:
|
Suzuki PEI
|
|
Starting:
|
Kick
|
|
Max Power:
|
17.2 kW / 23 hp @ 6500 rpm
|
|
Max Torque:
|
26.5 Nm / 2.7 kgf-m / 19.6 lb-ft @ 5000 rpm
|
|
Clutch:
|
Wet, multi-plate
|
|
Transmission:
|
5 Speed, constant mesh
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Double cradle, tubular steel
|
|
Front Suspension:
|
Telescopic fork, oil damped
|
|
Front Wheel Travel:
|
175 mm / 6.9 in
|
|
Rear Suspension:
|
Swingarm, dual shocks, coil springs, 5-way adjustable
|
|
Front Brakes:
|
Drum, internal expanding
|
|
Rear Brakes:
|
Drum, internal expanding
|
|
Front Tyre:
|
3.25-19 4PR Trails
|
|
Rear Tyre:
|
4.00-18 4PR Trails
|
|
Dimensions:
|
Length: 2184 mm / 86.0 in Width: 889 mm / 35.0 in Height: 1100 mm / 43.3 in
|
|
Wheelbase:
|
1415 mm / 55.7 in
|
|
Ground Clearance:
|
249 mm / 9.8 in
|
|
Dry Weight:
|
111 kg / 245 lbs
|
|
Oil Capacity:
|
1.1 L / 2.3 US pt / 1.9 Imp pt
|
|
Fuel Capacity:
|
9.1 L / 2.4 US gal / 2.0 Imp gal
|
|
Top Speed (est.):
|
129 km/h / 80 mph
|
