Suzuki TS 250 (1973-75) technical specifications

Suzuki TS 250 technical specifications

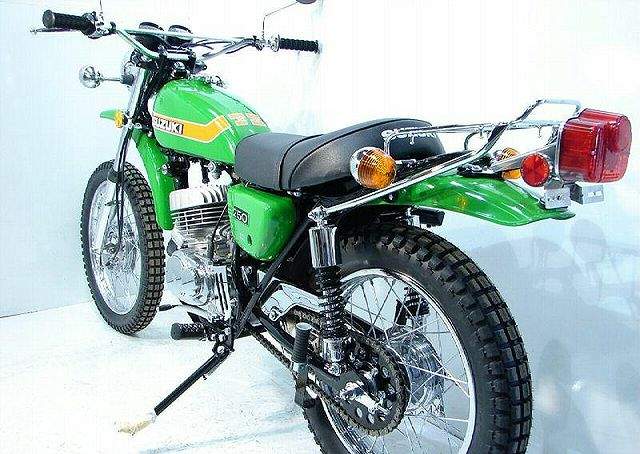

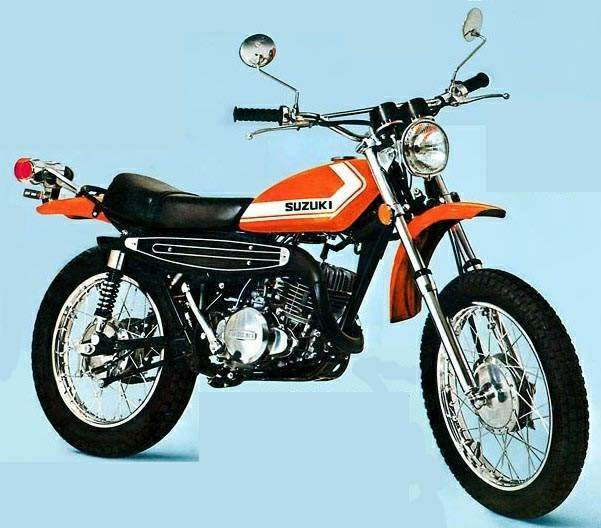

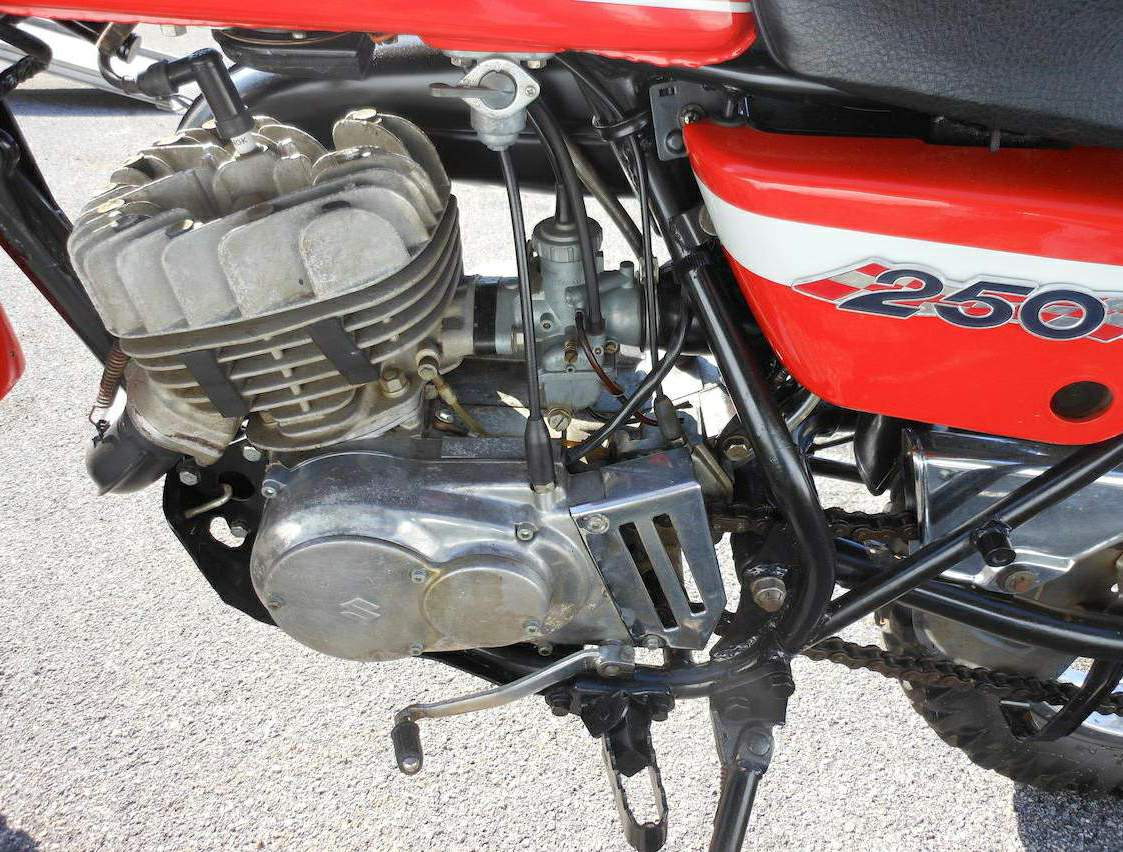

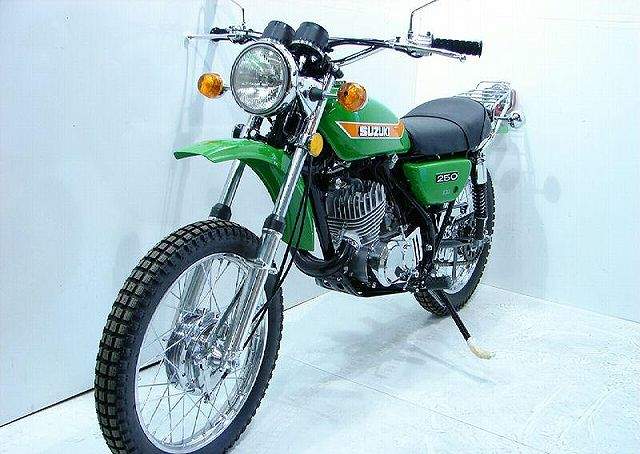

Suzuki TS 250 is produced in 1973-75. Engine is Two stroke, single cylinder, displacement 246 cc / 15.0 cu in , produces power 17.2 kW / 23 hp @ 6500 rpm and 26.5 Nm / 2.7 kgf-m / 19.6 lb-ft @ 5000 rpm. Suzuki TS 250 weighs 111 kg / 245 lbs. Suzuki TS 250 has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: TS 250
Years: 1973-75
Engine: Two stroke, single cylinder
Capacity: 246 cc / 15.0 cu in
Bore x Stroke: 72 x 64 mm
Compression Ratio: 6.7:1
Cooling System: Air cooled
Lubrication System: Fuel/oil mix, Posi-force, CCI
Exhaust: Single, high drawn
Induction: Mikuni VM28SH carburetor
Ignition: Suzuki PEI
Starting: Kick
Max Power: 17.2 kW / 23 hp @ 6500 rpm
Max Torque: 26.5 Nm / 2.7 kgf-m / 19.6 lb-ft @ 5000 rpm
Clutch: Wet, multi-plate
Transmission: 5 Speed, constant mesh
Final Drive: Chain
Front Suspension: Telescopic fork, oil damped
Front Wheel Travel: 175 mm / 6.9 in
Rear Suspension: Swingarm, dual shocks, coil springs, 5-way adjustable
Front Brakes: Drum, internal expanding
Rear Brakes: Drum, internal expanding
Front Tyre: 3.25-19 4PR Trails
Rear Tyre: 4.00-18 4PR Trails
Dimensions: Length: 2184 mm / 86.0 in Width: 889 mm / 35.0 in Height: 1100 mm / 43.3 in
Wheelbase: 1415 mm / 55.7 in
Ground Clearance: 249 mm / 9.8 in
Dry Weight: 111 kg / 245 lbs
Oil Capacity: 1.1 L / 2.3 US pt / 1.9 Imp pt
Fuel Capacity: 9.1 L / 2.4 US gal / 2.0 Imp gal
Top Speed (est.): 129 km/h / 80 mph
