Suzuki T 500 Titan (1969-70) technical specifications

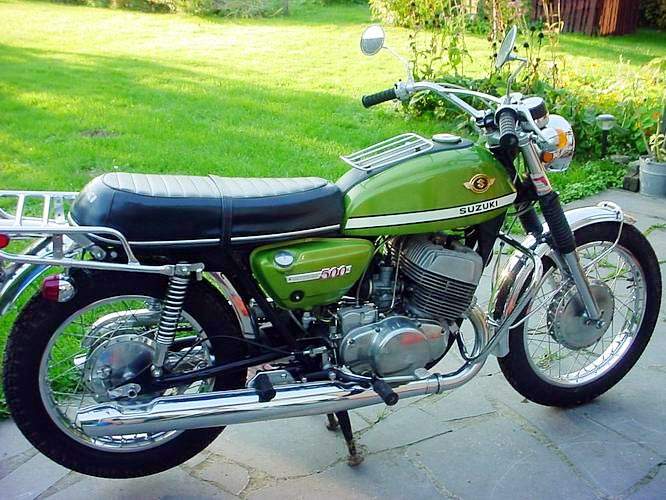

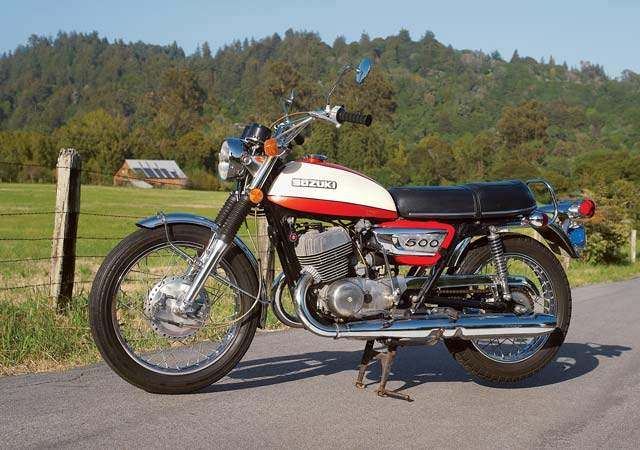

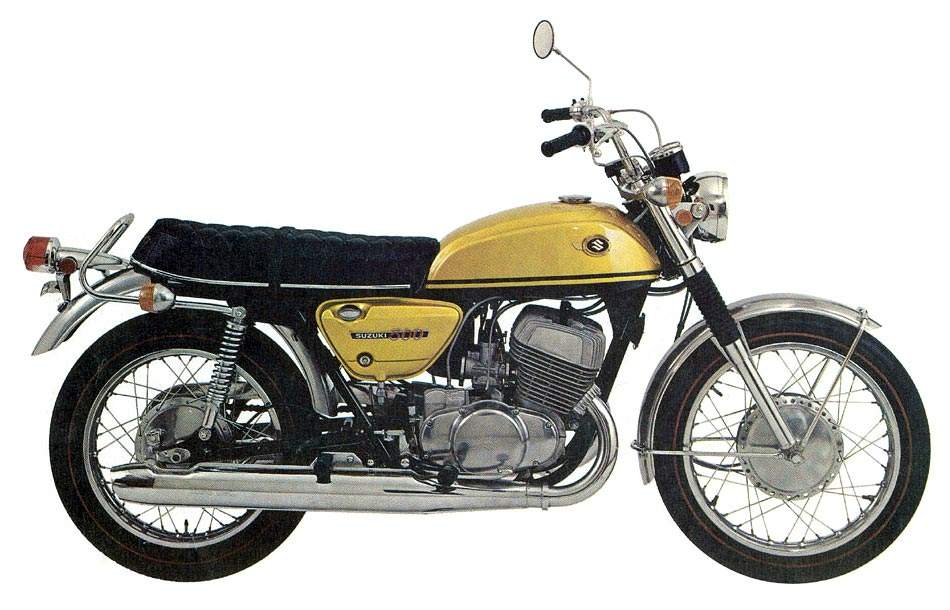

Suzuki T 500 Titan is produced in 1969-70. Engine is Two stroke, parallel two cylinder, displacement 492 cc / 30 cu in , produces power 32.8 kW / 44 hp @ 7000 rpm and 50.8 Nm / 5.2 kgf-m / 37.5 lb-ft @6000 rpm. Suzuki T 500 Titan weighs 186 kg / 410 lbs. Suzuki T 500 Titan has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | T 500 Titan |
| Years: | 1969-70 |
| Engine: | Two stroke, parallel two cylinder |
| Capacity: | 492 cc / 30 cu in |
| Bore x Stroke: | 70 x 64 mm |
| Compression Ratio: | 6.6:1 |
| Cooling System: | Air cooled |
| Lubrication System: | Posi-force |
| Induction: | 2 x 32 mm Mikuni carburetors |
| Starting: | Kick |
| Max Power: | 32.8 kW / 44 hp @ 7000 rpm |
| Max Torque: | 50.8 Nm / 5.2 kgf-m / 37.5 lb-ft @6000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Frame: | Dual downtube cradle |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Dual shock absorbers |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 3.00-18 |
| Rear Tyre: | 3.25-16 |
| Dimensions: | Length: 2172 mm / 85.5 in Width: 835 mm / 32.9 in Height: 1125 mm / 44.3 in |
| Wheelbase: | 1455 mm / 57.3 in |
| Dry Weight: | 186 kg / 410 lbs |
| Top Speed (est): | 185 km/h / 115 mph |
