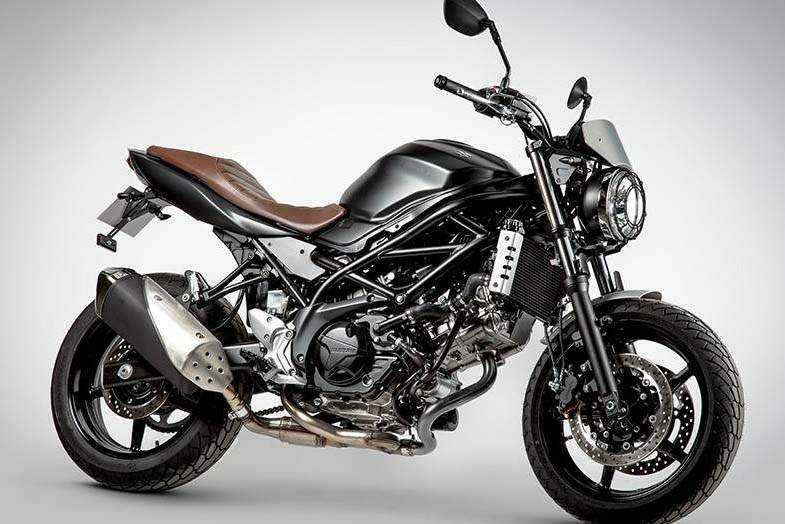

Suzuki SV 650 Scrambler (2017) technical specifications

Suzuki SV 650 Scrambler is produced in 2017. Engine is Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder, displacement 645 cc / 39.3 cu in , produces power 56 kW / 75 hp @ 8500 rpm and 64 Nm / 6.5 kgf-m / 47.2 lb-ft @ 8100 rpm. Suzuki SV 650 Scrambler weighs 197 kg / 434 lbs. Suzuki SV 650 Scrambler has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	SV 650 Scrambler
Years:	2017
Engine:	Four stroke, 90°-V-twin, DOHC, 4 valves per cylinder
Capacity:	645 cc / 39.3 cu in
Bore x Stroke:	81 x 62.6 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.2:1
Lubrication:	Wet sump
Induction:	Fuel Injection, 39mm throttle bodies
Ignition:	Electronic ignition (Transistorized)
Starting:	Electric
Max Power:	56 kW / 75 hp @ 8500 rpm
Max Torque:	64 Nm / 6.5 kgf-m / 47.2 lb-ft @ 8100 rpm
Transmission:	6 Speed, constant mesh
Final Drive:	Chain, DID525V8, 114 links
Frame:	Compact trellis steel frame
Rake:	25o
Trail:	104 mm / 4.1 in
Front Suspension:	Telescopic fork, coil spring, oil damped
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Monoshock, link type, coil spring, oil damped, spring preload 7-step adjustable
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2 x 290 mm Discs, 2 piston calipers, / ABS
Rear Brakes:	Single 240 mm disc, 1 piston caliper, / ABS
Front Wheel:	3.50 x 17, Aluminium alloy, 5-spoke
Rear Wheel:	5.00 x 17, Aluminium alloy, 5-spoke
Front Tyre:	120/70 ZR17M/C 58W, tubeless
Rear Tyre:	160/60 ZR17M/C 69W, tubeless
Dimensions:	Length 2140 mm / 84.2 in Width 760 mm / 29.9 in Height 1090mm / 42.9 in
Wheelbase:	1445 mm / 56.9 in
Seat Height:	785 mm / 30.9 in
Ground clearance:	135mm / 5.3 in
Dry Weight:	197 kg / 434 lbs
Fuel Capacity:	14.5 Litres / 3.8 US gal / 3.2 Imp gal
