Technical specifications
|

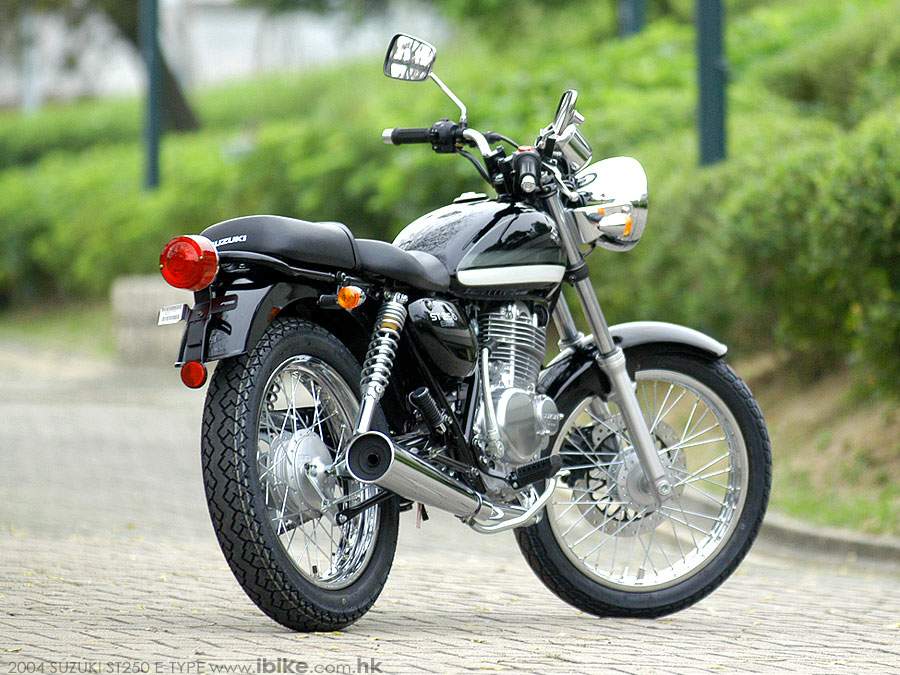

| Model: |
ST 250E |
| Years: |
2004-07 |
|
Engine:
|
Four stroke, single cylinder, SOHC, 2 valves
|
|
Capacity:
|
249 cc / 15.2 cu in
|
|
Bore x Stroke:
|
72.0 x 61.2 mm
|
|
Compression Ratio:
|
9.2:1
|
|
Cooling System:
|
Air/oil cooled
|
|
Induction:
|
Mikuni BSR32 carburetor
|
|
Ignition:
|
CDI
|
|
Starting:
|
Electric and kick
|
|
Max Power:
|
15 kW / 20 hp @ 7500 rpm
|
|
Max Torque:
|
22 Nm / 2.2 kgf-m / 16.2 lb-ft @ 6000 rpm
|
|
Clutch:
|
Wet, multi-plate, coil springs
|
|
Transmission:
|
5 Speed, constant mesh
|
|
Final Drive:
|
Chain, O-ring
|
|
Frame:
|
Steel backbone, tubular
|
|
Rake:
|
25o 55'
|
|
Trail:
|
92 mm / 3.6 in
|
|
Front Suspension:
|
Telescopic fork
|
|
Rear Suspension:
|
Swingarm, dual shocks, coil spring
|
|
Front Brakes:
|
Single disc
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
90/90-18M/C 51S
|
|
Rear Tyre:
|
110/90-18M/C 61S
|
|
Dimensions:
|
Length: 2070 mm / 81.0 in Width: 750 mm / 30.0 in Height: 1075 mm / 42.3 in
|
|
Wheelbase:
|
1375 mm / 54.1 in
|
|
Ground Clearance:
|
165 mm / 6.5 in
|
|
Seat Height:
|
770 mm / 30 mm
|
|
Turning Radius:
|
2.4 m / 7.9 ft
|
|
Dry Weight:
|
129 kg / 284lbs
|
|
Fuel Capacity:
|
12 Litres / 3.2 US gal / 2.6 Imp gal
|
|
Top Speed:
|
121 km/h / 75 mph
|
