Technical specifications
|
| Model: |

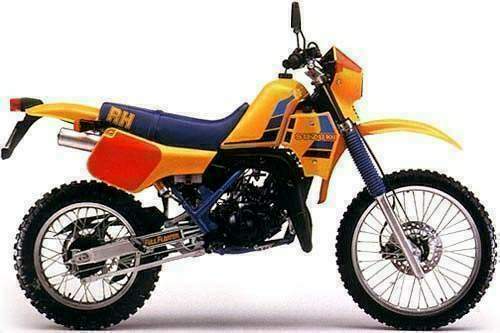

RH 250X |
| Years: |
1984-85 |
|
Engine:
|
Two stroke, single cylinder
|
|
Capacity:
|
249 cc / 15.2 cu in
|
|
Bore x Stroke:
|
70 x 64.8 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication System:
|
CCI
|
|
Induction:
|
Mikuni VM 32 SS carburetor
|
|
Ignition:
|
Suzuki PEI
|
|
Starting:
|
Kick
|
|
Max Power:
|
23.1 kW / 31 hp @ 7500 rpm
|
|
Max Torque:
|
31.2 Nm / 3.18 kgf-m / 23.0 lb-ft @ 6500 rpm
|
|
Clutch:
|
Wet, multi-plate
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Telescopic forks, oil dampened
|
|
Front Wheel Travel:
|
250 mm / 9.8 in
|
|
Rear Suspension:
|
Full floater mono shock, preload adjustable
|
|
Rear Wheel Travel:
|
266 mm / 10.5 in
|
|
Front Brakes:
|
Single disc
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
3.00-21
|
|
Rear Tyre:
|
130/80-17
|
|
Dry Weight:
|
111 kg / 245 lbs
|
|
Fuel Capacity:
|
12 Litres / 3.2 US gal / 2.6 Imp gal
|
|
Fuel Reserve:
|
1.2 Litres / 2.5 US pt / 2.1 Imp pt
|
