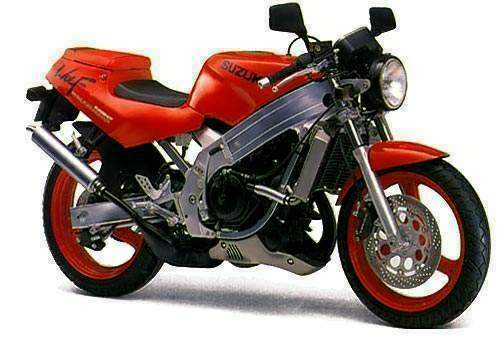

Suzuki RG 250 TV Wolf (1988-89) technical specifications
Suzuki RG 250 TV Wolf is produced in 1988-89. Engine is Two stroke, V- twin, displacement 249 cc / 15.2 cu in , produces power 35.7 kW / 49 hp @ 9500 rpm and 40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm. Suzuki RG 250 TV Wolf weighs 128 kg / 282 lbs. Suzuki RG 250 TV Wolf has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | RG 250 TV Wolf |
| Years: | 1988-89 |
| Engine: | Two stroke, V- twin |
| Capacity: | 249 cc / 15.2 cu in |
| Bore x Stroke: | 56 x 50.6 mm |
| Compression Ratio: | 7.5 :1 |
| Cooling System: | Liquid cooled |
| Induction: | 2 x Mikuni VM32SS carburetors |
| Ignition: | Pointless Electrical Ignition |
| Spark Plug: | NGK BR9ES |
| Battery: | 12V, 5Ah |
| Starting: | Kick |
| Max Power: | 35.7 kW / 49 hp @ 9500 rpm |
| Max Torque: | 40 Nm / 4.1 kgf-m / 29.5 lb-ft @ 8000 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 6 Speed, constant mesh |
| Primary Reduction: | 2.565 (59/23) |
| Gear Ratios: | 1st 2.454 (27/11) / 2nd 1.625 (26/16) / 3rd 1.235 (21/17) / 4th 1.045 (23/22) / 5th 0.916 (22/24) / 6th 0.840 (21/25) |
| Final Drive: | Chain, DID520V2, 114 links |
| Front Suspension: | Telescopic fork, 5-way adjustable with anti-dive, oil dampened |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Full Floater, mono-shock, gas/oil damped, 7-way adjustable |
| Rear Wheel Travel: | 140 mm / 5.5 in |
| Front Brakes: | 2 x 300 mm Discs ,4 piston calipers |
| Rear Brakes: | Single 210 mm disc, 2 piston caliper |
| Front Tyre: | 110/70-17 |
| Rear Tyre: | 14060-18 |
| Frame: | Twin spar, aluminium |
| Rake: | 26o |
| Trail: | 110 mm / 4.3 in |
| Dimensions: | Length: 2015 mm / 79.3 in Width: 695 mm / 27.4 in Height: 1065 mm / 41.9 in |
| Wheelbase: | 1375 mm / 54.1 in |
| Ground Clearance: | 120 mm / 4.7 in |
| Seat Height: | 755 mm / 29.7 in |
| Turning Radius: | 3.1 m / 10.2 ft |
| Dry Weight: | 128 kg / 282 lbs |
| Fuel Capacity: | 17 Litres / 4.5 US gal / 3.7 Imp gal |
| Oil Capacity: | 1.1 Litres / 12 US qt / 1.0 Imp qt |
