Technical specifications
|
| Model: |

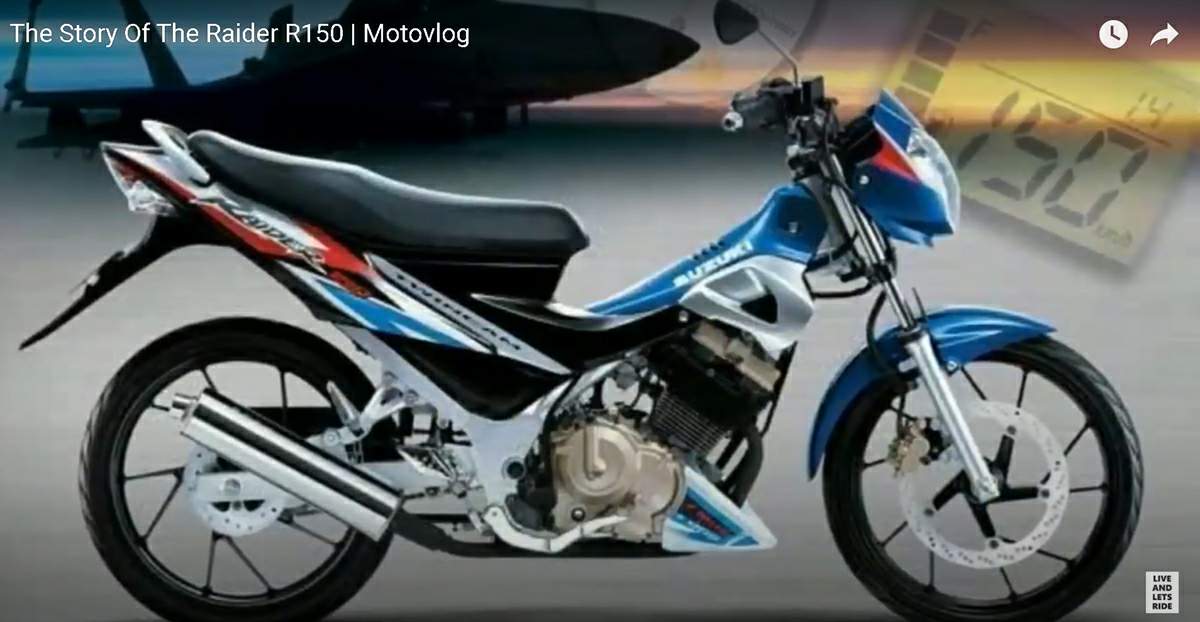

Raider 150 / Satria F150 / Belang R150 |
| Years: |
2003-2015 |
|
Engine:
|
Four stroke, single cylinder, DOHC, 4 valves
|
|
Capacity:
|
147.3 cc / 8.99 cu-in
|
|
Bore x Stroke:
|
62 x 48.8 mm
|
|
Compression Ratio:
|
10.2:1
|
|
Cooling System:
|
Air / Oil cooled
|
|
Induction:
|
Carburettor
|
|
Starting:
|
Electric & Kck
|
|
Max Power:
|
12.1 kW / 16.3 hp @ 9500 rpm
|
|
Max Torque:
|
12.45 Nm / 9.18 lb-ft @ 8500 rpm
|
|
Transmission:
|
6 Speed constant mesh
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel twin-spar diamond
|
|
Front Suspension:
|
Conventional telescopic fork
|
|
Rear Suspension:
|
Steel swing arm with monoshock
|
|
Front Brakes:
|
Single disc, with 2 piston calipers
|
|
Rear Brakes:
|
Single disc
|
|
Front Tyre:
|
70/90-17
|
|
Rear Tyre:
|
80/90-17
|
|
Dimensions:
|
Length 1940 mm / 76.4 in Width 652 mm / 25.7 in Height 941 mm / 37.0 in
|
|
Wheelbase:
|
1280 mm / 50.4 in
|
|
Seat Height:
|
785 mm / 30.9 in
|
|
Ground Clearance:
|
150 mm / 5.9 in
|
|
Weight:
|
95 kg / 209 lbs
|
|
Fuel Capacity:
|
4.9 Litres / 1.3 US gal
|
