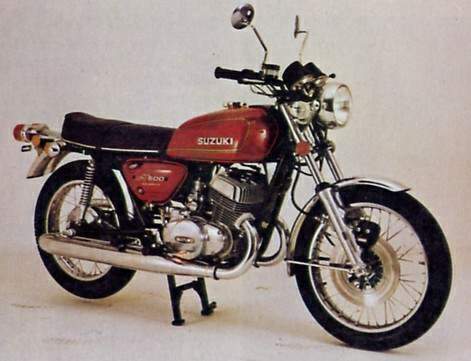

Suzuki GT 500 (1977) technical specifications
Suzuki GT 500 is produced in 1977. Engine is Two stroke, parallel twin, displacement 492 cc / 30 cu in , produces power 32.8 kW / 44 hp @ 6000 rpm and 53 Nm / 5.4 kgf-m / 39.1 lb-ft @ 5500 rpm. Suzuki GT 500 weighs 179 kg / 395 lbs. Suzuki GT 500 has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GT 500 |
| Years: | 1977 |
| Engine: | Two stroke, parallel twin |
| Capacity: | 492 cc / 30 cu in |
| Bore x Stroke: | 70 x 64 mm |
| Compression Ratio: | 6.6:1 |
| Cooling System: | Air cooled |
| Induction: | 2 x VM32SS Mikuni carburetors |
| Ignition: | Pointless electronic |
| Spark Plug: | NGK B-7H S |
| Starting: | Kick |
| Max Power: | 32.8 kW / 44 hp @ 6000 rpm |
| Max Torque: | 53 Nm / 5.4 kgf-m / 39.1 lb-ft @ 5500 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Primary Reduction Ratio: | 2.50:1 |
| Final Reduction Ratio: | 4.79:1 |
| Gear Ratios: | 1st 2.500 / 2nd 1.563 / 3rd 1.158 / 4th 0.955 / 5th 0.870:1 |
| Front Suspension: | Telehydraulic fork |
| Rear Suspension: | Dual shocks swinging fork, preload adjustable |
| Front Brakes: | Single disc, single hydraulic piston caliper |
| Rear Brakes: | 160mm drum |
| Front Tyre: | 3.25-19 |
| Rear Tyre: | 4.00-18 |
| Rake: | 39o |
| Trail: | 121 mm . 4.76 in |
| Dimensions: | Length: 2195 mm / 86.4 in Width: 880 mm / 34.6 in Height: 1105 mm / 43.5 in |
| Wheelbase: | 1466 mm / 57.7 in |
| Ground Clearance: | 160 mm / 6.3 in |
| Lean Angle: | 40o (left and right) |
| Turning Radius: | 2.6 m / 8.5 ft |
| Dry Weight: | 179 kg / 395 lbs |
| Fuel Capacity: | 17 Litres / 4.5 US gal / 3.7 Imp gal |
| Top Speed (est.): | 169 km/h / 105 mph |
