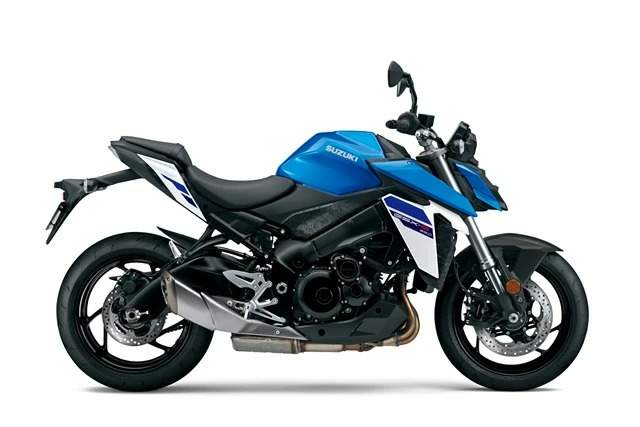

Suzuki GSX-S 950 (2024) technical specifications

Suzuki GSX-S 950 technical specifications

Suzuki GSX-S 950 is produced in 2024. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC, displacement 998.6 cc / 60.9 cub-in , produces power 95 hp / 70 kW @ 7800 rpm and 92 Nm / 67.8 lb-ft @ 6500 rpm. Suzuki GSX-S 950 wet weight is 214 kg / 472 lbs. Suzuki GSX-S 950 has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: GSX-S 950
Years: 2024
Engine: Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Capacity: 998.6 cc / 60.9 cub-in
Bore x Stroke: 73.4 x 59.0 mm
Compression Ratio: 12.2:1
Cooling System: Liquid cooled
Lubrication: Wet sump
Induction: Fuel Injection
Emission: Euro 5
Ignition: Electronic ignition (transistorised)
Starting: Electric
Max Power: 95 hp / 70 kW @ 7800 rpm
Max Torque: 92 Nm / 67.8 lb-ft @ 6500 rpm
Clutch: Wet multiplate with assist-and-slip functions
Transmission: 6 Speed, constant mesh
Final Drive: 525 RK chain
Primary Reduction Ratio: 1.553 (73/47)
Final Reduction Ratio: 2.588 ( 44/17)
Frame: Aluminium, twin spar
Front Suspension: 43mm KYB Inverted telescopic, coil spring, oil damped
Front Wheel Travel: 120 mm / 4.7 in
Rear Suspension: Linkage-assisted spring-preload and rebound-damping adjustable KYB shock
Rear Wheel Travel: 130 mm / 5.1 in
Front Brakes: 2 x 310mm floating discs with Tokico 4-piston calipers
Rear Brakes: Single 240mm disc with Nissin single-piston caliper
ABS: Standard
Wheels: TRP 6-spoke cast aluminum
Front Tyre: 120/70ZR17M/C (58W) tubeless
Rear Tyre: 190/50ZR17M/C (73W) tubeless
Rake: 25.0?
Trail: 100 mm / 3.9 in
Dimensions: Length 2115 mm / 83. 2 in Width 810 mm / 31.9 in Height 1080 mm / 42.5 in
Wheelbase: 1460 mm / 57.5 in
Seat Height: 810 mm / 31.9 in
Ground clearance: 140 mm / 5.5 in
Wet Weight: 214 kg / 472 lbs
Fuel Capacity: 19 Litres / 5.0 US gal
