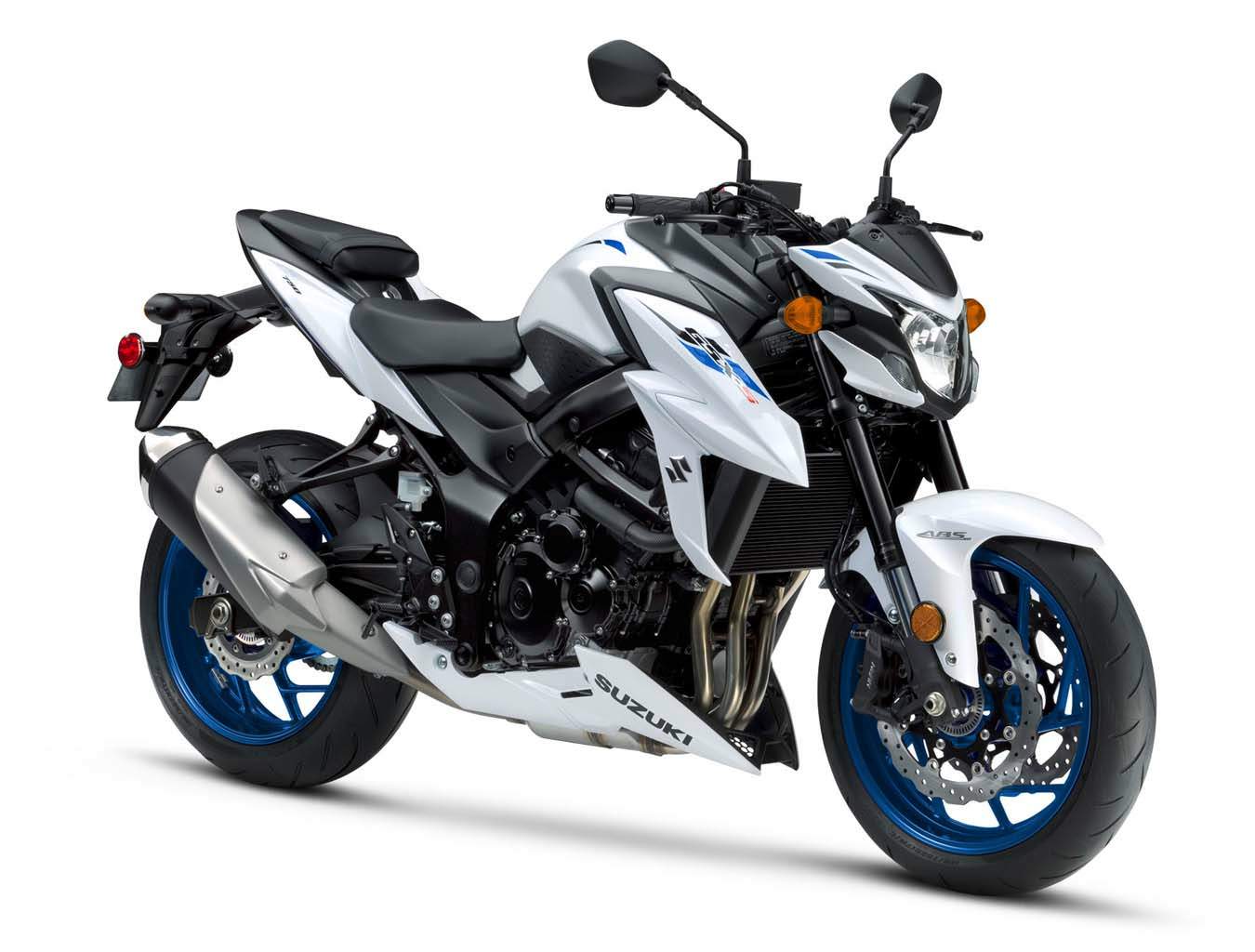

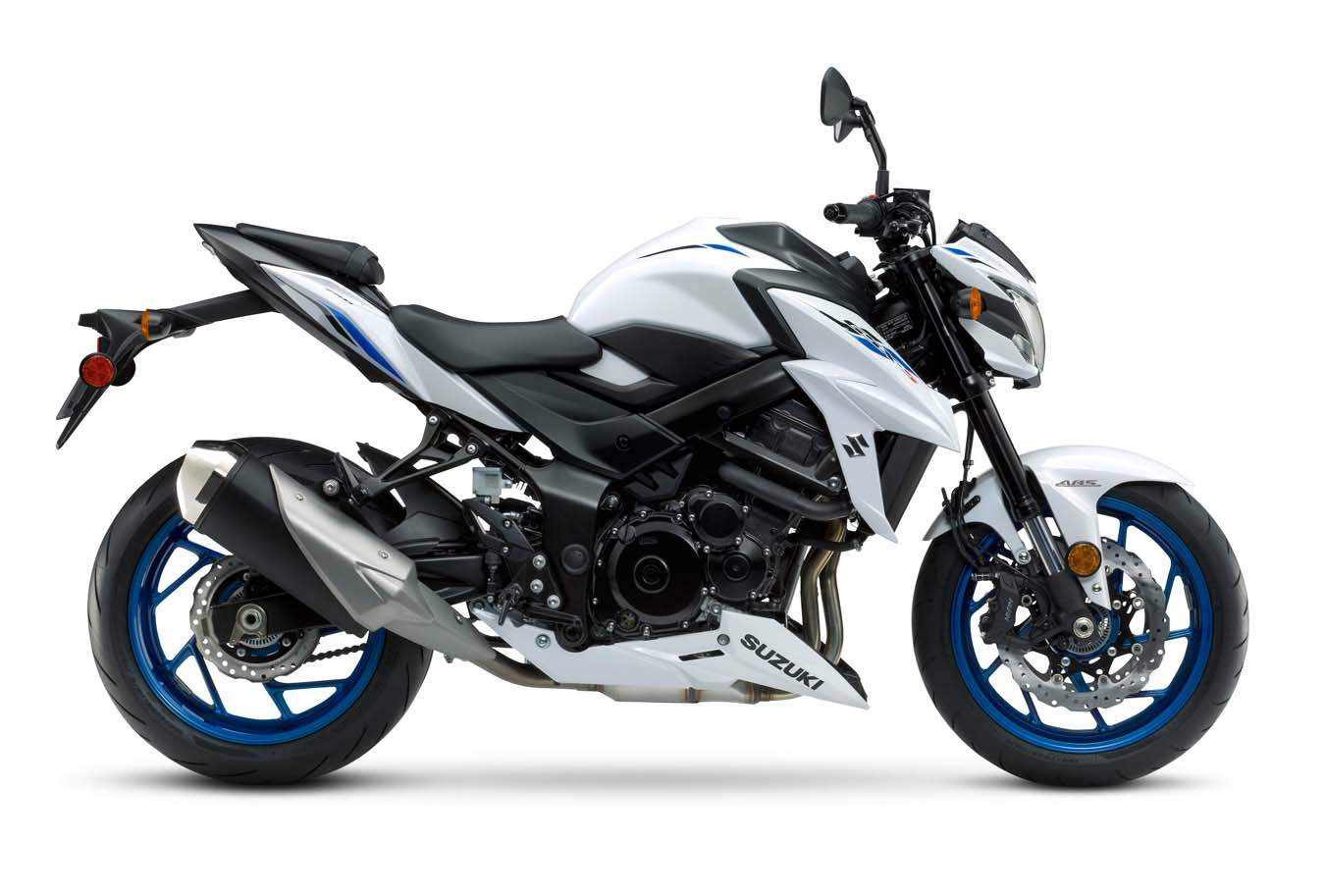

Suzuki GSX-S 750 / ABS (2019-20) technical specifications

Suzuki GSX-S 750 / ABS is produced in 2019-20. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC, displacement 749 cc / 45.7 cub. in , produces power 73.8 kW / 99.1 hp @ 10170 rpm and 73.6 Nm / 54.3 lb-ft / @ 9060 rpm. Suzuki GSX-S 750 / ABS wet weight is 213 kg / 469.6 lbs. Suzuki GSX-S 750 / ABS has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	GSX-S 750 / ABS
Years:	2019-20
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
Capacity:	749 cc / 45.7 cub. in
Bore x Stroke:	72.0 x 46.0 mm
Compression Ratio:	12.3:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Induction:	Suzuki Fuel Injection with SDTV
Ignition:	Electronic ignition (transistorised)
Traction Control:	Suzuki Advanced Traction Control
Starting:	Electric
Max Power:	73.8 kW / 99.1 hp @ 10170 rpm
Max Torque:	73.6 Nm / 54.3 lb-ft / @ 9060 rpm
Clutch:	Wet, multi-plate type
Transmission:	6 Speed, constant mesh
Final Drive:	Chain, DID50VAZ, 114 links
Frame:	Aluminium, twin spar
Front Suspension:	Inverted telescopic, coil spring, oil damped
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Link type, coil spring, oil damped, 7-way adjustable
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	2x 310 mm Full floating discs, 4-piston calipers. ABS
Rear Brakes:	Single 220 mm disc, Nissin, 1-piston caliper. ABS
Front Tyre:	120/70ZR17M/C (58W), tubeless
Rear Tyre:	180/55ZR17M/C (73W), tubeless
Dimensions:	Length 2125 mm / 83.6 in Width 785 mm / 30.9 in Height 1055 mm / 41.5 in
Wheelbase:	1455 mm / 57.2 in
Seat Height:	820 mm / 32.2 in
Ground Clearance:	135 mm / 5.1 in
Wet Weight:	213 kg / 469.6 lbs
Fuel Capacity:	16 Litres / 4.2 US gal / 3.7 Imp gal
