Suzuki GSX-R 750 TT Limited Edition (2007) technical specifications

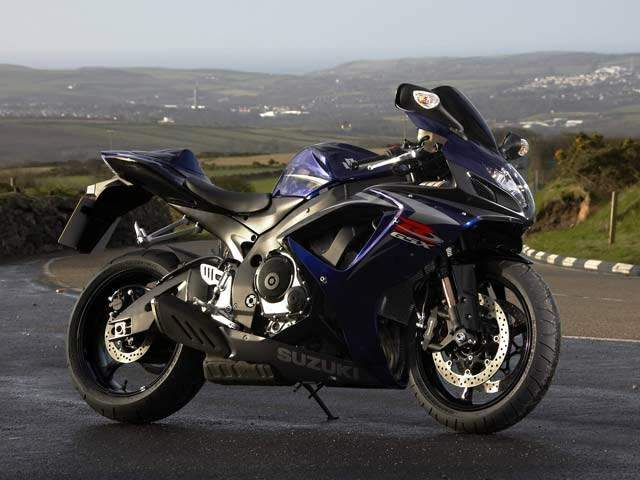

Suzuki GSX-R 750 TT Limited Edition is produced in 2007. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 749 c / 45.7 cub. in. , produces power 110.3 kW / 148 hp @ 12800 rpm and 86.3 Nm / 8.8 kgf-m / 64 ft-lb @ 11200 rpm. Suzuki GSX-R 750 TT Limited Edition top speed is 279.3 km/h / 173.5 mph. Suzuki GSX-R 750 TT Limited Edition weighs 163 kg / 359 lbs. Suzuki GSX-R 750 TT Limited Edition has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GSX-R 750 TT Limited Edition |
| Years: | 2007 |
| Production: | 200 Units |
| Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. |
| Capacity: | 749 c / 45.7 cub. in. |
| Bore x Stroke: | 70 x 48.7 mm |
| Compression Ratio: | 12.5:1 |
| Cooling System: | Liquid. High capacity large trapezoidal-shaped radiator which includes compact cooling fan assembly designed for improved air flow. |
| Engine Oil: | Synthetic,10W/40 |
| Exhaust System: | Suzuki Advanced Exhaust System (SAES) with under engine muffler layout and Suzuki Exhaust Tuning (SET) system. |
| Lubrication: | Wet sump |
| Induction: | Tapered, 50mm double-barrel throttle body, Suzuki's SDTV throttle valve system, plus twin multi-hole-type injectors per cylinder. |
| Ignition: | Digital DC-CDI |
| Spark Plug: | NGK, CR9E |
| Starting: | Electric |
| Max Power: | 110.3 kW / 148 hp @ 12800 rpm |
| Max Torque: | 86.3 Nm / 8.8 kgf-m / 64 ft-lb @ 11200 rpm |
| Clutch: | Wet, multiple discs |
| Transmission: | 6 Speed, constant mesh |
| Final Drive: | Chain, RK525ROZ5Y, 116 links |
| Gear Ratios: | 1st 2.79 / 2nd 2.05 / 3rd 1.71 / 4th 1.50 / 5th 1.35 / 6th 1.20:1 |
| Frame: | Ultra-lightweight frame built entirely of aluminum alloy castings. |
| Front Suspension: | Inverted 41mm Showa cartridge front forks are fully adjustable for spring preload, compression damping, and rebound damping |
| Rear Suspension: | Showa rear shock absorber, 46mm piston and 16mm rod, adjustable rebound damping, compression damping and preload settings |
| Front Wheel Travel: | 130 mm / 5.1 in. |
| Rear Wheel Travel: | 130 mm / 5.1 in. |
| Front Brakes: | 2 x 310 mm Discs, Tokico 4 piston calipers |
| Rear Brakes: | Single 220 mm disc, Tokico 2 piston caliper |
| Wheels: | Aluminum, 3 spoke |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 180/55 ZR17 |
| Rake: | 23.8° |
| Trail: | 97 mm / 3.8 in. |
| Dimensions: | Length 2030 mm / 79.9 in. Width 710 mm / 28.0 in. Height 1125 mm / 44.6 in. |
| Wheelbase: | 1390 mm / 54.7 in. |
| Seat Height: | 810 mm / 31.8 in. |
| Ground Clearance: | 135 mm / 5.3 in |
| Dry Weight: | 163 kg / 359 lbs |
| Fuel Capacity: | 16.5 Litres / 4.4 US gal / 3.6 Imp gal |
| Average Consumption: | 5.5 l/100 km / 18.3 km/l / 43 US mpg / 51 Imp mpg |
| Standing ¼ mile: | 10.8 sec |
| Top Speed: | 279.3 km/h / 173.5 mph |
| Colours: | Blue/White, Red/Black, Yellow/Black |
