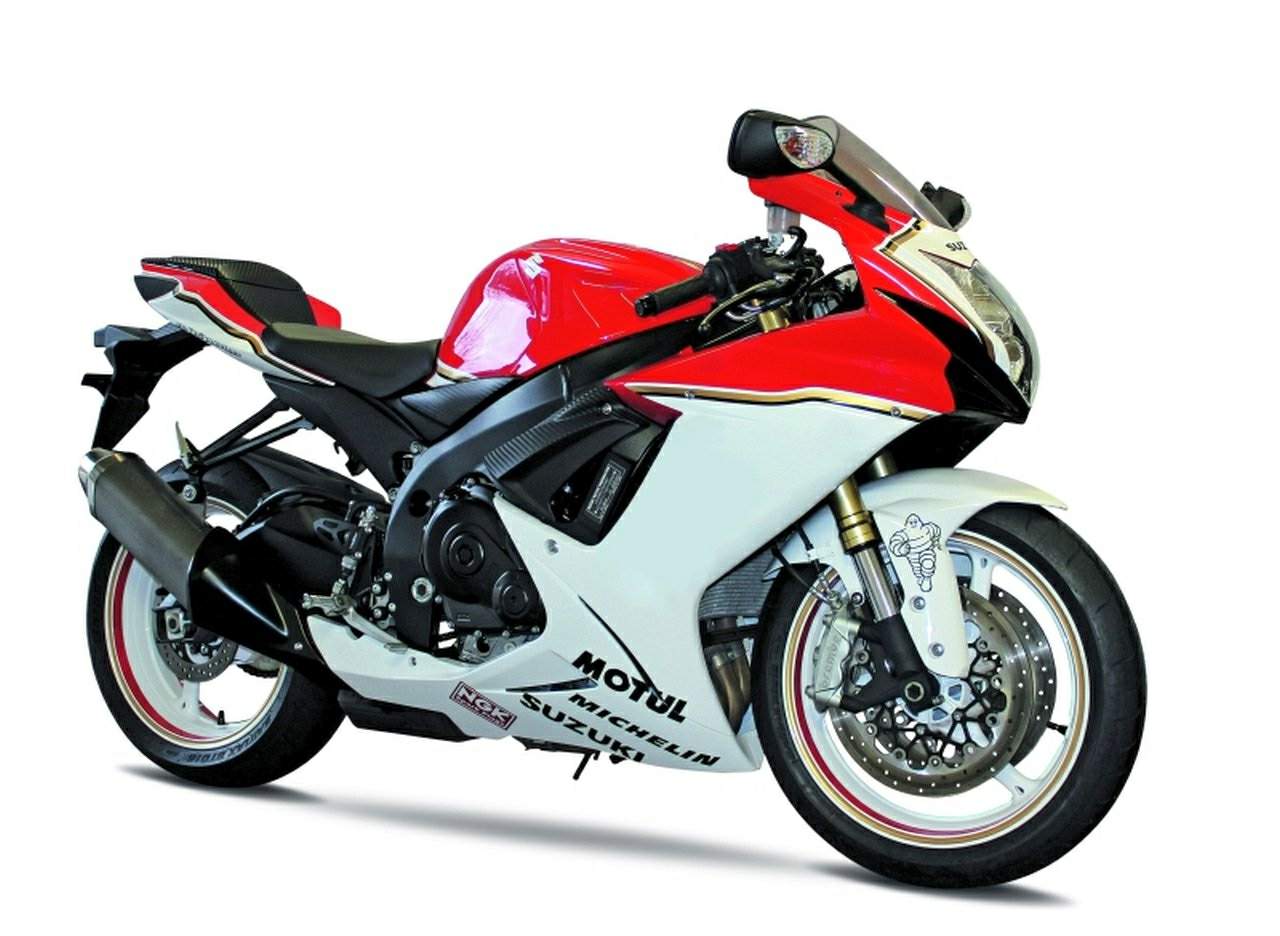

Suzuki GSX-R 600 Swantz Limited Edition (2013) technical specifications
Suzuki GSX-R 600 Swantz Limited Edition is produced in 2013. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, displacement 599 c / 36.6 cub. in. , produces power 93.2 kW / 125 hp @ 13500 rpm with maximum RAM air and 67.7 Nm / 6.9 kgf-m / 49.9 ft-lb @ 11500 rpm, RAM air. Suzuki GSX-R 600 Swantz Limited Edition top speed is 253 km/h / 157 mph. Suzuki GSX-R 600 Swantz Limited Edition weighs 160 kg / 352 lbs. Suzuki GSX-R 600 Swantz Limited Edition has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GSX-R 600 Swantz Limited Edition |
| Years: | 2013 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder |
| Capacity: | 599 c / 36.6 cub. in. |
| Bore x Stroke: | 67.0 x 42.5 mm |
| Compression Ratio: | 12.9:1 |
| Cooling System: | Liquid cooled |
| Oil: | 10W40 |
| Lubrication: | Wet sump |
| Exhaust System: | Suzuki Advanced Exhaust System (SAES), under engine chamber leading to large volume muffler and triangular silencer |
| Induction: | EFI, Four 40 mm throttle bodies, 2 valves per body. S-DMS engine management system |
| Ignition: | Digital CDI |
| Spark Plug: | NGK CR9E |
| Starting: | Electric |
| Max Power: | 93.2 kW / 125 hp @ 13500 rpm with maximum RAM air |
| Max Torque: | 67.7 Nm / 6.9 kgf-m / 49.9 ft-lb @ 11500 rpm, RAM air |
| Clutch: | Wet, slipper, cable operated |
| Transmission: | 6 Speed, constant mesh |
| Gear Ratios: | 1st 2.69 / 2nd 2.11 / 3rd 1.76 / 4th 1.52 / 5th 1.35 / 6th 1.23:1 |
| Final Drive: | #525 Chain, 114 links |
| Frame: | Aluminium, twin spar extrusion frame |
| Rake: | 23.25° |
| Trail: | 93 mm / 3.7 in |
| Front Suspension: | Showa Big Piston front-Fork (BPF) |
| Rear Suspension: | Link type, coil spring, oil damped |
| Front Wheel Travel: | 125 mm / 4.9 in. |
| Rear Wheel Travel: | 130 mm / 5.1 in. |
| Front Brakes: | 2 x 310 mm Discs, Brembo 4 piston calipers |
| Rear Brakes: | Single 220 mm disc, Nissin 2 piston caliper |
| Wheels: | Alloy, 3 spoke |
| Front Tyre: | 120/70 ZR17 |
| Rear Tyre: | 180/55 ZR17 |
| Wheelbase: | 1385 mm / 54.5 in. |
| Dimensions: | Length 2030 mm / 80.0 in. Width 715 mm / 28.1 in. Height 1125 mm / 44.7 in. |
| Seat Height: | 810 mm / 31.9 in. |
| Ground clearance: | 130 mm / 5.1 in. |
| Dry Weight: | 160 kg / 352 lbs |
| Wet Weight: | 187kg / 412 lbs |
| Fuel Capacity: | 17 Litres / 4.5 US gal / 3.7 Imp gal |
| Average Fuel Consumption: | 5.4 L/100 km / 18.4 km/l / 43.3 US mpg / 52.3 Imp mpg |
| Standing ¼ mile: | 11.1 sec |
| Top Speed: | 253 km/h / 157 mph |
