Technical specifications
|
| Model: |

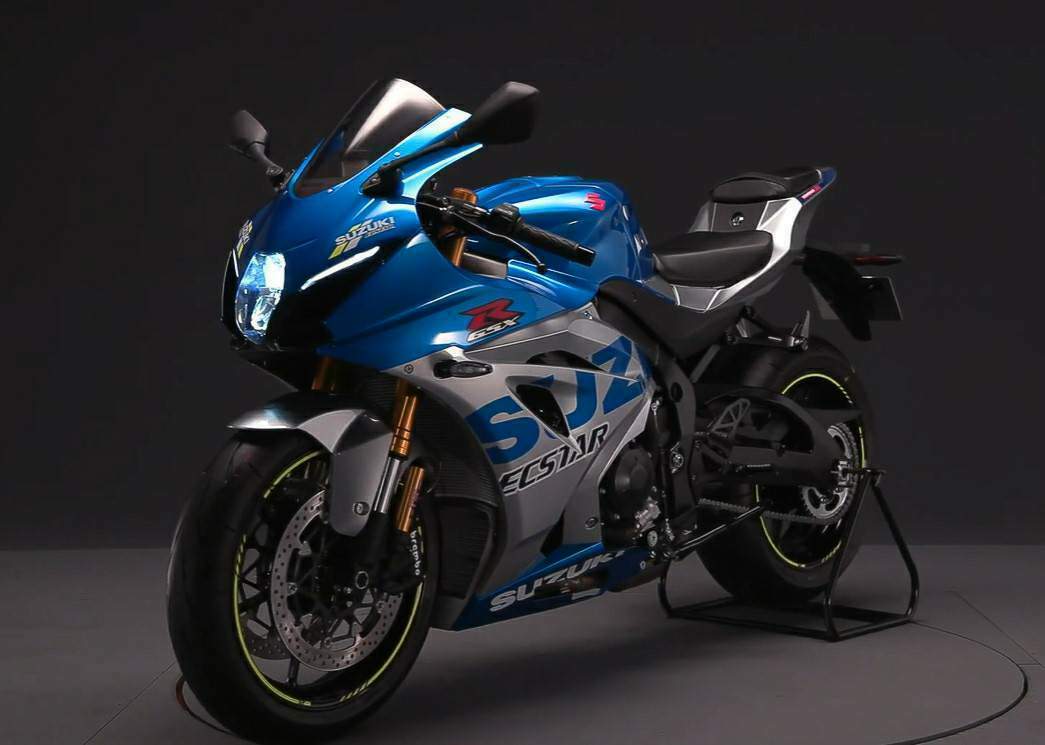

GSX-R 1000R 100th Anniversary Limited Edition |
| Years: |
2020 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC
|
|
Capacity:
|
998.6 cc / 60.9 cub. in
|
|
Bore x Stroke:
|
76.0 x 55.1 mm
|
|
Compression Ratio:
|
13.2:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Exhaust:
|
Titanium
|
|
Induction:
|
Fuel Injection
|
|
Ignition:
|
Electronic ignition Transistorized
|
|
Starting:
|
Electric
|
|
Max Power:
|
148.6 kW / 199.2 hp @ 13200rpm
|
|
Max Torque:
|
117.6 Nm / 86.7 lb-ft @ 10800rpm
|
|
Clutch:
|
Hydraulically-actuated multiplate wet clutch.
|
|
Transmission:
|
6 Speed, constant mesh
|
|
Final Drive:
|
Chain, DID50VAZ, 114 links
|
|
Frame:
|
Aluminum
|
|
Front Suspension:
|
IInverted telescopic, coil spring, oil damped
|
|
Rear Suspension:
|
Link type, coil spring, oil damped
|
|
Front Brakes:
|
2 x 320mm Discs radial mount Brembo 4-piston calipers
|
|
Rear Brakes:
|
Single 220mm disc, Nissin, 1-piston
|
|
Front Tyre:
|
120/70ZR17M/C (58W) tubeless
|
|
Rear Tyre:
|
190/50 ZR17 M/C (73W) tubeless
|
|
Rake:
|
23.2°
|
|
Trail:
|
94 mm / 3.7 in
|
|
Dimensions:
|
Length 2075mm / 81.7in Width 710mm / 28 in Height 1150mm / 45.3 in
|
|
Wheelbase:
|
1410mm / 55.5 in
|
|
Seat Height:
|
825 mm / 32.5 in
|
|
Ground Clearance:
|
130 mm / 5.1 in
|
|
Wet Weight:
|
203.0kg / 447.5lbs
|
|
Fuel Capacity:
|
16 Litres / 3.5 US gal
|
