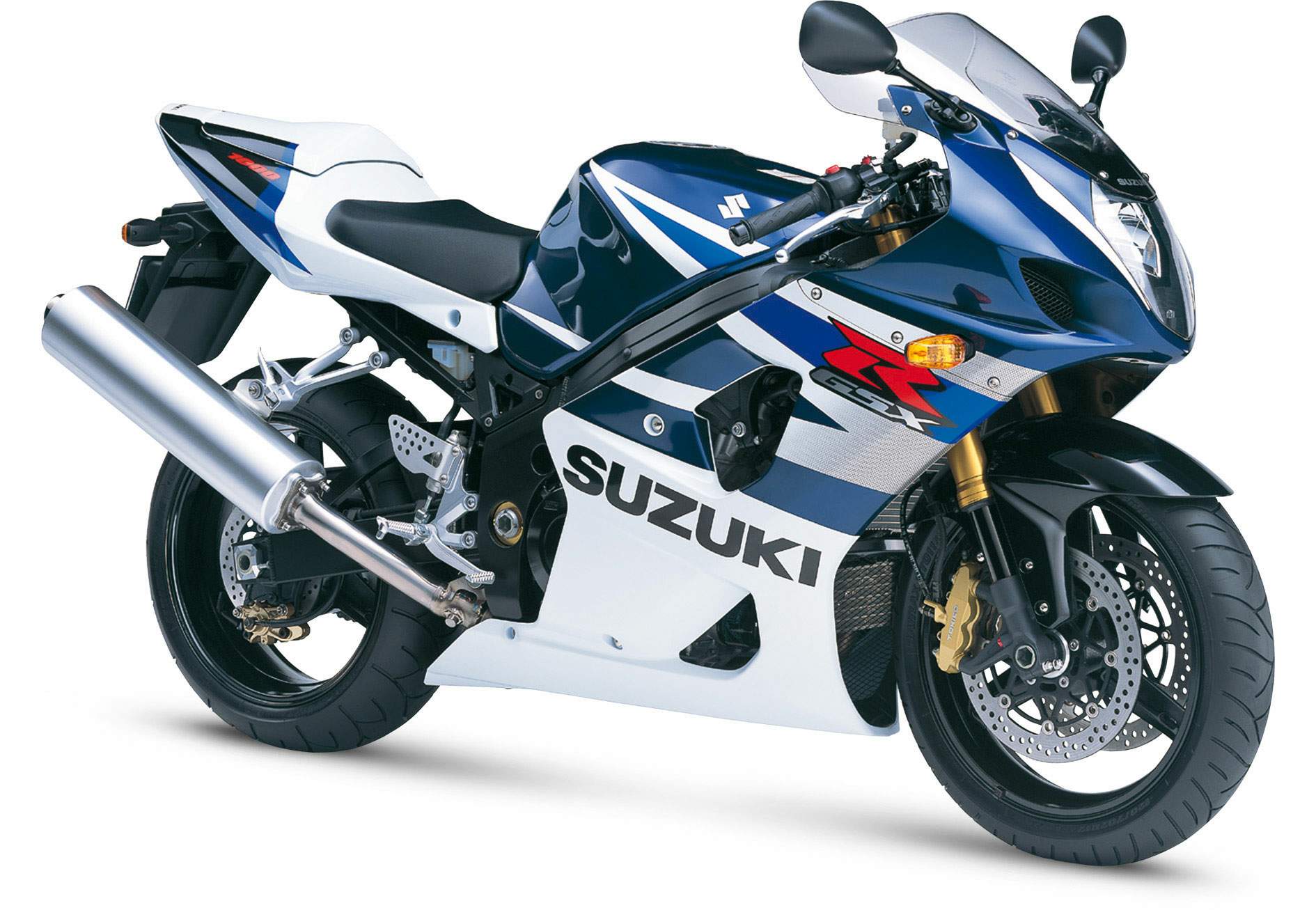

Suzuki GSX-R 1000 (2004) technical specifications
Suzuki GSX-R 1000 is produced in 2004. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC, displacement 988 cc / 60.3 cub. in , produces power 119.5 kW / 162 hp @ 10800 rpm and 120 Nm / 12.2 kgf-m / 88.5 ft -lb @ 8500rpm (RAM air). Suzuki GSX-R 1000 top speed is 291 km/h / 181 mph. Suzuki GSX-R 1000 weighs 168 kg / 370 lbs.. Suzuki GSX-R 1000 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GSX-R 1000 |
| Years: | 2004 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder, TSCC |
| Capacity: | 988 cc / 60.3 cub. in |
| Bore x Stroke: | 73 x 59 mm |
| Compression Ratio: | 12.0:1 |
| Cooling System: | Liquid cooled |
| Lubrication: | Wet sump |
| Engine Oil: | Synthetic, 10W/40 |
| Exhaust: | 4 into 1, Stainless steel |
| Induction: | Electronic Fuel Injection with four 42 mm throttle bodies |
| Ignition: | Electronic ignition, Transistorized |
| Starting: | Electric |
| Spark Plug: | NGK, CR9EIA-9 |
| Clutch: | Cable-operated multiplate wet clutch |
| Max Power: | 119.5 kW / 162 hp @ 10800 rpm |
| Max Torque: | 120 Nm / 12.2 kgf-m / 88.5 ft -lb @ 8500rpm (RAM air) |
| Transmission: | 6 Speed, constant mesh |
| Final Drive: | #525 Chain, 110 links |
| Primary Drive Ratio: | 1.553 (73/47) |
| Final Drive Ratio: | 2.470 (42/17) |
| Gear Ratio: | 1st 2.687 / 2nd 2.052 / 3rd 1.681 / 4th 1.450 / 5th 1.304 / 6th 1.208:1 |
| Frame: | Aluminium, twin spar |
| Rake: | 24° |
| Trail: | 96 mm / 3.8 in. |
| Front Suspension: | Inverted telescopic, coil spring, oil damped, spring preload fully adjustable, rebound and compression damping force fully adjustable. |
| Front Wheel Travel: | 125 mm / 4.9 in. |
| Rear Suspension: | Link type, oil damped, coil spring, spring preload fully adjustable, rebound damping force and compression damping force fully adjustable. |
| Rear Wheel Travel: | 130 mm / 5.1 in. |
| Front Brakes: | Radial master cylinder. Radial mount, 4-piston calipers, 300 mm dual disc. |
| Rear Brakes: | Single 2-piston caliper, 220 mm disc |
| Wheels: | Cast aluminium, 3 spoke |
| Front Tyre: | 120/70 ZR17 M/C, (58W) tubeless |
| Rear Tyre: | 190/50 ZR17 M/C (73W), tubeless |
| Wheelbase: | 1410 mm / 55.5 in. |
| Dimensions: | Length 2045 mm / 80.5 in Width 715 mm / 28.1 in Height 1133 mm / 44.6 in |
| Seat Height: | 820 mm / 32.3 in. |
| Ground clearance: | 130 mm / 5.1 in. |
| Dry Weight: | 168 kg / 370 lbs. |
| Fuel Capacity: | 18 Litres / 4.8 US gal / 4.0 Imp gal |
| Oil Capacity: | 3.2 Litres / 3.4 US qt / 2.8 Imp qt |
| Average Fuel Consumption: | 5.5 L/100 km / 18.3 km/l / 43 US mpg / 51 Imp mpg |
| Standing 1/4 mile: | 10.4 sec |
| Top Speed: | 291 km/h / 181 mph |
| Colours: | Blue/white, Silver, Black/Orange |
