Technical specifications
|

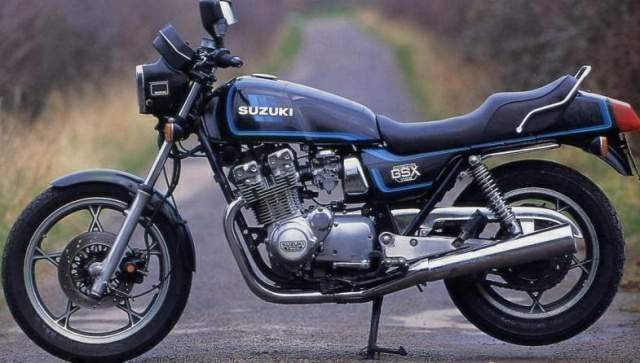

| Model: |
GSX 750E |
| Years: |
1981 |
|
Engine:
|
Four stroke, transverse four cylinders, DOHC, 4 valve per cylinder.
|
|
Capacity:
|
747 cc / 45.5 cu-in
|
|
Bore x Stroke:
|
67 х 53 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.4:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
4 x 32 mm Mikuni BS 32 carburetors.
|
|
Ignition:
|
Transistorized
|
|
Starting:
|
Electric
|
|
Max Power:
|
59 kW / 79 hp @ 9200 rpm
|
|
Max Torque:
|
63 Nm / 6.4 kgf-m / 46.5 lb-ft @ 7000 rpm
|
|
Transmission:
|
5 Speed
|
|
Gear Ratios:
|
1st 2.571 / 2nd 1.777 / 3rd 1.380 / 4th 1.125 / 5th 0.961
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
Telescopic leading axle fork
|
|
Rear Suspension:
|
Dual shocks with 5-way spring preload
|
|
Front Brakes:
|
2 x 275mm discs, 1 piston caliper
|
|
Rear Brakes:
|
Single 275mm disc, 1 piston caliper
|
|
Front Tyre:
|
3.25-19
|
|
Rear Tyre:
|
4.00-18
|
|
Dimension:
|
Length 2250 mm / 88.6 in Width 875 mm / 34.4 in Height 1189 mm / 46.8 in
|
|
Wheelbase:
|
1520 mm / 59.8 in
|
|
Ground Clearance:
|
150 mm / 5.9 in
|
|
Dry Weight:
|
229 kg / 504 lbs
|
|
Wet Weight:
|
235 kg / 518 lbs
|
|
Fuel Capacity:
|
19 Litres / 5.0 US gal / 4.2 Imp gal
|
|
Consumption Average:
|
4.6 L/100 km / 21.7 km/l / 51 US mpg / 61 Imp mpg
|
|
Standing ¼ Mile:
|
12.4 sec
|
|
Top Speed:
|
197.9 km/h / 123 mph
|
