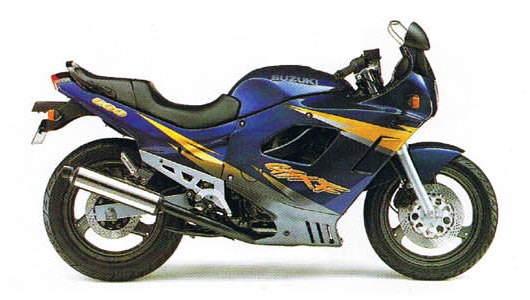

Suzuki GSX 600F (1996-97) technical specifications
Suzuki GSX 600F is produced in 1996-97. Engine is Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder., displacement 599 cc / 36.6 cu.in , produces power 64 kW / 87 hp @ 11000 rpm and 59.8 Nm / 6.1kgf-m / 44 ft-lb @ 9600 rpm. Suzuki GSX 600F top speed is 221.7 km/h / 137.8 mph. Suzuki GSX 600F weighs 200 kg / 441 lbs. Suzuki GSX 600F has 2 photos.
Technical specifications
+ Add to 'Compare list'Model: | GSX 600F |
Years: | 1996-97 |
Engine: | Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. |
Capacity: | 599 cc / 36.6 cu.in |
Bore x Stroke: | 62.6 x 48.7 mm |
Cooling System: | Air/oil cooled |
Compression Ratio: | 11.3:1 |
Lubrication: | Wet sump |
Oil capacity: | 4.7 Litres / 5.0 US qt / 4.1 Imp gal |
Induction: | 4 x Mikuni BST32 Carburetors |
Ignition: | Transistorized |
Ignition timing: | 13° B.T.D.C. below 1500 rpm |
Battery: | 12V 39.6 kC (10Ah)/10HR |
Generator: | Three phase A.C. generator |
Headlight: | 12V 60/55W |
Spark Plug: | NGK, CR9EK |
Starting: | Electric |
Max Power: | 64 kW / 87 hp @ 11000 rpm |
Max Power Rear Tyre: | 58.2 kW / 78.1 hp @ 10700 rpm |
Max Torque: | 59.8 Nm / 6.1kgf-m / 44 ft-lb @ 9600 rpm |
Clutch: | Wet, multiple discs, cable operated |
Transmission: | 6 Speed |
Final Drive: | Chain, 118 links |
Primary reduction Ratio: | 1.744 |
Final Reduction Ratio: | 3.133 |
Frame: | Duble-cradle, tubular steel pipe |
Front Suspension: | 41 mm Conventional telescopic, coil spring, oil damped, fully adjustable rebound damping |
Front Wheel Travel: | 130 mm / 5.1 in |
Rear Suspension: | Swingarm, progressive linkage, 4-step rebound dampened, 7-step spring preload |
Rear Wheel Travel: | 142 mm / 5.6 in |
Front Brakes: | 2 x 290mm Discs, 2 piston caliper |
Rear Brakes: | Single 240 mm disc, 2 piston caliper |
Front Wheel: | 3.50 x 17, cast alumium-alloy |
Rear Wheel: | 4.50 x17, cast alumium-alloy |
Front Tyre: | 120/70 ZR17 |
Rear Tyre: | 150/70 ZR17 |
Rake: | 25.3° |
Trail: | 99.5mm / 3.9 in |
Dimensions: | Length 2135 mm / 84.1 in Width 745 mm / 29.3 in Height 1195 mm / 47.0 in |
Wheelbase: | 1470 mm / 57.9 in |
Seat Height: | 785 mm / 30.9 in |
Dry Weight: | 200 kg / 441 lbs |
Wet Weight: | 219 kg / 482.8 lbs |
Fuel Capacity: | 20 Litres / 5.2 US gal / 4.4 Imp gal |
Reserve: | 5 Litres / 1.3 US gal / 1.1 Imp gal |
Consumption Average: | 5.4 L/100km / 18.6 km/l / 43.7 US mpg / 52.5 Imp mpg |
Braking 60 km/h - 0: | 13.8 m / 45.3 ft |
Braking 100 km/h - 0: | 38.8 m / 127.3 ft |
Standing ¼ Mile: | 11.9 sec / 181.0 km/h / 112.5 mph |
Top Speed: | 221.7 km/h / 137.8 mph |
