Technical specifications
|
| Model: |

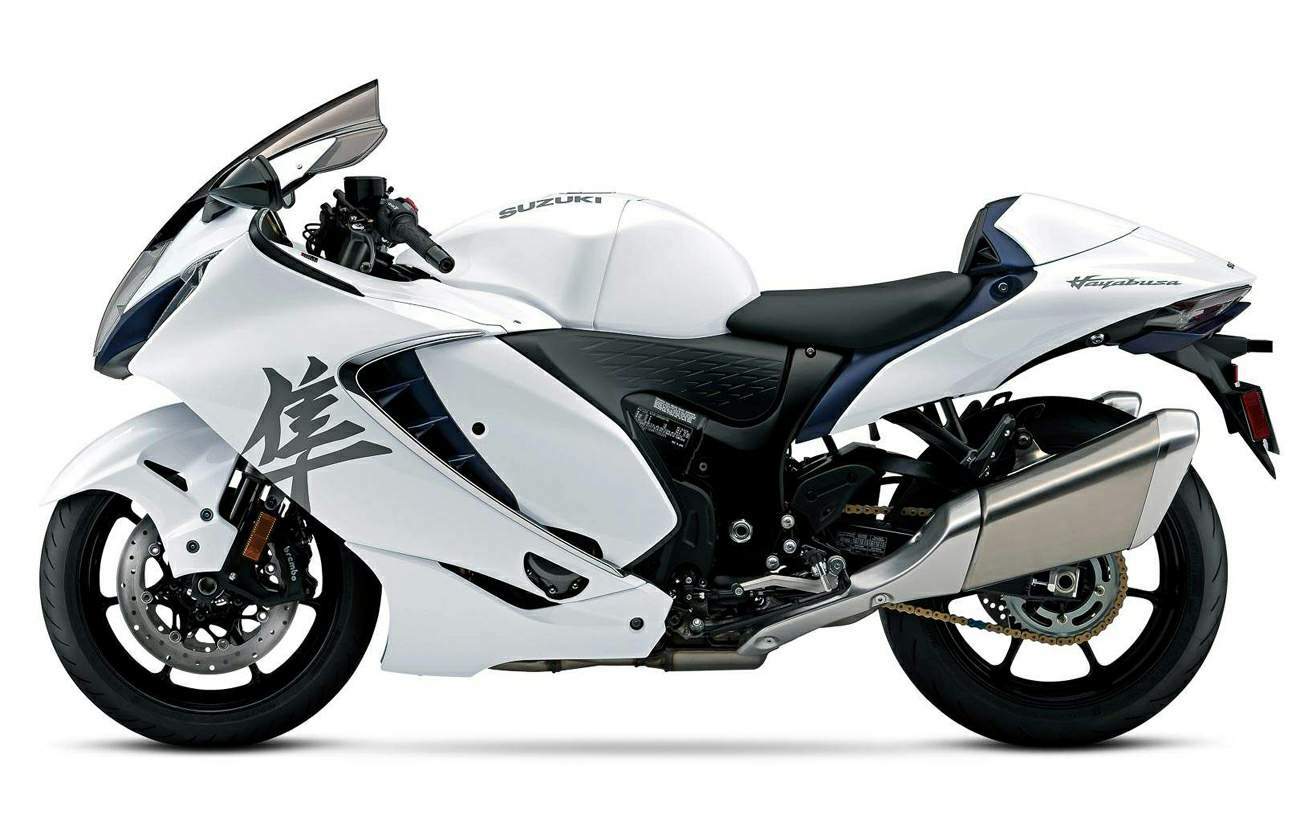

GSX 1300R Hayabusa |
| Years: |
2022 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
1340 cc / 81.8 cu-in
|
|
Bore x Stroke:
|
81 x 65 mm
|
|
Compression Ratio:
|
12.5:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Fuel injection with Ride-by-Wire throttle bodies
|
|
Ignition:
|
Electronic ignition (transistorized)
|
|
Starting:
|
Electric
|
|
Max Power:
|
187.7hp / 140kW @ 9700rpm
|
|
Max Torque:
|
150Nm / 110.6 lb-ft @ 7000rpm
|
|
Clutch:
|
Wet, multi-plate type, SCAS-equipped
|
|
Transmission:
|
6 Speed constant mesh
|
|
Final Drive:
|
Drive chain, RK GB50GSVZ4, 114L
|
|
Frame:
|
Twin-spar aluminium frame and swingarm
|
|
Front Suspension:
|
KYB inverted telescopic, coil spring, oil damped, fully adjustable
|
|
Rear Suspension:
|
KYB link type, coil spring, oil damped
|
|
Front Brakes:
|
2 x 320mm floating discs, Brembo Stylema 4 piston calipers, fully adjustable
|
|
Rear Brakes:
|
Single 260mm floating disc, Nissin 1 piston caliper, fully adjustable
|
|
ABS:
|
Standard
|
|
Wheels Front:
|
17 M/C x MT3.50, cast aluminum alloy
|
|
Wheels Rear:
|
17 M/C x MT6.00, cast aluminum alloy
|
|
Front Tyre:
|
1120/70ZR17M/C (58W), tubeless
|
|
Rear Tyre:
|
190/50ZR17M/C (73W), tubeless
|
|
Rake:
|
23°
|
|
Trail:
|
90 mm / 3.54 in
|
|
Dimensions:
|
Length: 2180mm / 85.8 in Width: 735mm / 28.9 in Weight: 1165mm / 45.9 in
|
|
Wheelbase:
|
1480 mm / 58.3in
|
|
Seat Height:
|
800 mm / 31.5 in
|
|
Ground Clearance:
|
125 mm / 4.9 in
|
|
Dry Weight:
|
220 kg / 485 lbs
|
|
Wet Weight:
|
264kg / 582 lbs
|
|
Fuel Capacity:
|
20 Litres / 5.3 US gal
|
