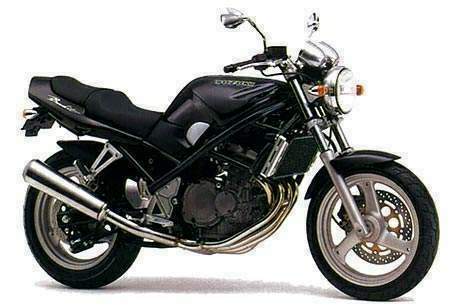

Suzuki GSF 250 Bandit (1990-91) technical specifications
Suzuki GSF 250 Bandit is produced in 1990-91. Engine is Four stroke, transverse four cylinder, DOHC, 16 valves, displacement 248 cc / 15.1 cu in , produces power 33.6 kW / 45 hp @ 14500 rpm and 25.5 Nm / 2.6 kgf-m / 18.8 lb-ft @ 10500 rpm. Suzuki GSF 250 Bandit weighs 176 kg / 387 lbs. Suzuki GSF 250 Bandit has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | GSF 250 Bandit |
| Years: | 1990-91 |
| Engine: | Four stroke, transverse four cylinder, DOHC, 16 valves |
| Capacity: | 248 cc / 15.1 cu in |
| Bore x Stroke: | 49 x 33 mm |
| Compression Ratio: | 12.5:1 |
| Cooling System: | Liquid cooled |
| Spark Plug: | NGK CR7E, CR8E, CR9E / ND U22ESR-N, U24ESR-N, U27ESR-N |
| Battery: | 12V, 6Ah |
| Ignition: | Elestronic, transistorised |
| Max Power: | 33.6 kW / 45 hp @ 14500 rpm |
| Max Torque: | 25.5 Nm / 2.6 kgf-m / 18.8 lb-ft @ 10500 rpm |
| Clutch: | Wet, multi-plate |
| Transmission: | 6 Speed, constant mesh |
| Final Drive: | Chain, DID 520V / RK 520SMOZ9 |
| Gear Ratios: | 1st 3.083 / 2nd 2.200 / 3rd 1.722 / 4th 1.450 / 5th 1.315 / 6th 1.227 |
| Primary Ratio: | 2.285:1 |
| Final Ratio: | 3.769 (13 x 49) |
| Front Suspension: | Telescopic fork, coil spring, oil damped |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Link type, coil spring, oil damped |
| Rear Wheel Travel: | 131 mm / 5.2 in |
| Front Brakes: | Single disc |
| Rear Brakes: | Single disc |
| Front Tyre: | 110/70-17 54H |
| Rear Tyre: | 140/70-17 66H |
| Steering Angle (Left and Right): | 32o |
| Rake: | 26o |
| Trail: | 101 mm / 4.0 in |
| Dimensions: | Length: 2050 mm / 80.7 in Width: 735 mm / 28.9 in Height: 1060 mm / 41.7 in |
| Wheelbase: | 1435 mm / 56.5 in |
| Ground Clearance: | 155 mm / 6.1 in |
| Seat Height: | 750 mm / 29.5 in |
| Turning Radius: | 2.9 m / 9.5 ft |
| Dry Weight: | 176 kg / 387 lbs |
| Fuel Consumption: | 2.35 L/100 km / 42.5 km/l / 100 US mpg / 120 Imp mpg |
| Fuel Capacity: | 14 L / 3.7 US gal / 3.1 Imp gal |
| Fuel Reserve: | 3.5 L / 3.7 US qt / 3.1 Imp qt |
