Technical specifications
|
| Model: |

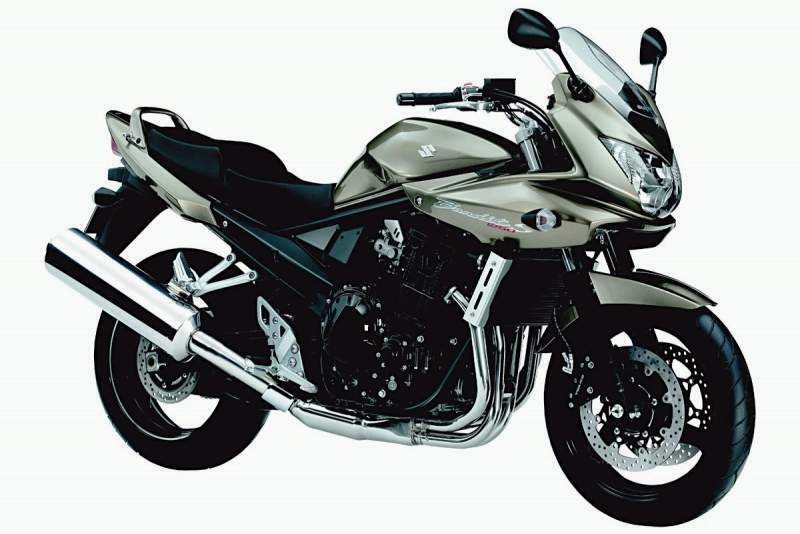

GSF 1250S Bandit ABS |
| Years: |
2011-12 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder
|
|
Capacity:
|
1254.8 cc / 76.6 cu-in
|
|
Bore x Stroke:
|
79 x 64 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.5:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Fuel Injection
|
|
Ignition:
|
Digital transistorized
|
|
Starting:
|
Electric
|
|
Max Power:
|
70.5 kW / 95.8 hp @ 7500 rpm
|
|
Max Torque:
|
108 Nm / 11.0 kgf-m / 79 lb ft @ 3700 rpm
|
|
Clutch:
|
Wet, multiple discs, hydraulic operated
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel, Double cradle frame
|
|
Front Suspension:
|
Telescopic, coil spring, oil damped
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Link type, coil spring, oil damped
|
|
Rear Wheel Travel:
|
137 mm / 5.39 in
|
|
Front Brakes:
|
2 x 310mm Discs, 6 piston calipers, ABS
|
|
Rear Brakes:
|
Single 240mm disc, ABS
|
|
Front Tyre:
|
120/70-ZR17
|
|
Rear Tyre:
|
180/55 ZR17
|
|
Rake:
|
26°
|
|
Trail:
|
107 mm / 4.2 in
|
|
Dimensions:
|
Length 2130 mm / 83.8 in Width 790 mm / 31.1 in Height 1250 mm / 49.2 in
|
|
Wheelbase:
|
1485 mm / 58.4
|
|
Seat Height:
|
785 mm - 805 mm / 30.9 in -31.6 in
|
|
Ground clearance:
|
135 mm / 5.2 in
|
|
Dry Weight:
|
236 kg / 520 lbs
|
|
Wet Weight:
|
250 kg / 551 lbs
|
|
Fuel Capacity:
|
19 Litres / 5.0 gal / 4.2 Imp gal
|
|
Reviews:
|
1000ps / MC24.no / Motorcyclist
|
