Technical specifications
|

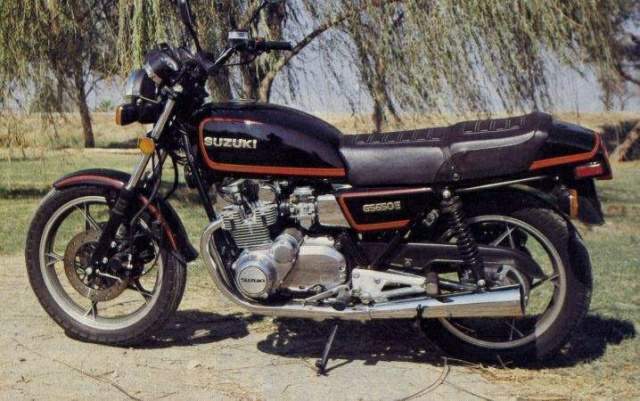

| Model: |
GS 650E |
| Years: |
1983 |
|
Engine:
|
Four stroke, transverse four cylinders, DOHC, 2 valves per cylinder.
|
|
Capacity:
|
673 cc / 41 cu in
|
|
Bore x Stroke:
|
62 x 55.8 mm
|
|
Compression Ratio:
|
9.4:1
|
|
Cooling System:
|
Air cooled
|
|
Induction:
|
4 x 32 mm Mikuni carburetors
|
|
Ignition:
|
Transistorized
|
|
Starting:
|
Electric
|
|
Max Power:
|
53.2 kW / 73 hp @ 9400 rpm
|
|
Max Torque:
|
57 Nm / 5.8 kgf-m / 42 lb-ft @ 8000 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Front Suspension:
|
35mm Kayaba fork
|
|
Front Wheel Travel:
|
150 mm / 5.9 in
|
|
Rear Suspension:
|
Dual Kayaba shocks adjustable spring preload
|
|
Rear Wheel Travel:
|
100 mm / 3.9 in
|
|
Front Brakes:
|
2 x 275mm discs, 1 piston calipers
|
|
Rear Brakes:
|
Single 275mm disc, 1 piston caliper
|
|
Front Tyre:
|
3.25 H19
|
|
Rear Tyre:
|
3.75H 18
|
|
Dry-weight:
|
217 kg / 478 lbs
|
|
Fuel Capacity:
|
16 Litres / 4.2 US gal / 3.5 Imp mpg
|
|
Consumption Average:
|
5.4 L/100 km / 18.5 km/l / 43.6 US mpg / 52 Imp mpg
|
|
Standing ¼ Mile:
|
12.7 sec / 165 km/h / 102.7 mph
|
|
Top Speed:
|
201 km/h / 125 mph
|
