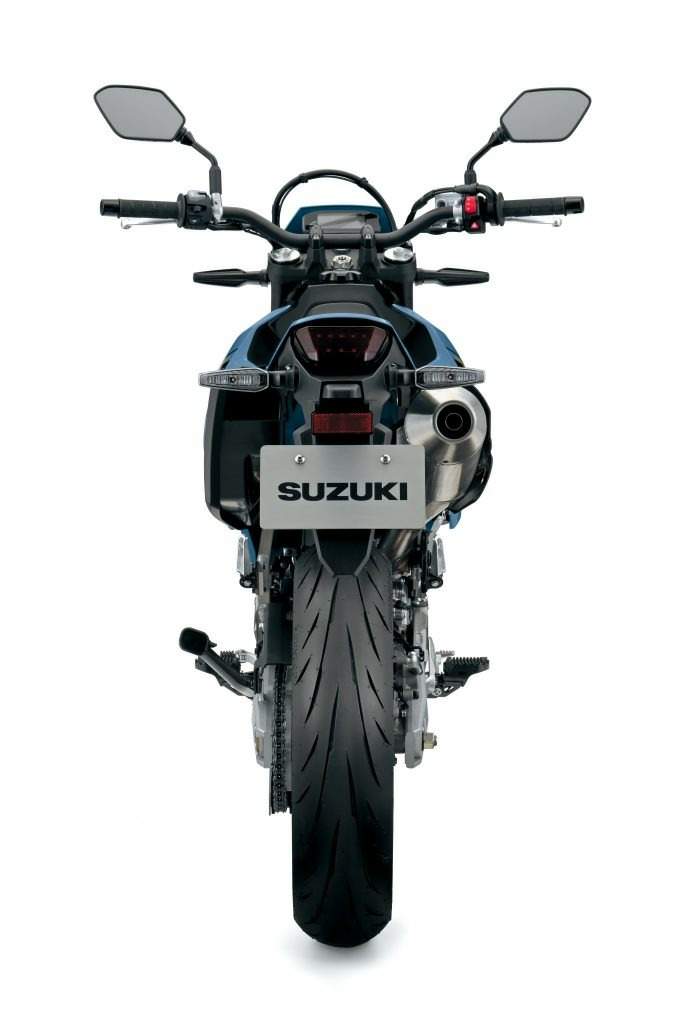

Suzuki DR-Z4SM (2025) technical specifications

Suzuki DR-Z4SM technical specifications

Suzuki DR-Z4SM is produced in 2025. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 398 cc / 24.3 cu-in , produces power 28 kW / 38 hp @ 8000 rpm and 37 Nm / 27.3 lb-ft @ 6500 rpm. Suzuki DR-Z4SM wet weight is 154 kg / 340 lbs. Suzuki DR-Z4SM has 5 photos.

Technical specifications

+ Add to 'Compare list'
Model: DR-Z4SM
Years: 2025
Engine: Four stroke, single cylinder, DOHC, 4 valve
Capacity: 398 cc / 24.3 cu-in
Bore x Stroke: 90 x 62.6 mm.
Cooling System: Liquid cooled
Compression Ratio: 11.1:1
Induction: Ride-by-wire, 42mm bore, electronic throttle body and a 10-hole fuel injector
Lubrication: Dry sump
Ignition: Digital CDI
Starting: Electric
Max Power: 28 kW / 38 hp @ 8000 rpm
Max Torque: 37 Nm / 27.3 lb-ft @ 6500 rpm
Clutch: Wet, multiple discs, cable operated
Transmission: 5 Speed
Final Drive: Chain, #520
Front Suspension: Telescopic, 49 mm, oil-damped, 11-way compression damping, adjustable spring preload
Front Wheel Travel: 290 mm / 11.4 in
Rear Suspension: Link-type, fully adjustable spring preload, 26-way compression damping
Rear Wheel Travel: 295 mm / 11.6 in
Front Brakes: Single disc
Rear Brakes: Single disc
Front Tyre: 120/70R-17M/C 58h
Rear Tyre: 140/70R-17M/C 66H
Rake: 26.5?
Trail: 95 mm / 3.74 in
Dimensions: Length 2195 mm / 86.4 in Width 885 mm / 34.8 in. Height 1190 mm / 46.9 in
Wheelbase: 1465 mm / 57.7 in
Seat Height: 890 mm / 35.0 in
Ground Clearance: 260 mm / 10.2 in
Wet Weight: 154 kg / 340 lbs
Fuel Capacity: 8.7 Litres / 2.3 US gal
